Home
>>
Daewoo
>>
2000
>>
Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Central Door Locking System
Central Door Locking System

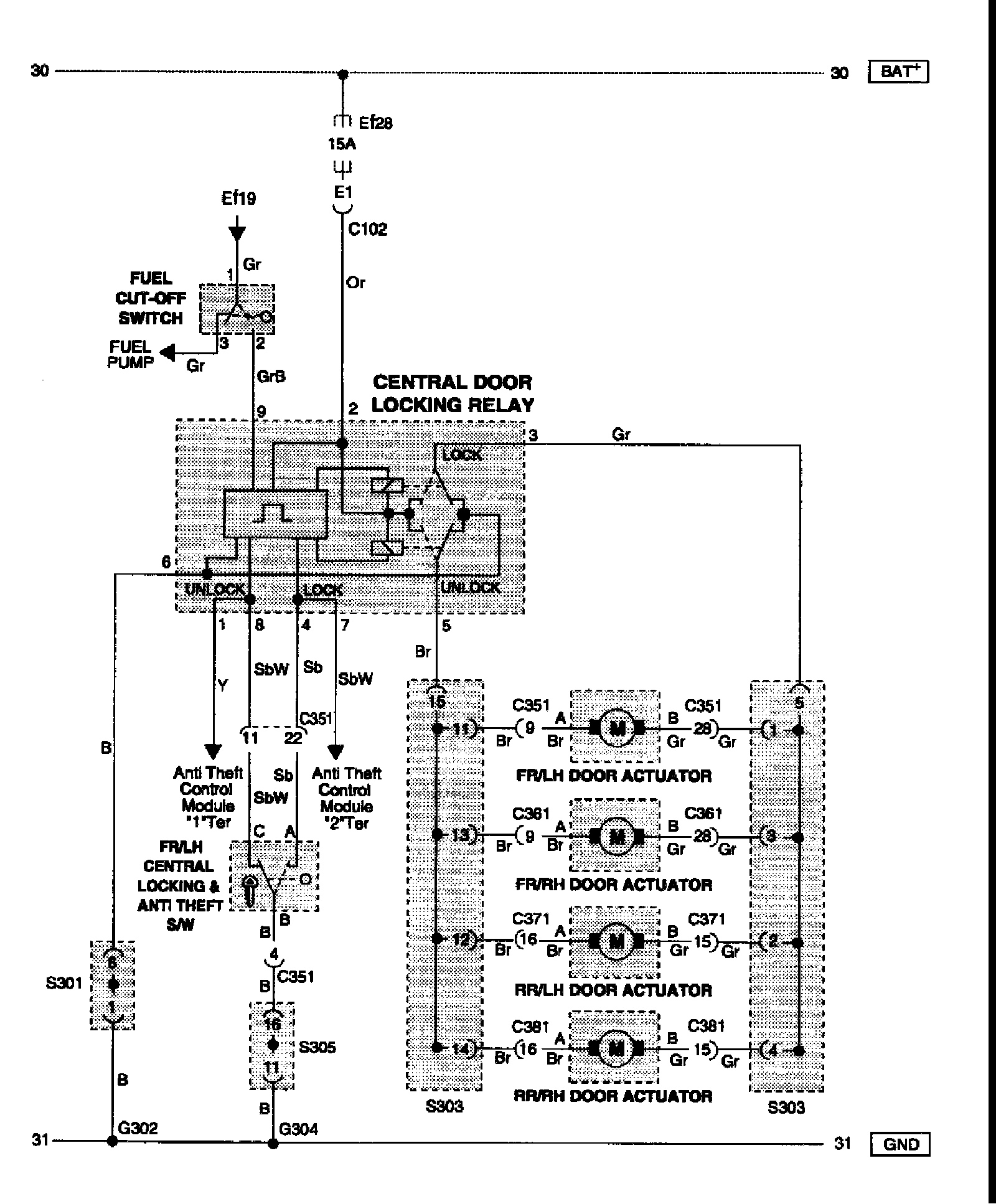

Wiring Diagram:
