Air Conditioner Compressor Circuit
Air Conditioner Compressor Circuit

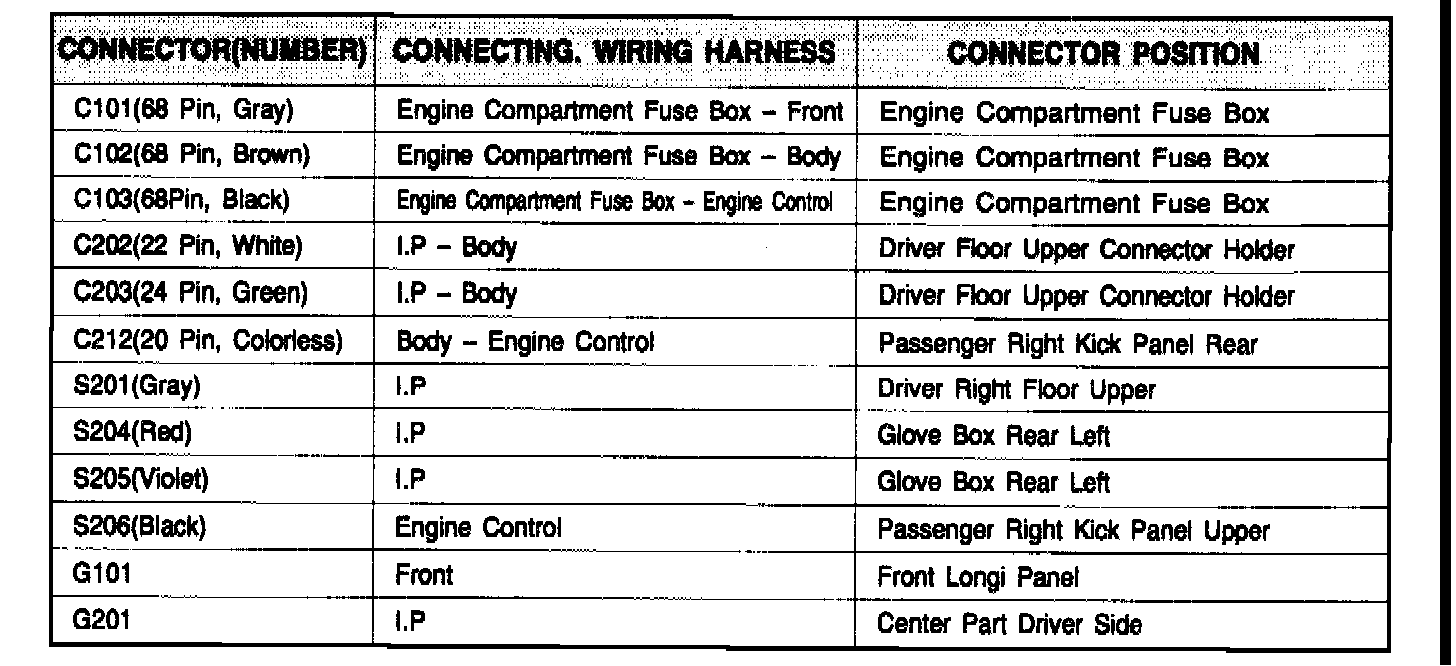

Connector Information:
Position Of Connectors And Grounds (W/H Instrument Panel):
