Air Conditioner Control Switch & Blower Motor Circuit

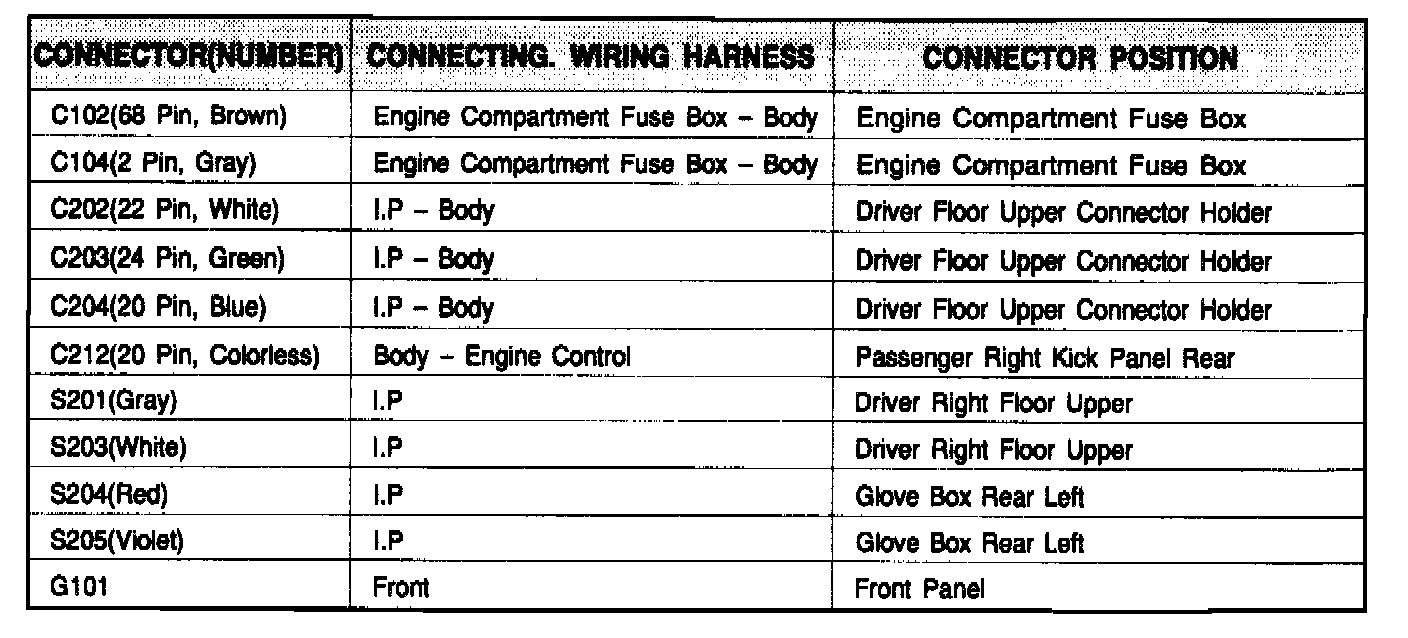

Connector Information:

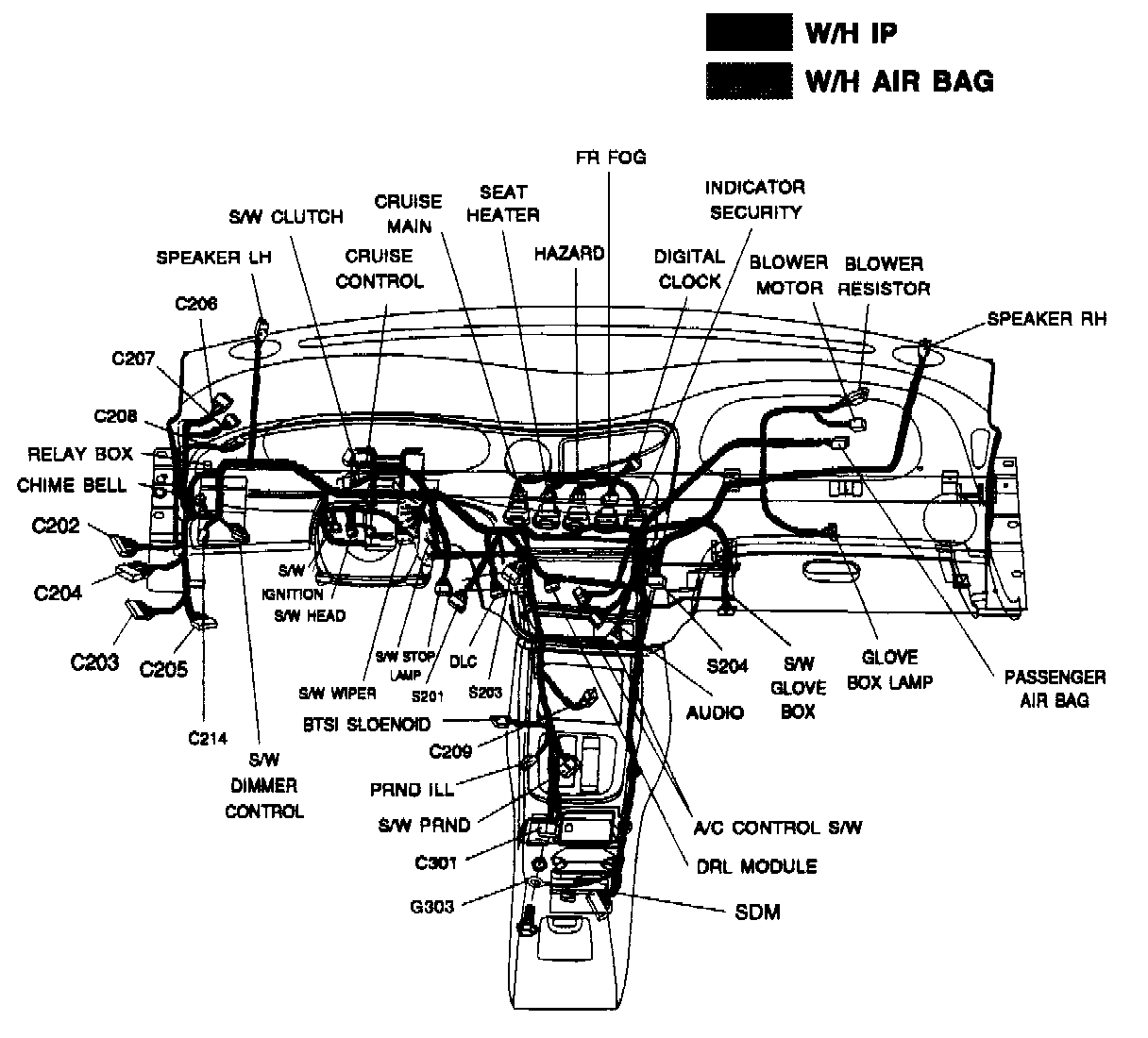

Position Of Connectors And Grounds (W/H Instrument Panel):
