Instrument Cluster Replacement

Removal Procedure




1. Remove the instrument cluster trim panel.

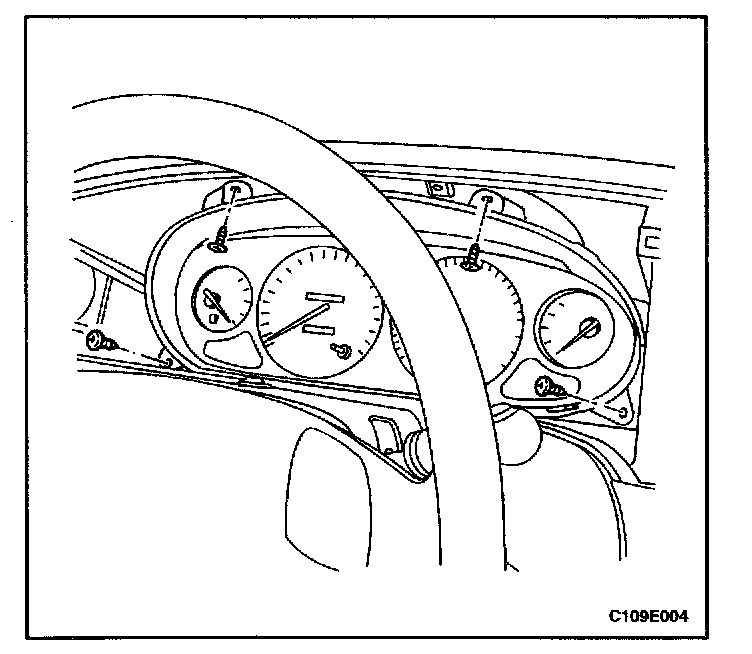

2. Remove the screws and the instrument cluster.

Installation Procedure

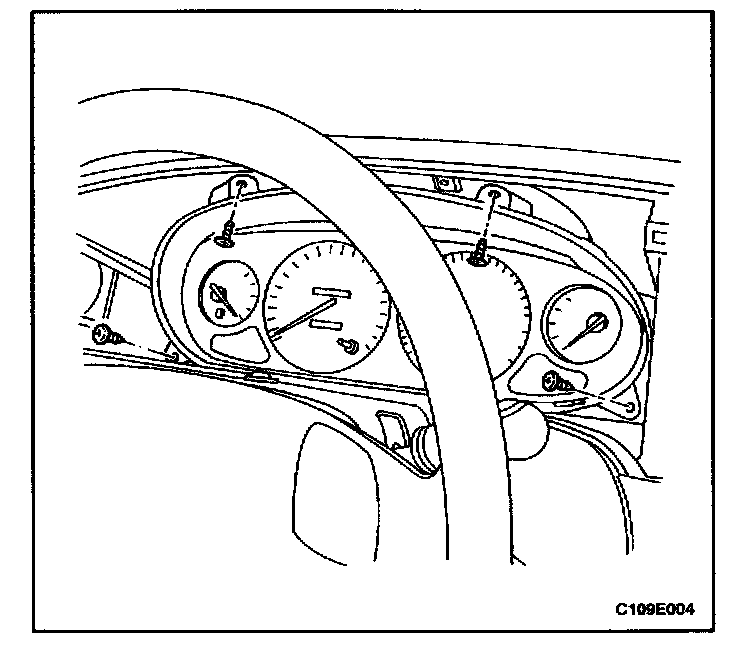

1. Install the instrument cluster with the screws.

Tighten
Tighten the instrument cluster screws to 3 N.m (27 lb.in).

2. Install the instrument cluster trim panel.
