Brake Light Switch: Service and Repair

Removal Procedure
1. Turn the stoplamp switch connector assembly clockwise and remove it from the brake pedal bracket.





2. Separate the stoplamp switch from the connector.

Installation Procedure

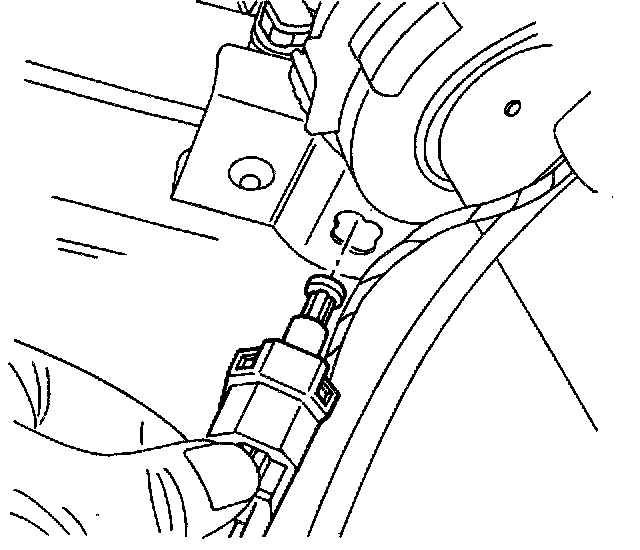

1. Place the stoplamp switch into the connector.





2. Twist the stoplamp switch connector assembly into the brake pedal bracket hole.
