Headlamp Removal and Installation

Removal Procedure




1. Disconnect the negative battery cable.

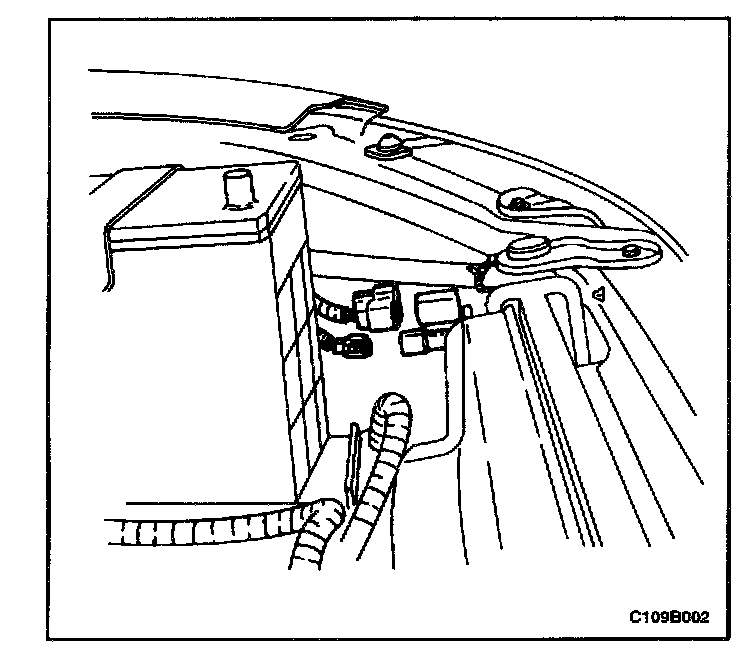

2. Remove the bolts and the headlamp assembly.




3. Disconnect the headlamp assembly electrical connectors.




4. Remove the cap that conceals the headlamp bulb.
5. Disconnect the headlamp bulb electrical connector.
6. Remove the headlamp bulb.

Installation Procedure




1. Install the replacement headlamp bulb.
2. Connect the headlamp bulb electrical connector.
3. Install the cap that conceals the headlamp bulb.




4. Connect the headlamp assembly electrical connectors.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




5. Install the headlamp assembly with the bolts.

Tighten
Tighten the headlamp assembly bolts to 4 N.m (35 lb.in).

6. Connect the negative battery cable.
