Front Turn Signal Lamp Removal and Installation

Removal Procedure




1. Disconnect the negative battery cable.

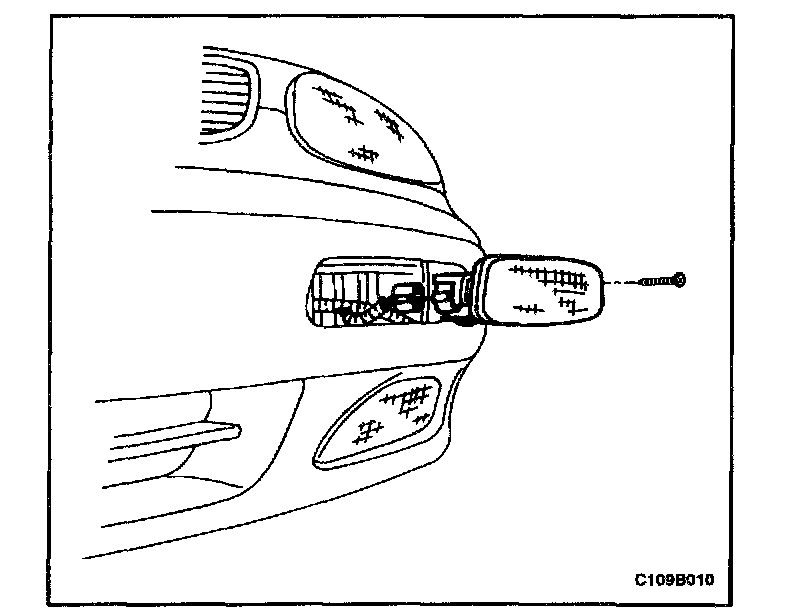

2. Remove the screw and the front turn signal lamp.
3. Disconnect the electrical connector.
4. Twist and remove the bulb from the front turn signal lamp.

Installation Procedure




1. Insert and twist to install the replacement bulb into the front turn signal lamp.
2. Connect the electrical connector.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

3. Install the front turn signal lamp with the screw.

Tighten
Tighten the front turn signal lamp screw to 2 N.m (18 lb.in).

4. Connect the negative battery cable.
