Home >> Daewoo >> 2000 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Power and Ground Distribution >> Electrical Accessory Panel >> Application and ID

Electrical Accessory Panel: Application and ID

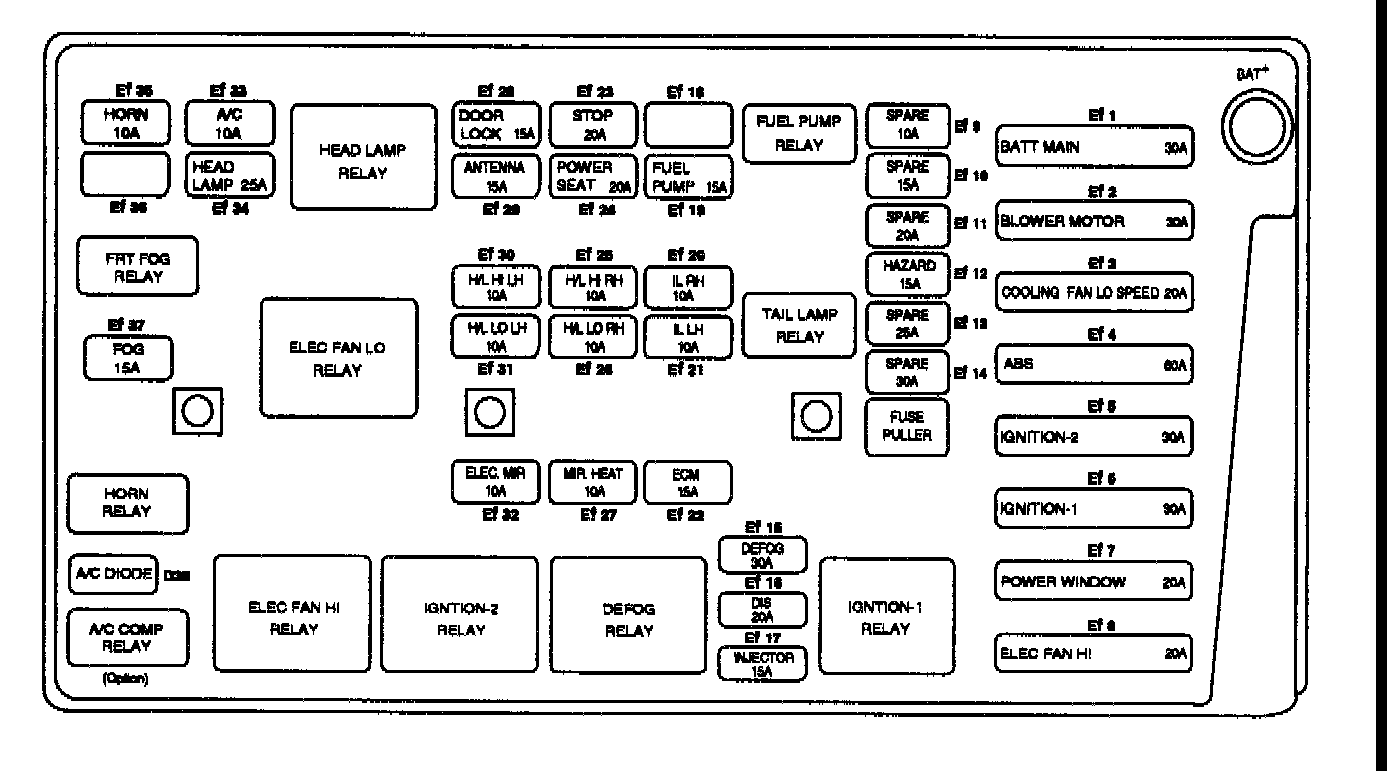

Engine Compartment Relay and Fuse Box - Front View:

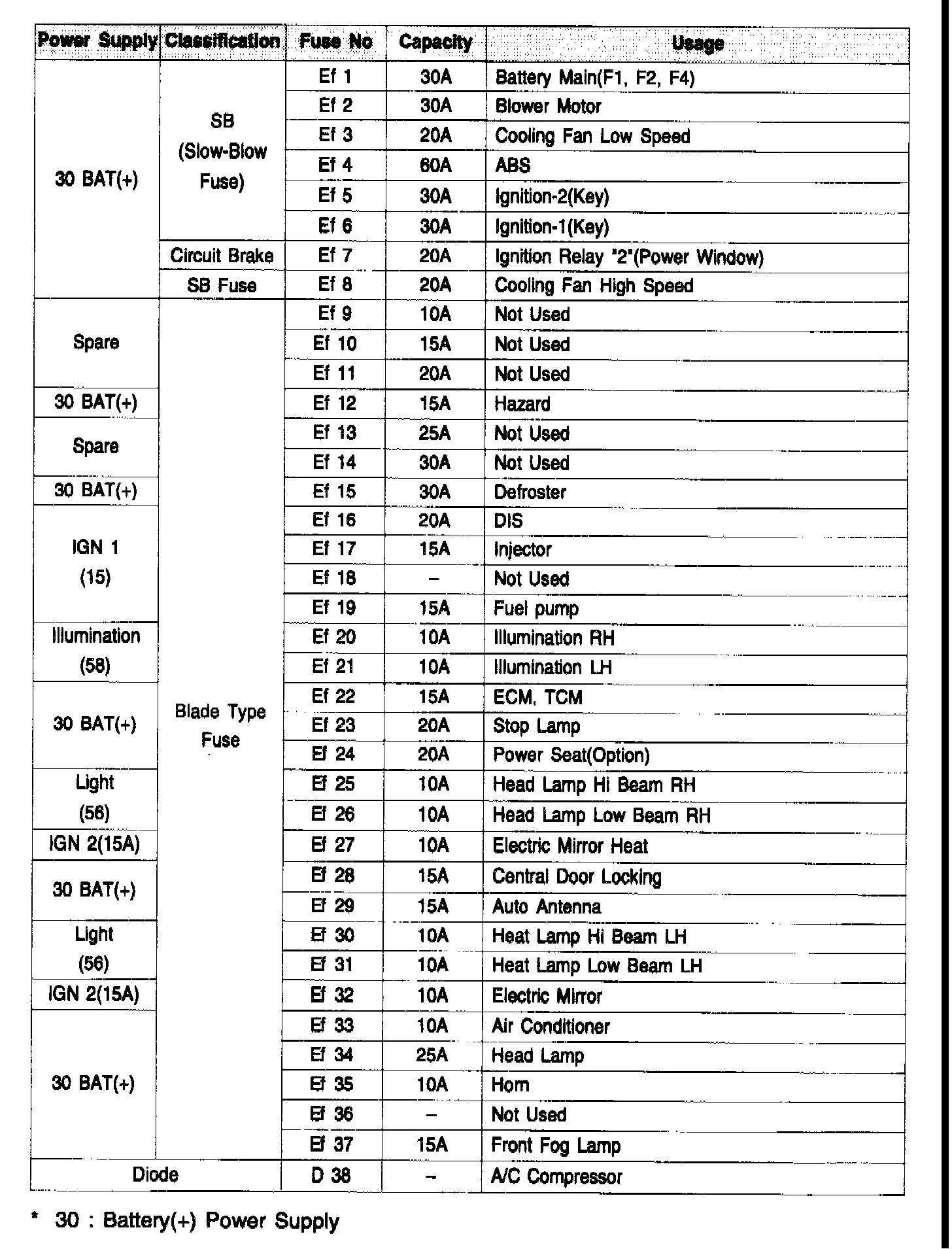

Usage Of Fuses In Engine Compartment Fuse Box:
