Indicators (Cruise/MIL), Engine Temp Warning Lamp & DLC Ckts
Indicators (Cruise/MIL), Engine Temp Warning Lamp & DLC Ckts
Connector Identification Symbol & PIN Number Position:

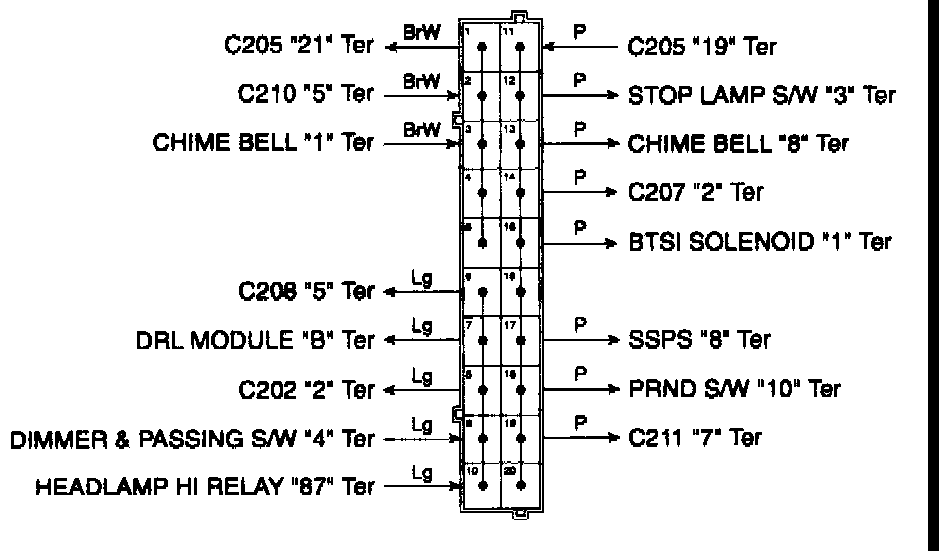

Splice Pack S201 (Gray):

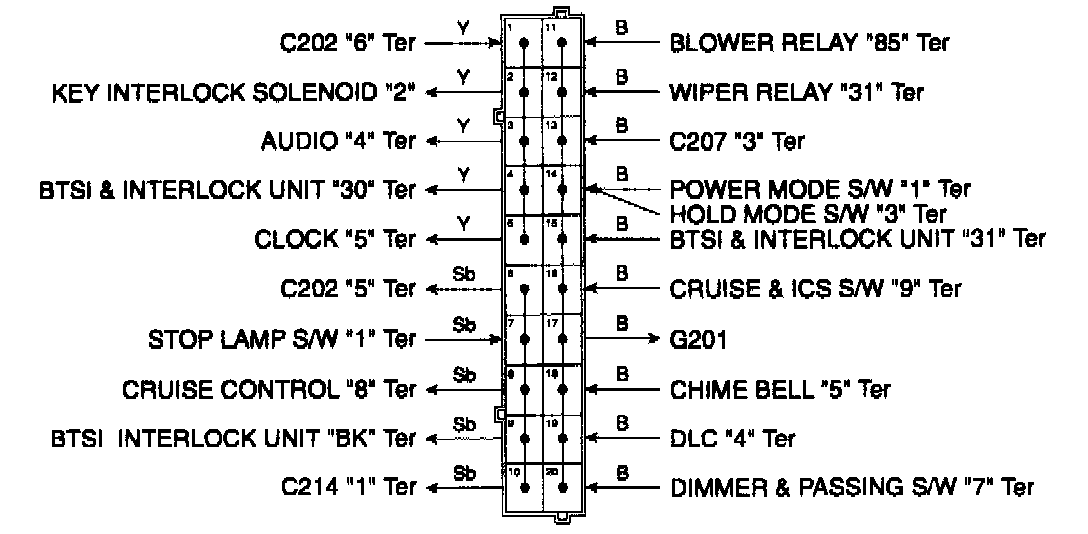

Splice Pack S202 (White):
Splice Pack S203 (White):
