Sensors (CMP, Pre/Post-O2), EVAP Solenoids, EGR, PRNDL Switch
Sensors (CMP, Pre/Post-O2), EVAP Solenoids, EGR, PRNDL Switch

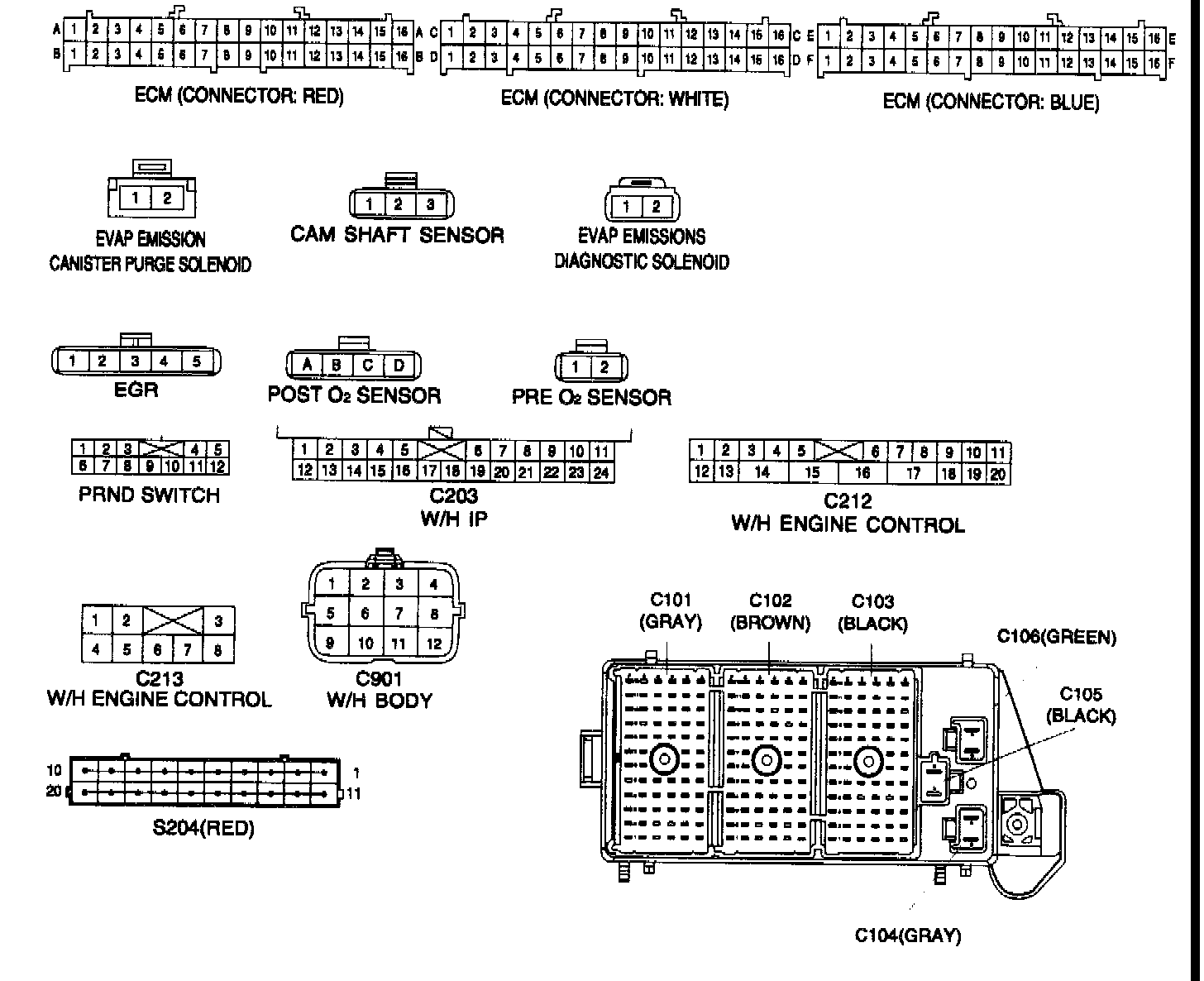

Connector Identification Symbol & PIN Number Position:
Splice Pack S204 (Red):
