Indicators (Cruise/MIL), Engine Temp Warning Lamp & DLC Ckts
Indicators (Cruise/MIL), Engine Temp Warning Lamp & DLC Ckts

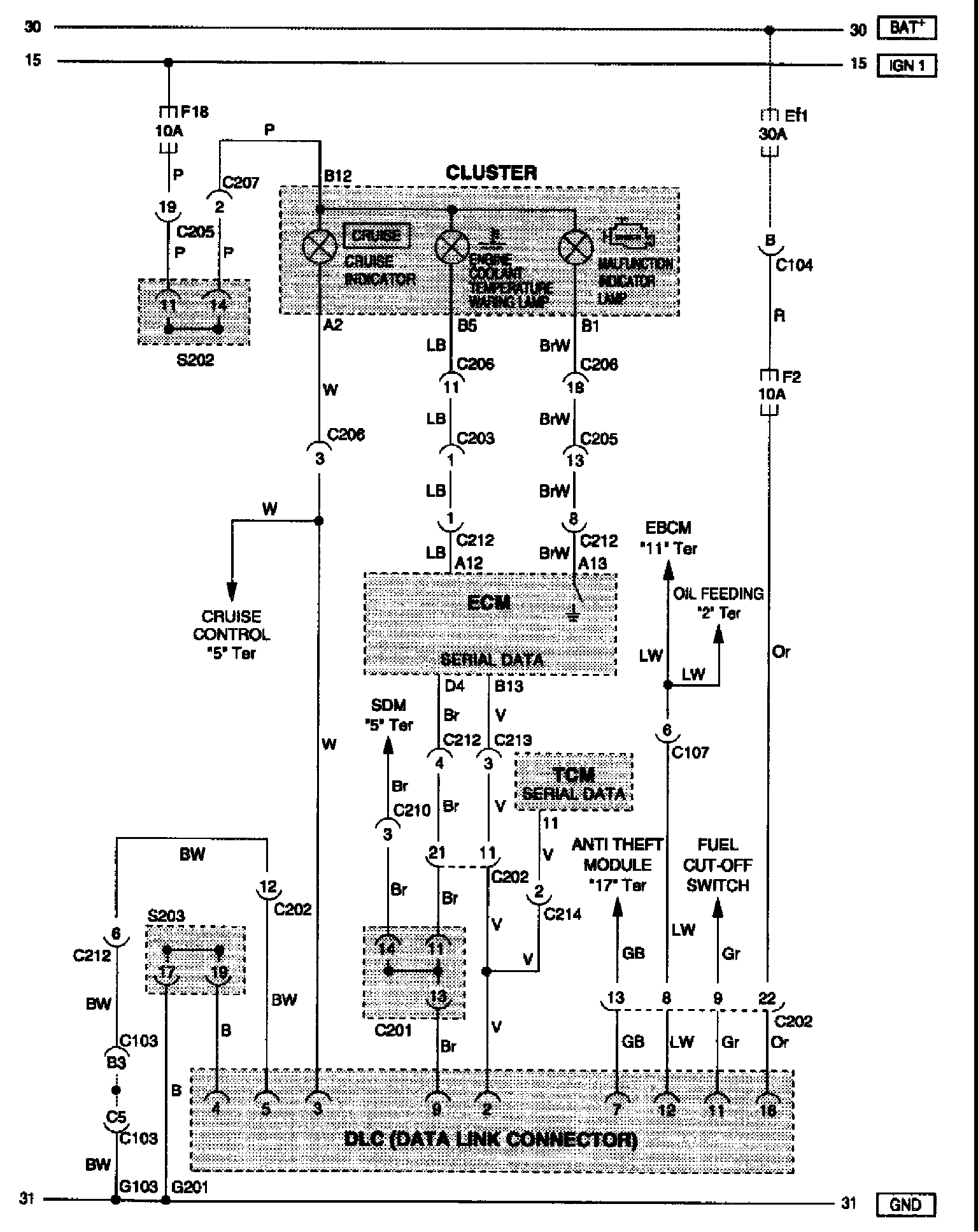

Wiring Diagram:
