Evaporative Emissions System: Diagrams

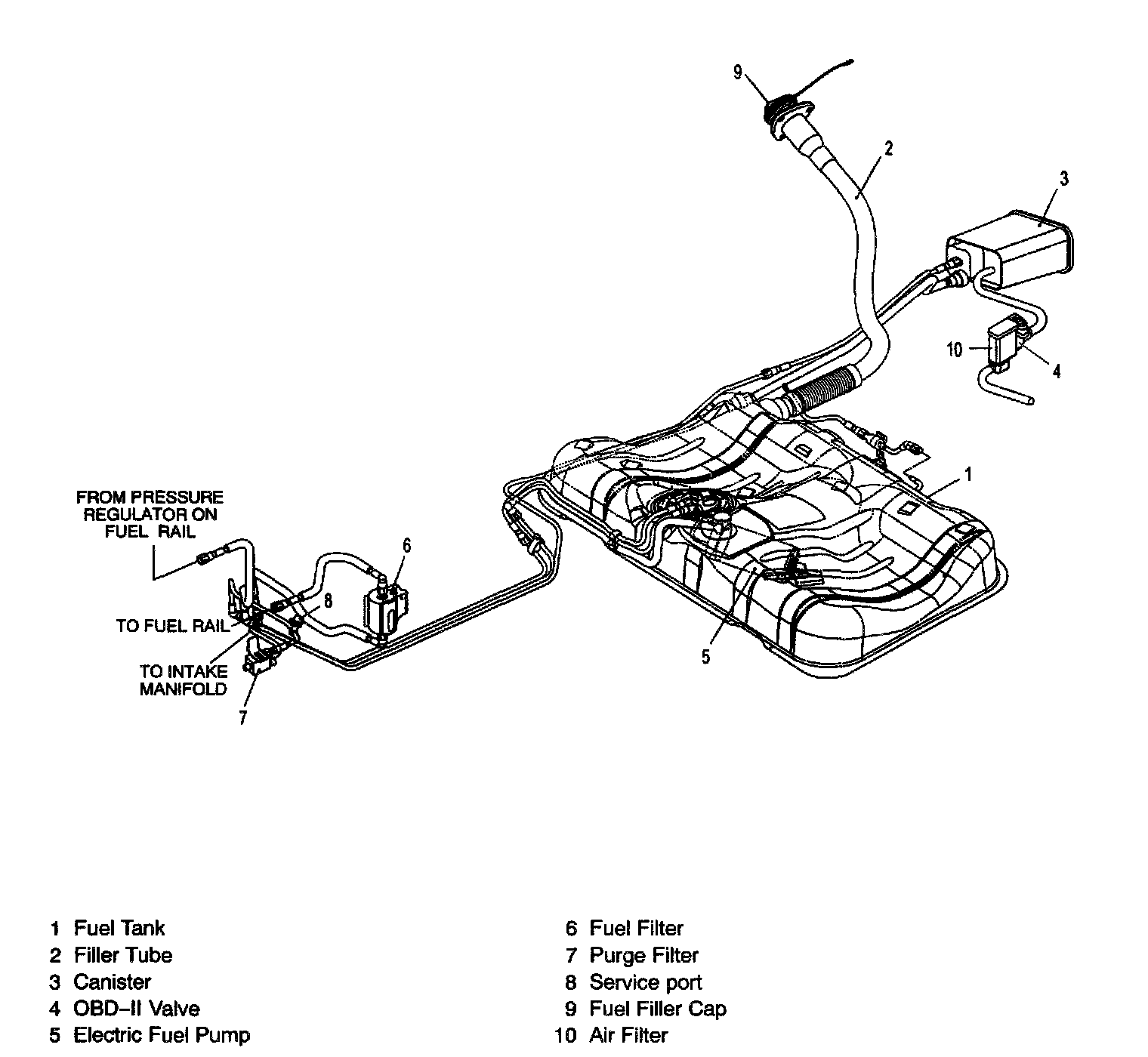

Component Locator:



Schematic Of On Board Refueling Vapor Recovery System:
