Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Locations
>>
Splice Locations
Splice Locations

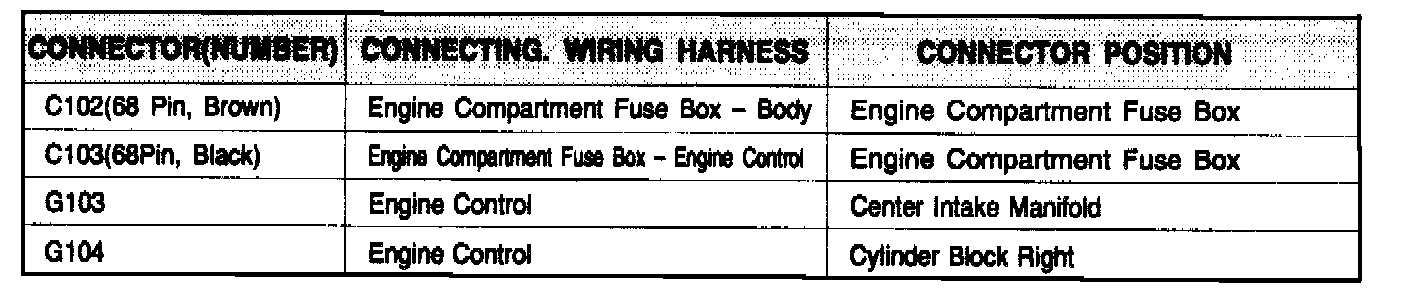

Connector Information:

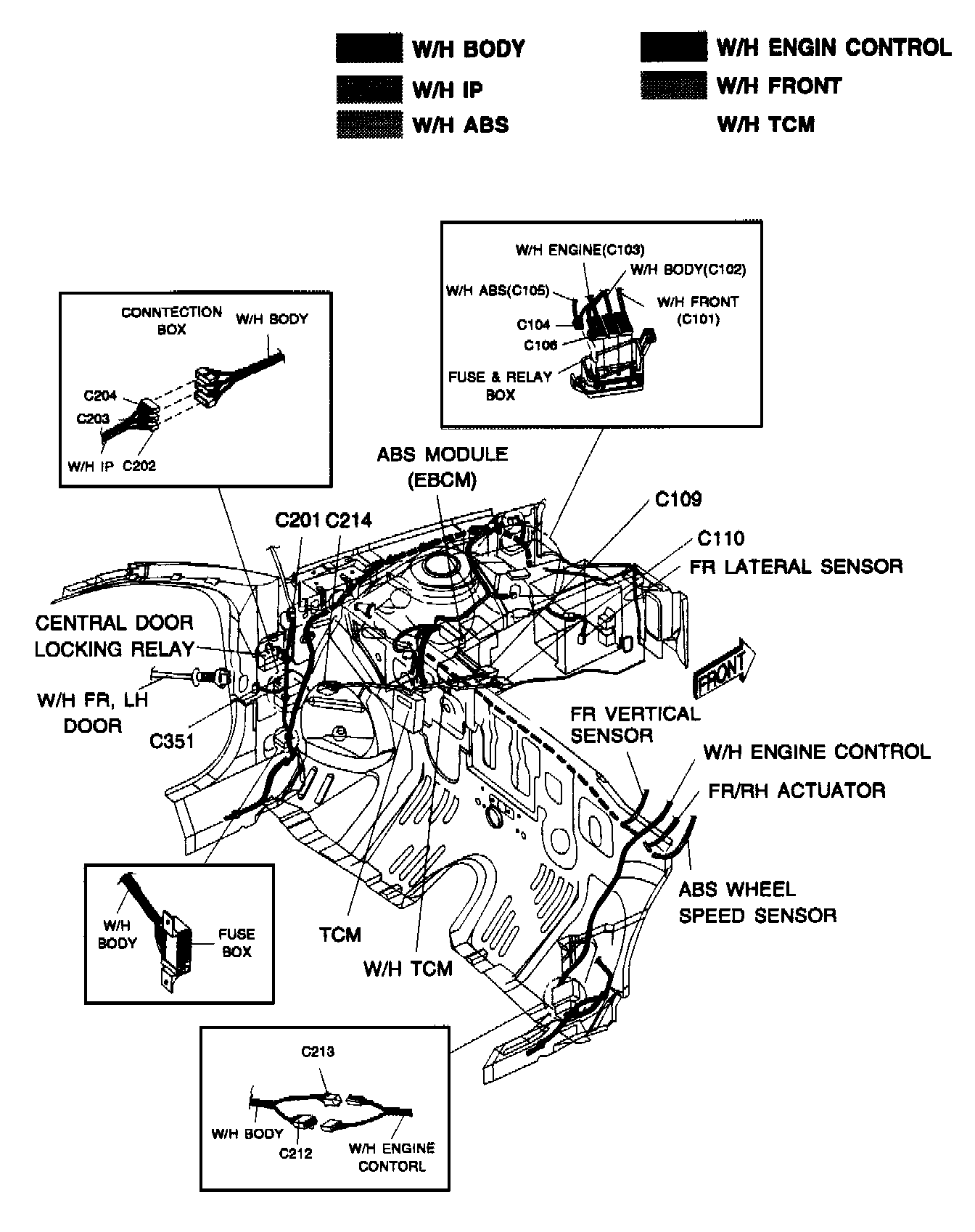

Position Of Connectors And Grounds (W/H Body, ABS & TCM):

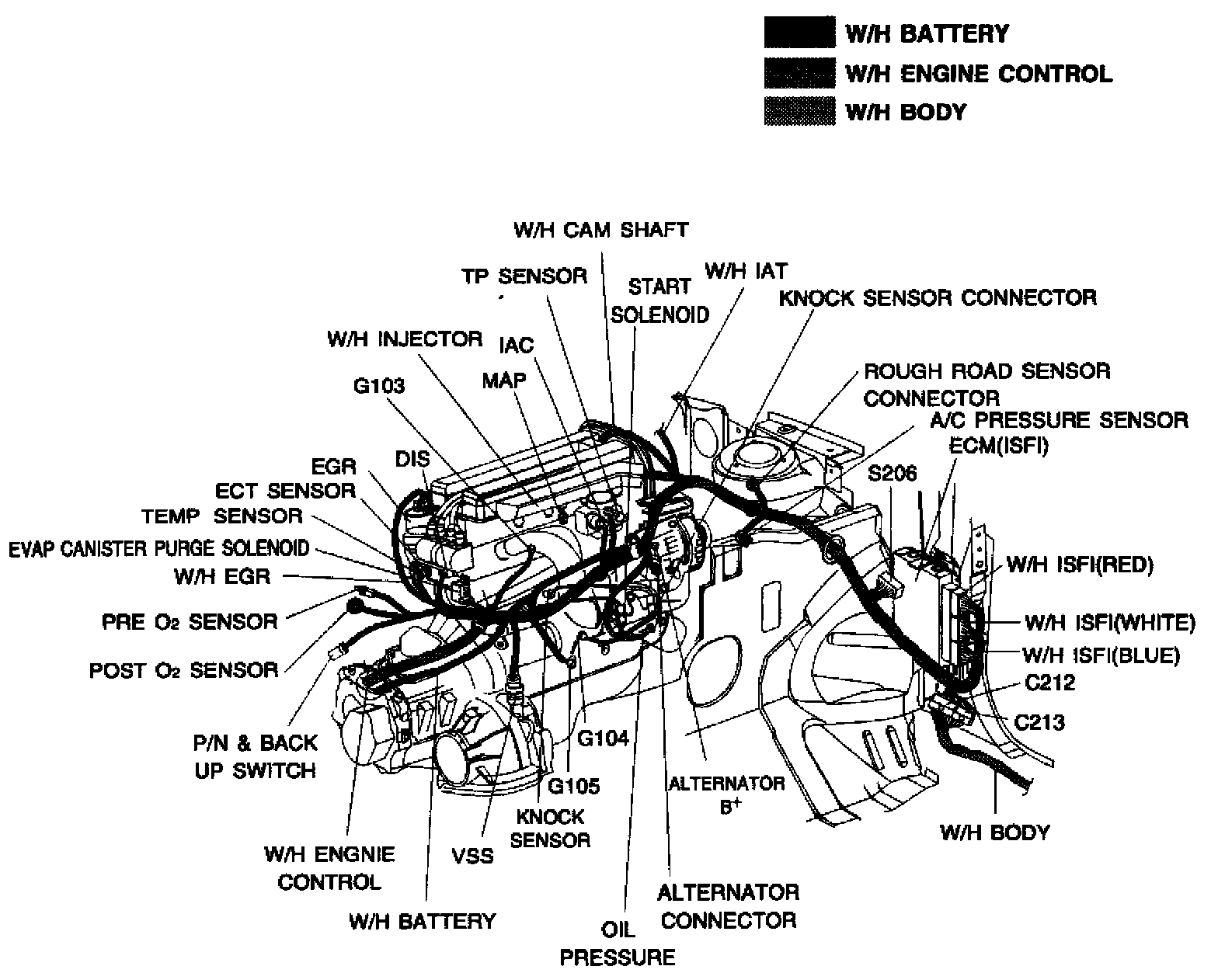

Position Of Connectors And Grounds (W/H Engine Control):
