Speed Sensitive Power Steering System

OPERATING WITH FULL ASSIST AT ALL TIMES

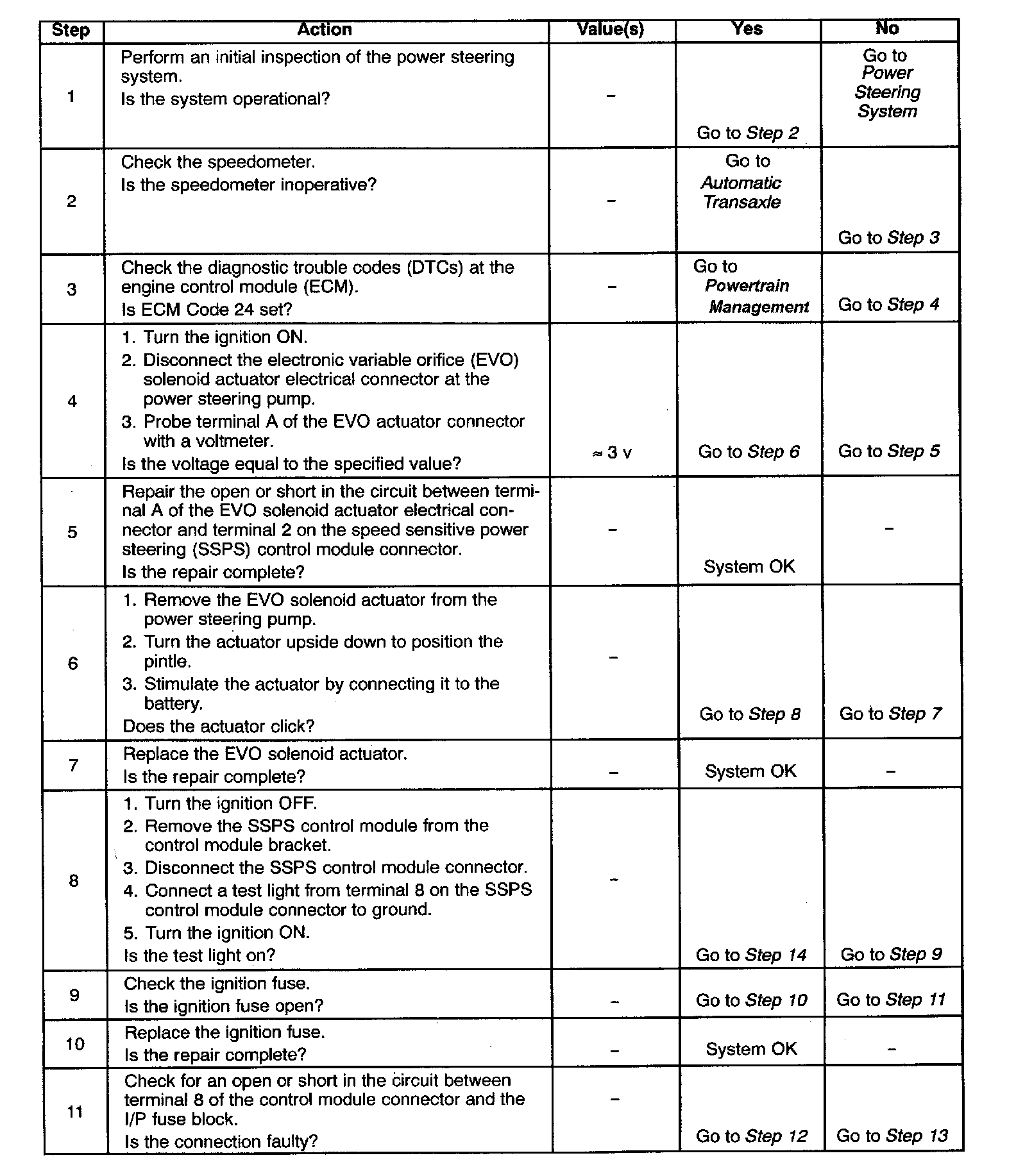

Part 1 of 3

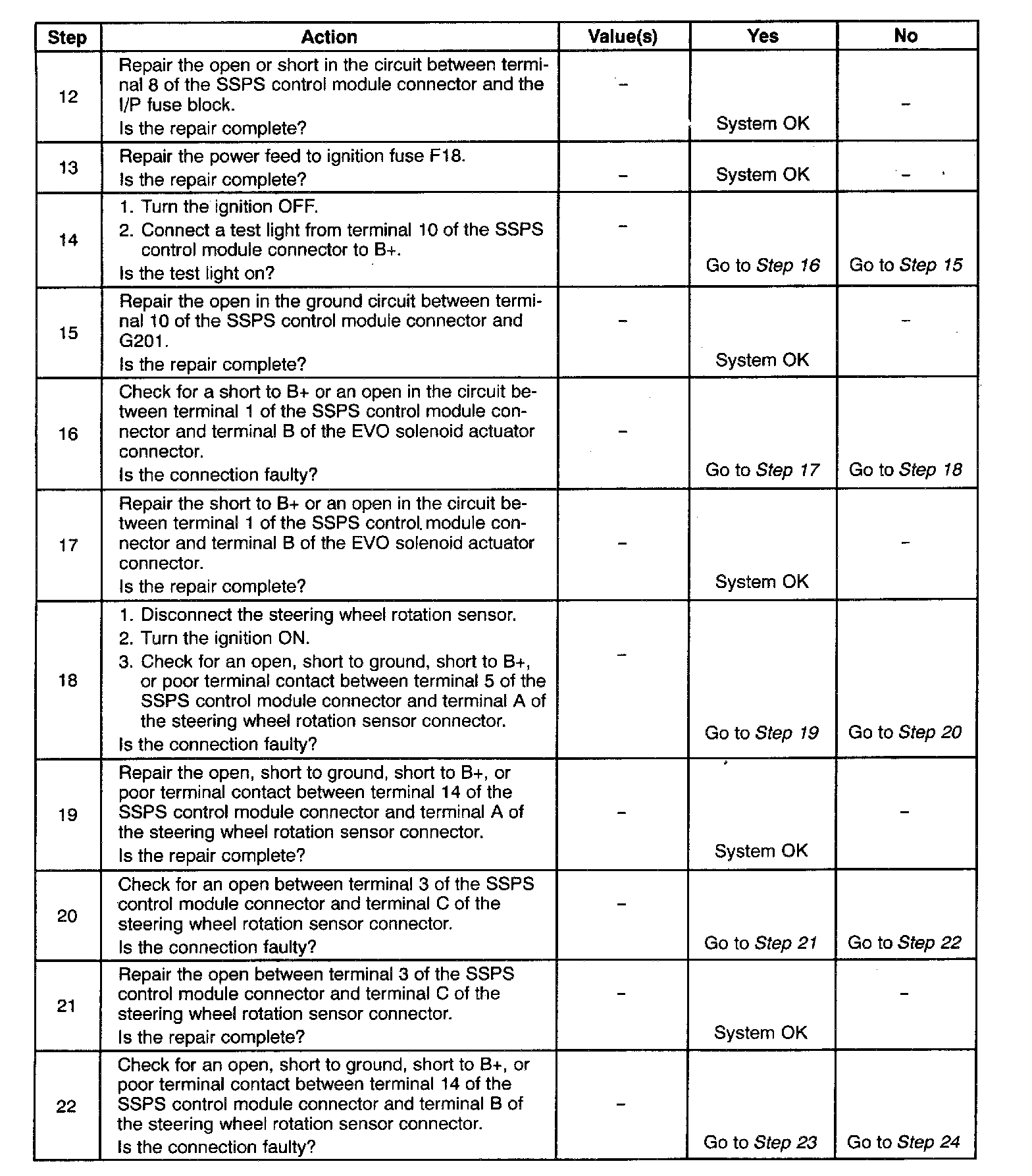

Part 2 of 3

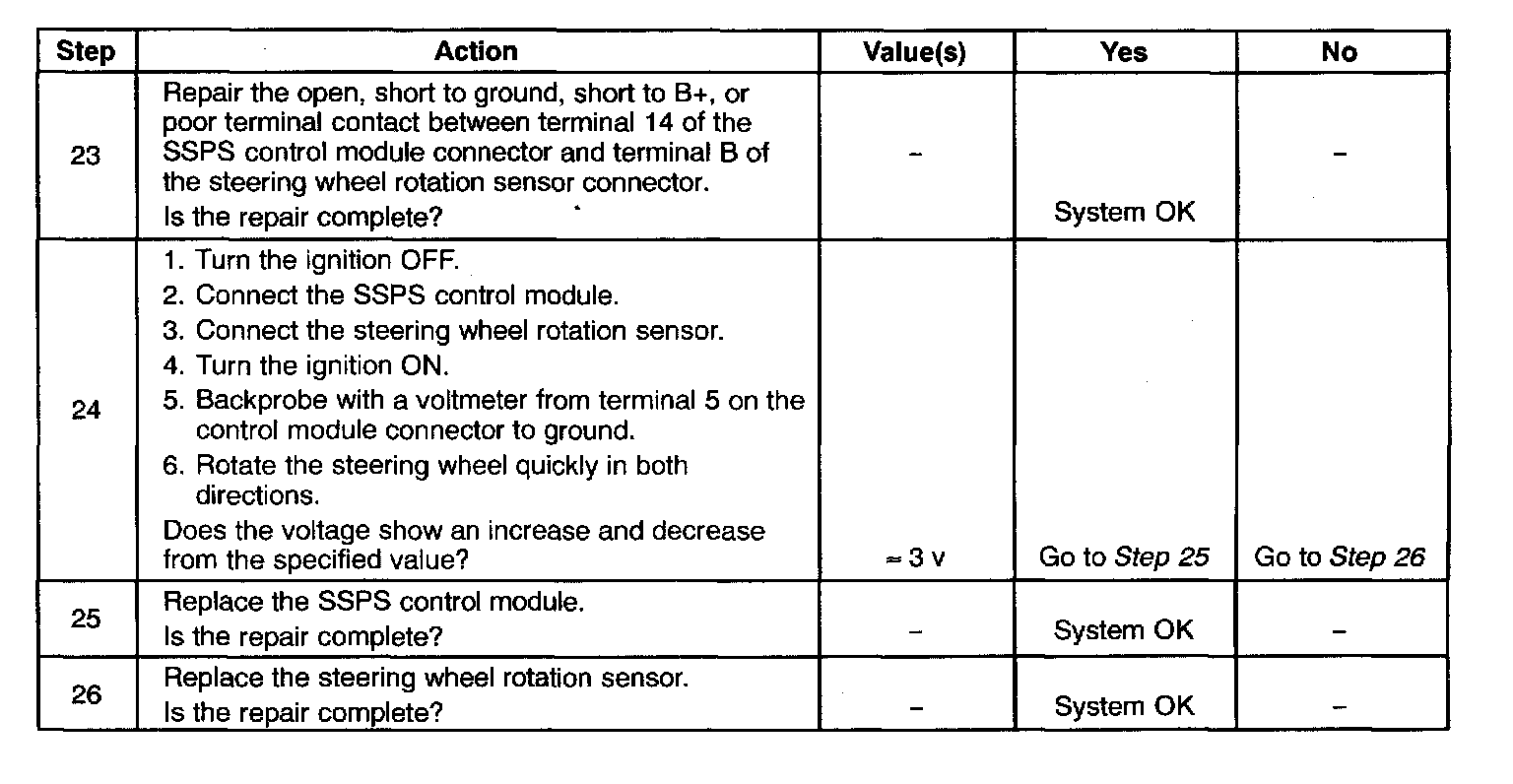

Part 3 of 3

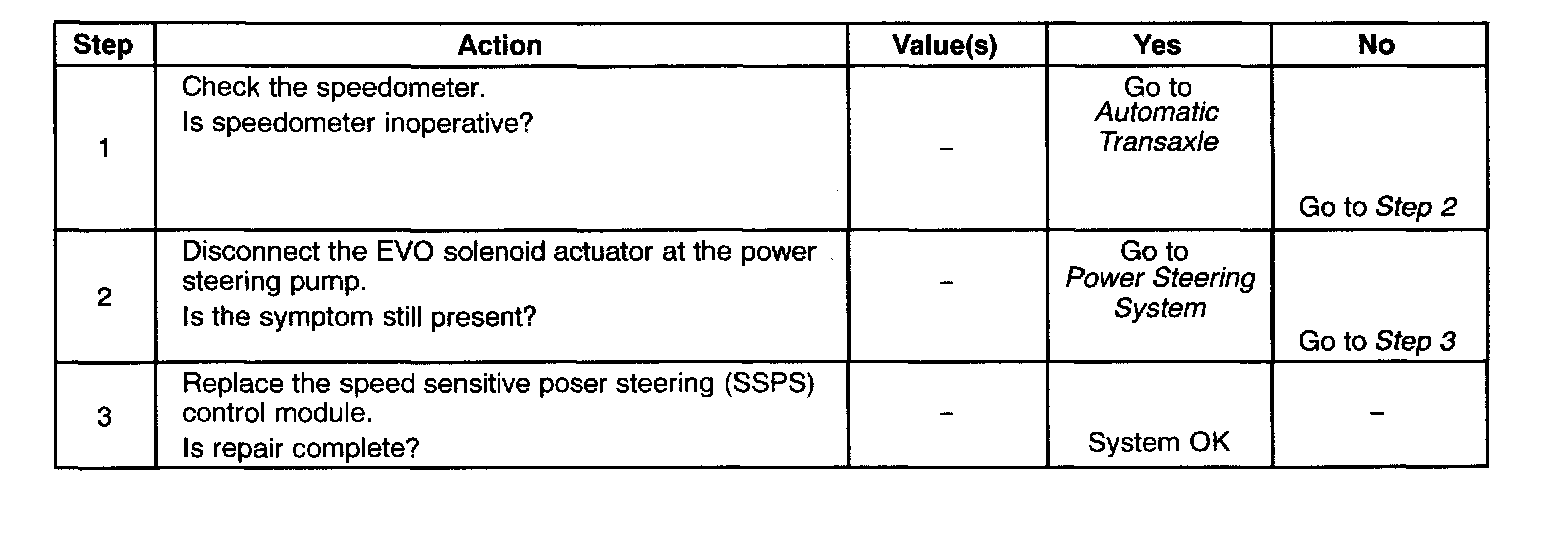

SPEED SENSITIVE POWER STEERING SYSTEM OPERATING WITH DECREASED ASSIST AT ALL TIMES
