Windshield Washer Reservoir: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.

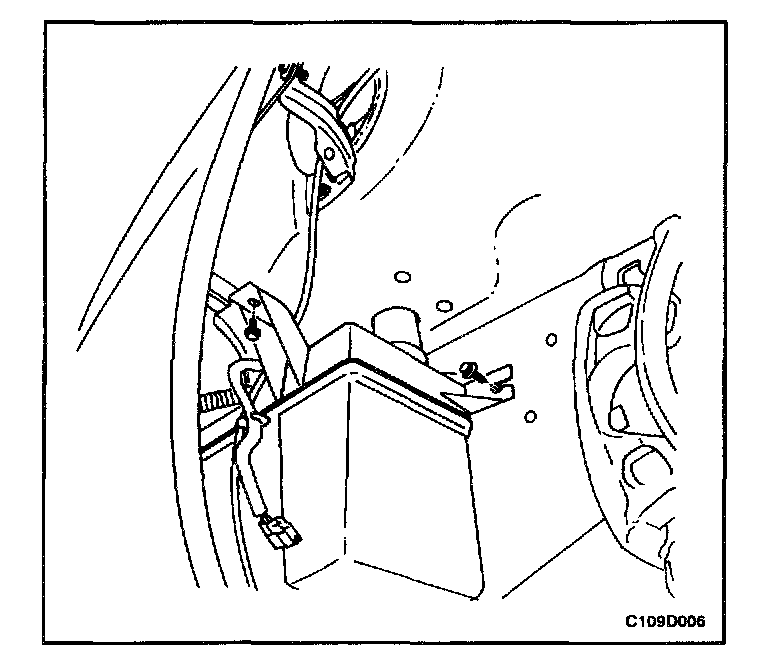

2. Remove the front left wheel.
3. Remove the front wheel well splash shield.

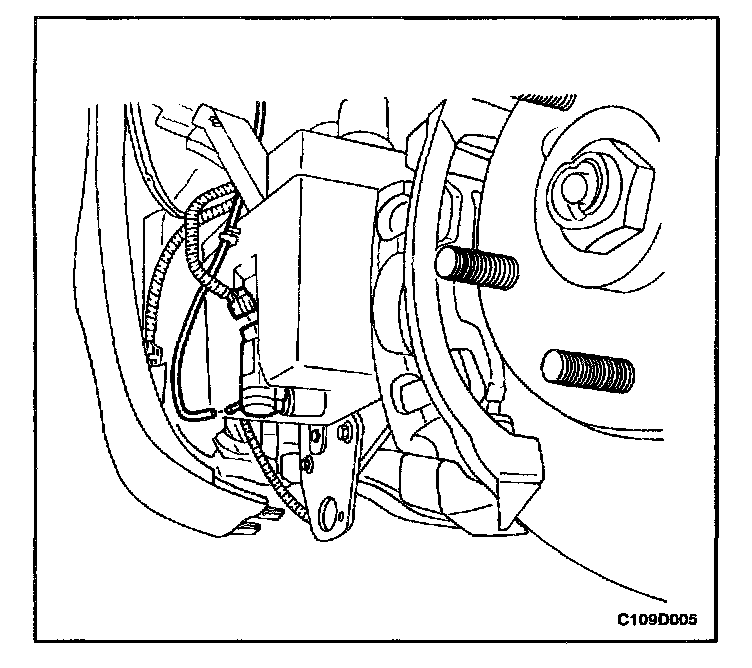

4. Disconnect the washer hose from the washer pump.
5. Disconnect the reservoir pump electrical connector.




6. Remove the bolts and the reservoir.

Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

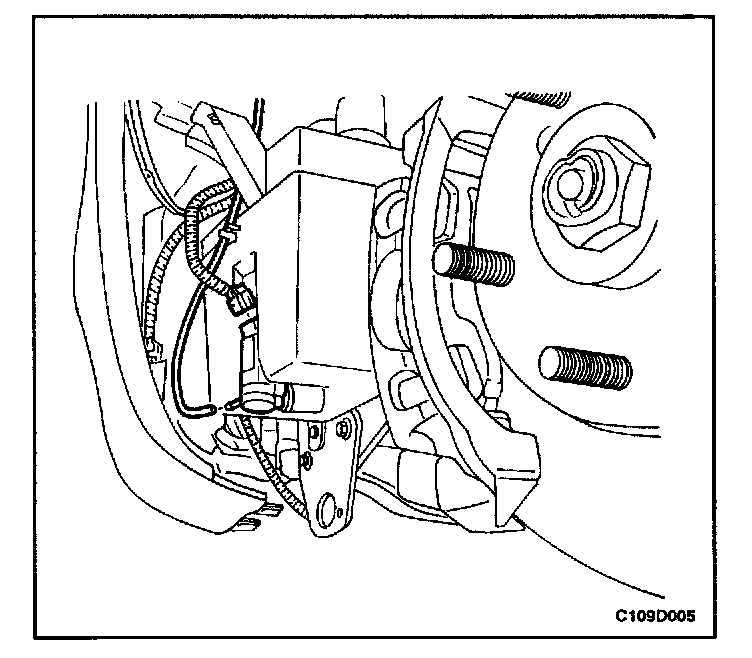

1. Install the reservoir with the bolts.

Tighten
Tighten the washer fluid reservoir bolts to 9 N.m (80 lb.in).




2. Connect the reservoir pump electrical connector.
3. Connect the washer hose to the washer pump.
4. Install the front wheel well splash shield.
5. Install the front left wheel.
6. Connect the negative battery cable.
