Audible Warning Device
Audible Warning Device
Connector Identification Symbol & PIN Number Position:

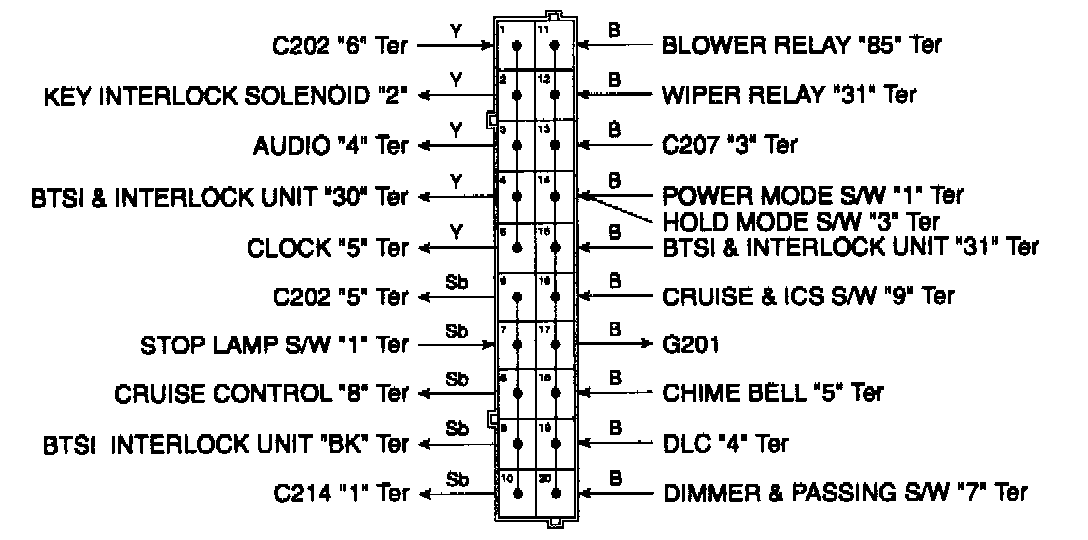

Splice Pack S202 (White):
Splice Pack S203 (White):

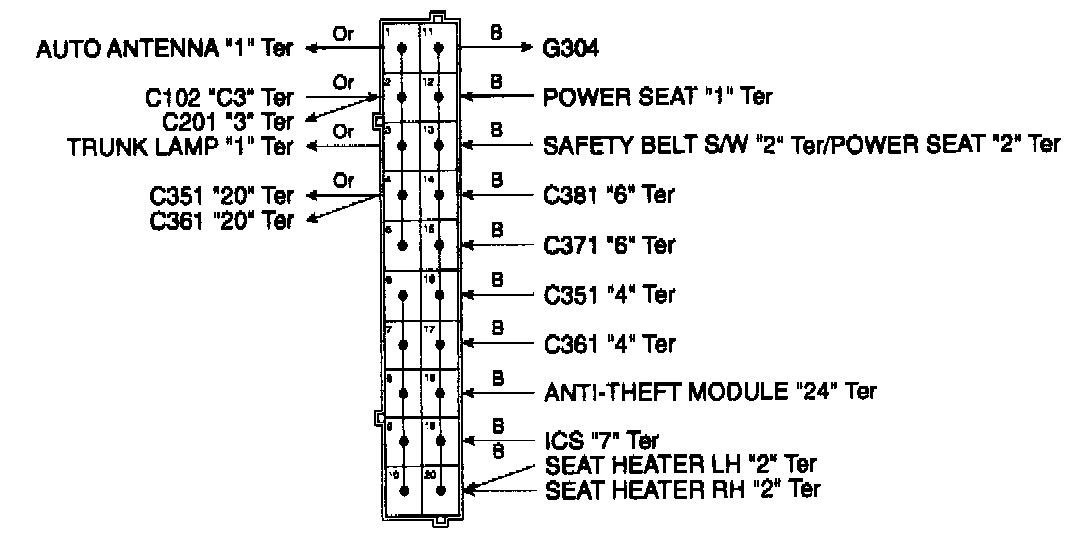

Splice Pack S205 (Violet):
Splice Pack S305 (White):
