Repair and Diagnosis: Application and ID

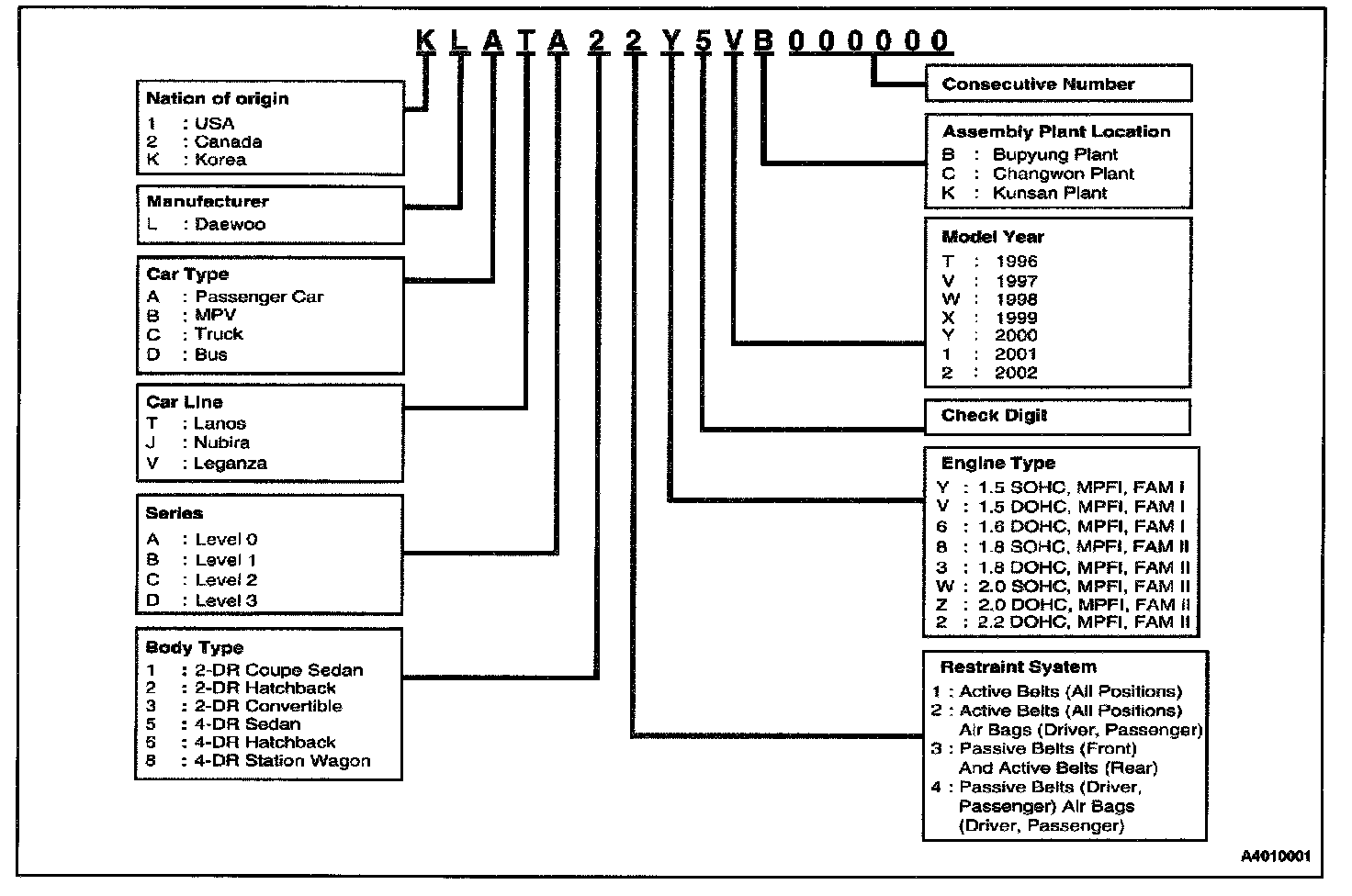

Passenger Car Vehicle Identification Number:

Certificate Plate:

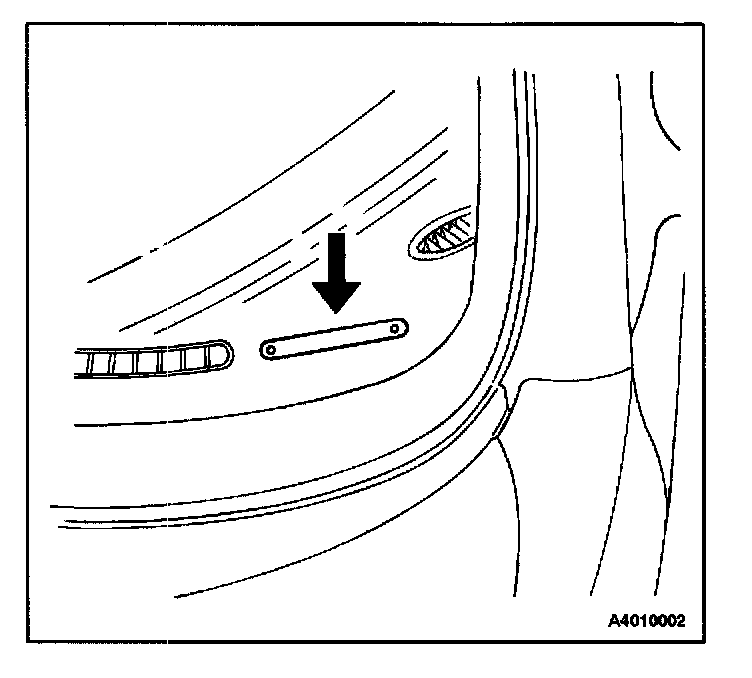

VIN Plate Location
The vehicle identification number (VIN) plate is attached to the top of the left-side of the instrument panel.

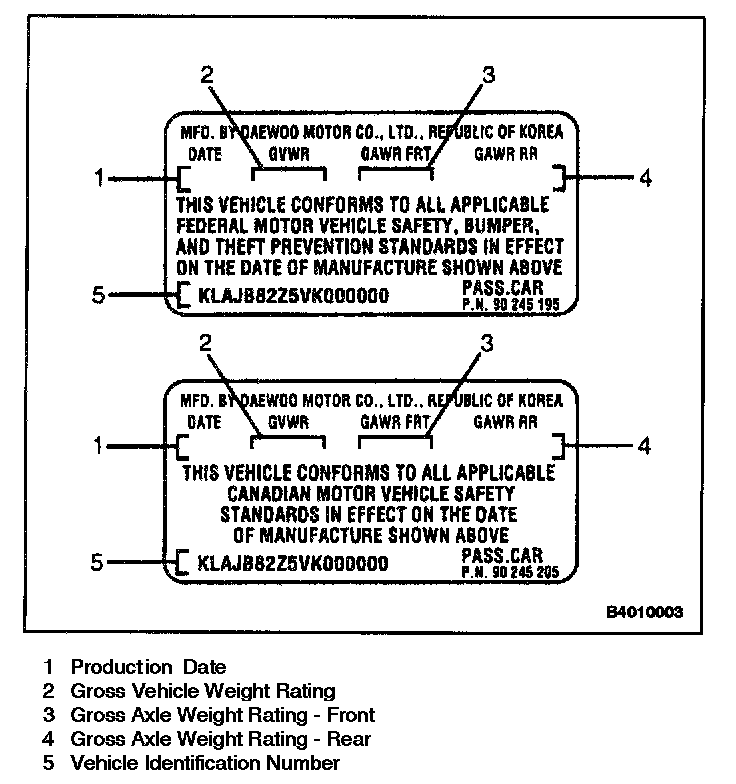

Certification Label
The Certification Label is attached to the driver's side B pillar near door strike.

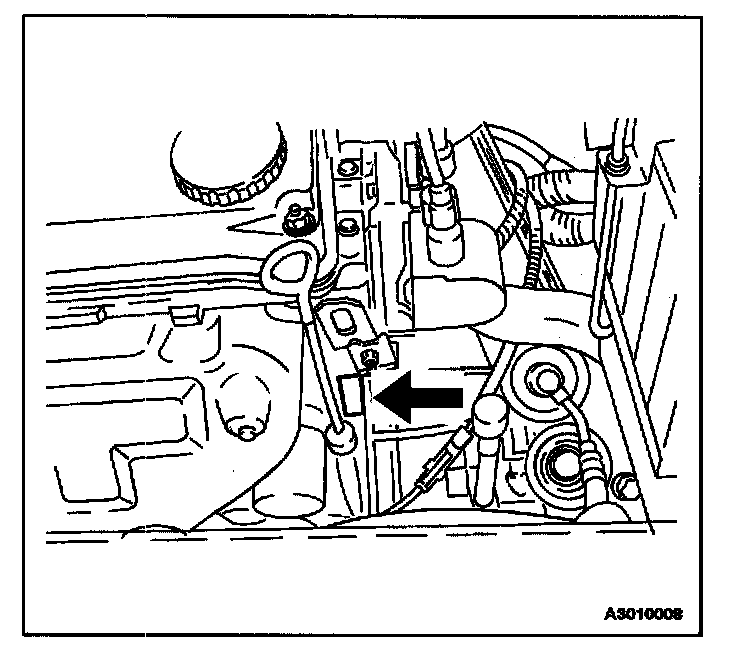

Engraved VIN Location
The vehicle identification number (VIN) is engraved in the top of the bulkhead, next to the ABS module.

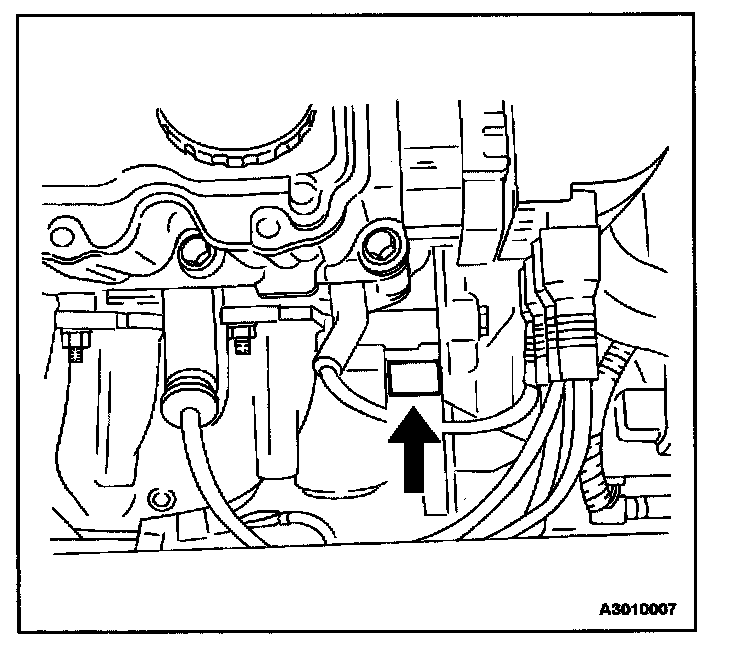

Engine Number Location - SOHC
The engine number is stamped on the cylinder block under the No.4 exhaust manifold of the engine.

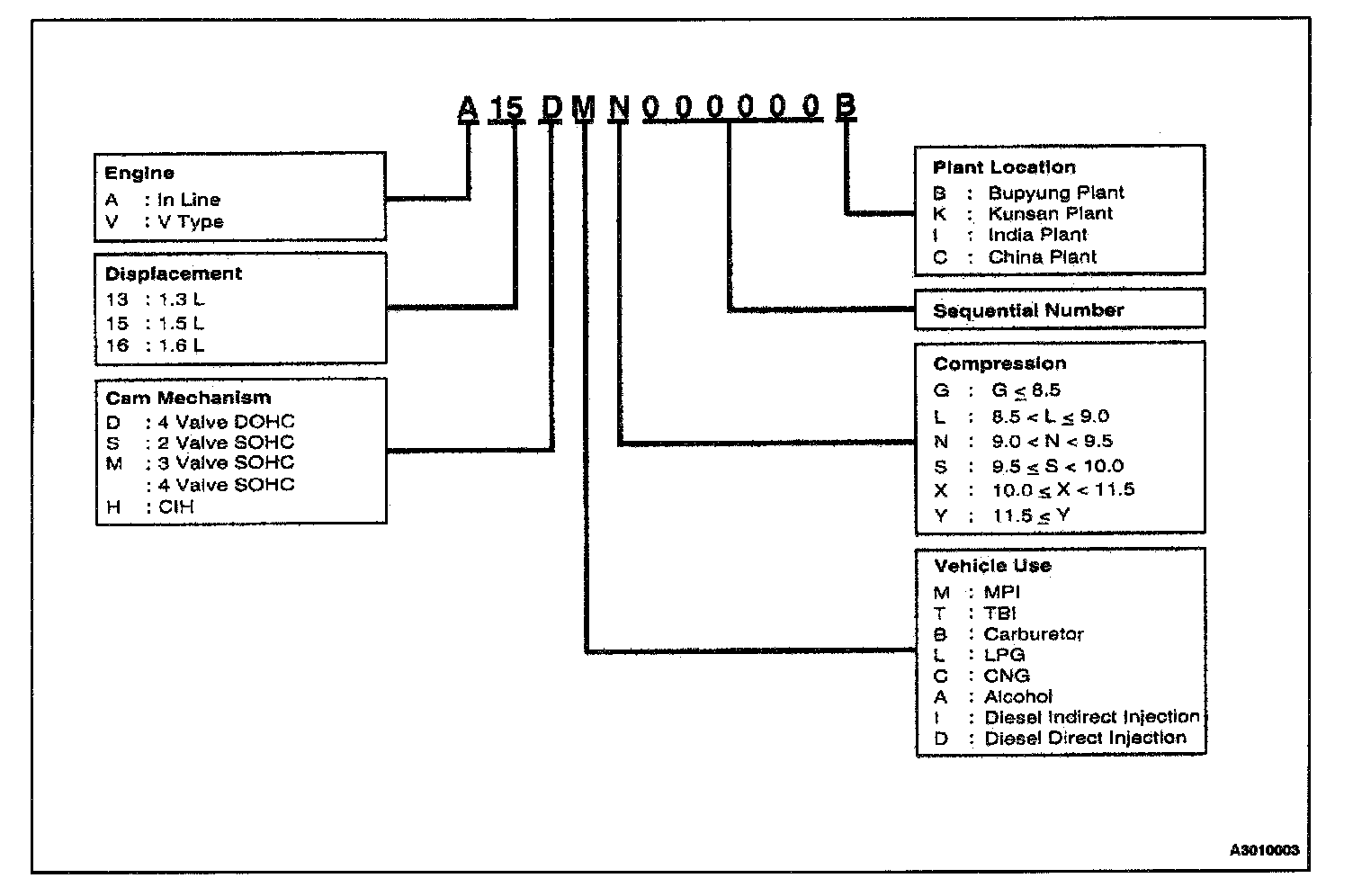

Engine Number:

Engine Number Location - DOHC
The engine number is stamped on the cylinder block under the No.4 exhaust manifold of the engine.

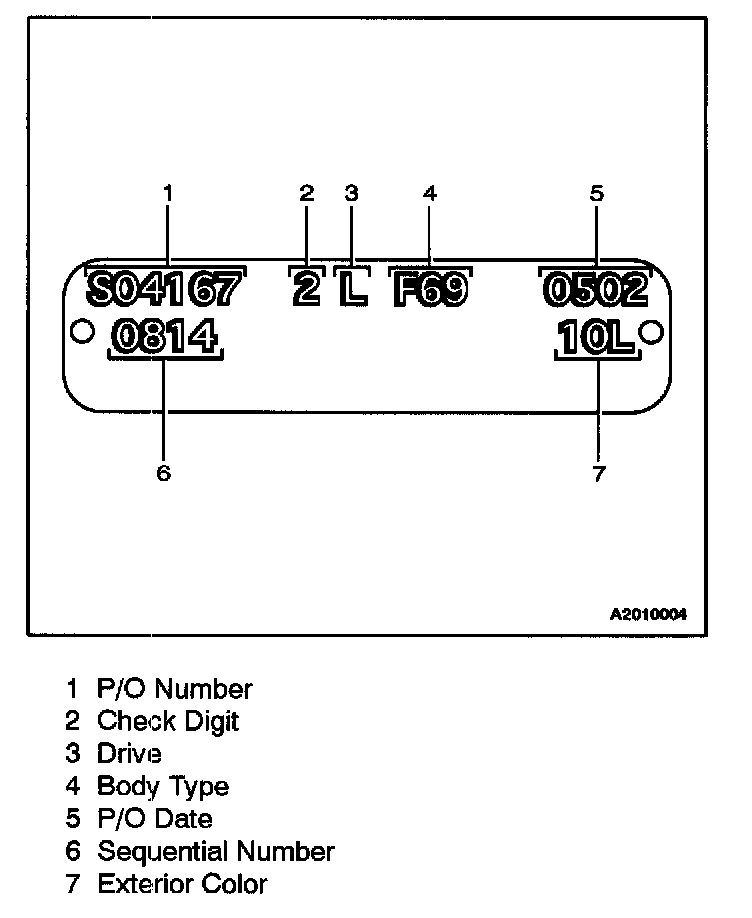

Body Identification Number Plate:

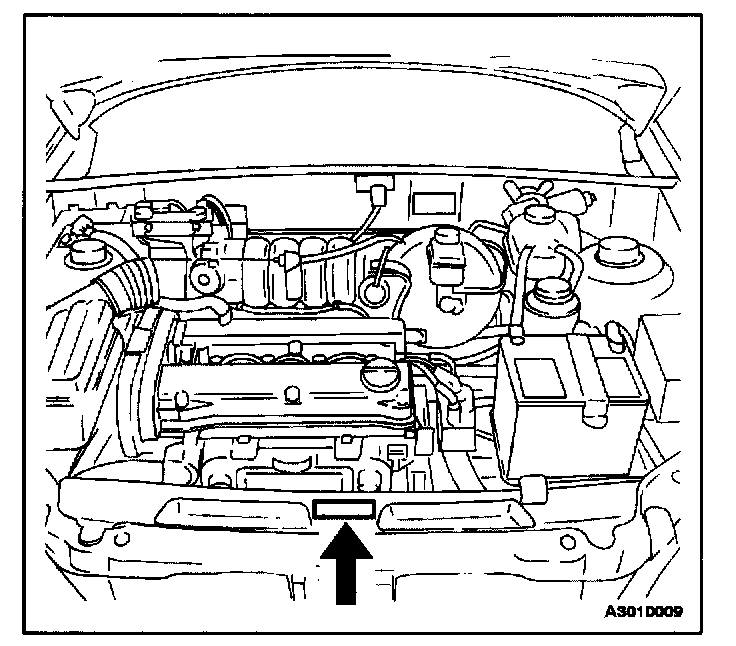

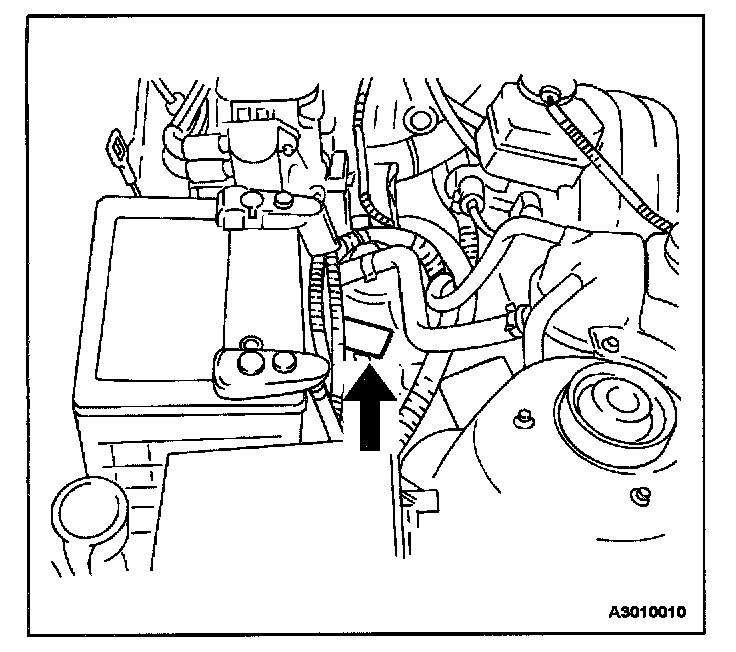

Body Identification Number Plate Location
The body identification number plate is attached to the top of the front panel support.

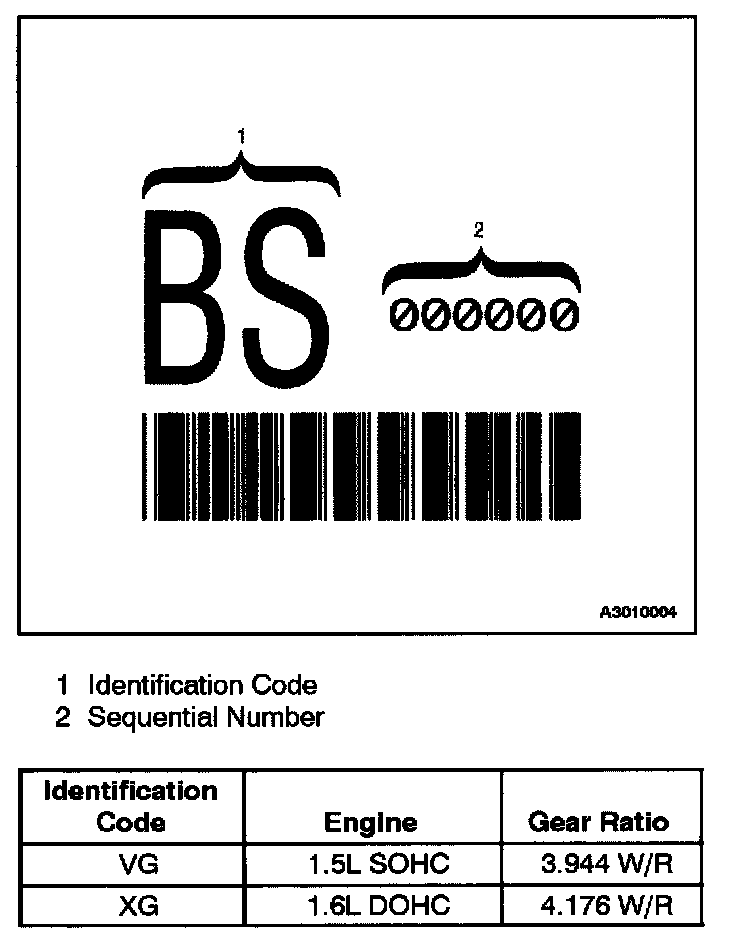

Manual Transmission Identification Number Plate:

Manual Transaxle Identification Number Plate Location
The manual transaxle identification number is attached to the top of the transmission case near the engine.

Automatic Transmission Identification Number Plate:

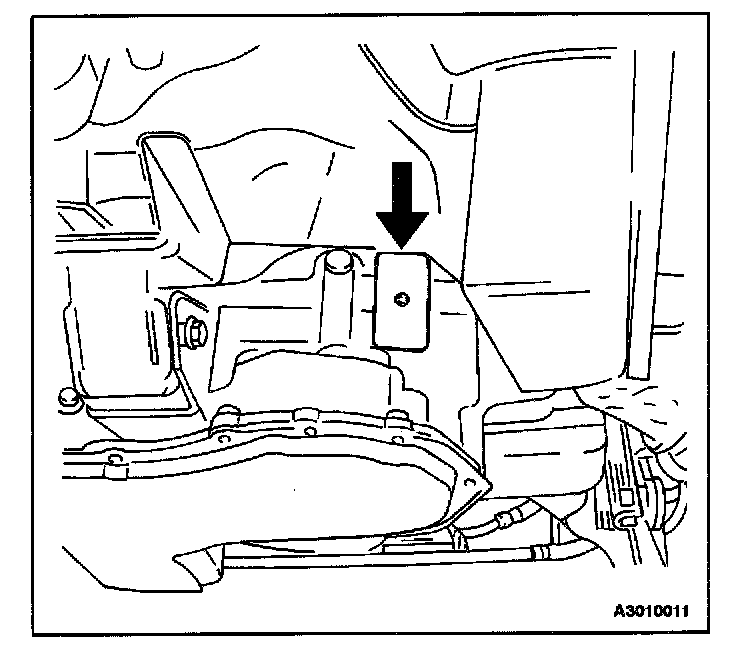

Automatic Transaxle Identification Number Plate Location
The automatic transaxle identification number plate is attached on the rear side of the transmission near the bulkhead.
