Air Conditioner Compressor Circuit

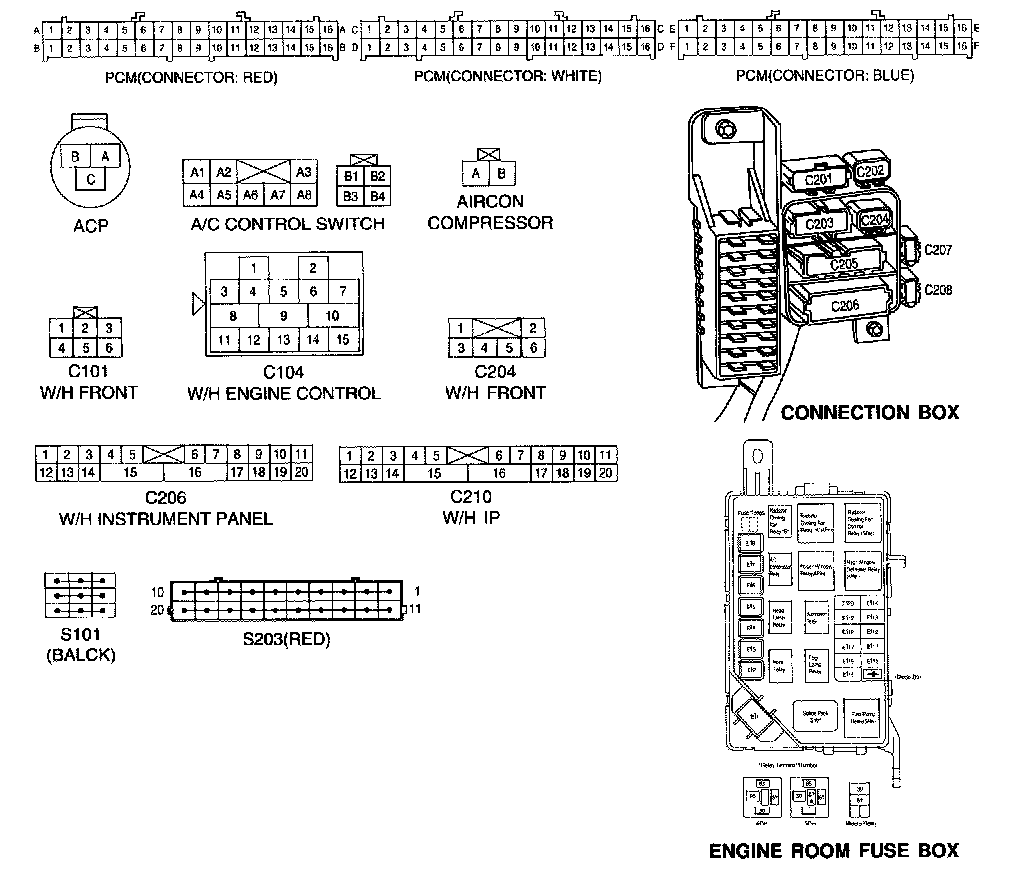

Connector Identification Symbol & Pin Number Position:



Splice Pack - S203 (Red):
