Trunk Lamp

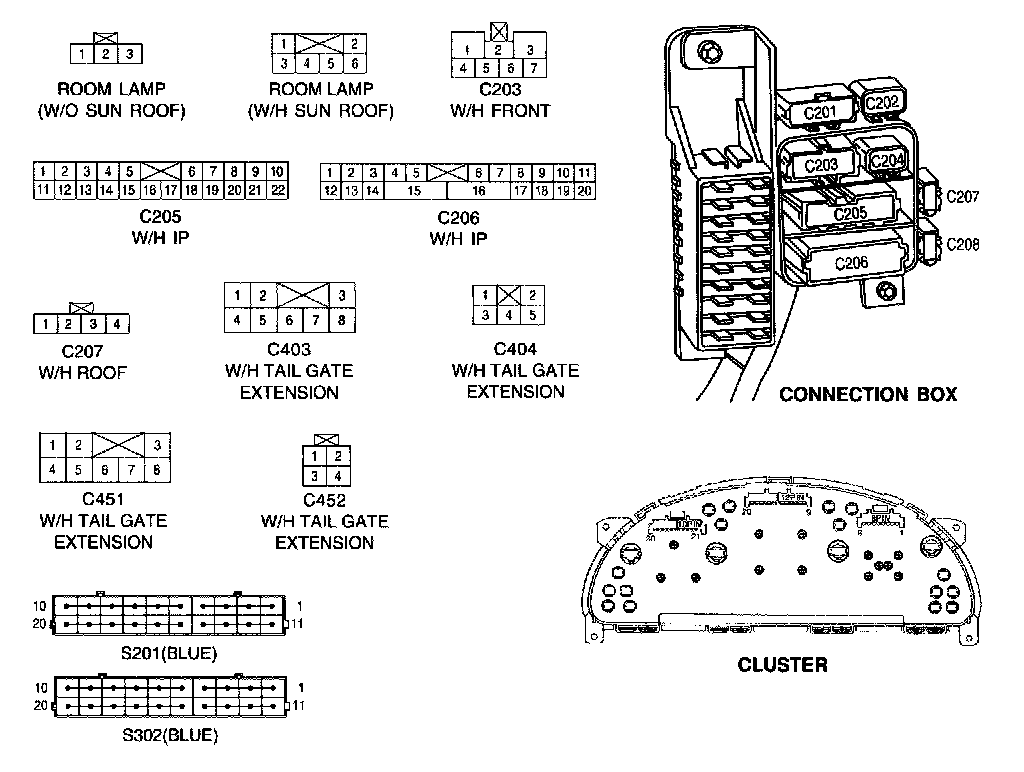

Connector Identification Symbol & Pin Number Position:

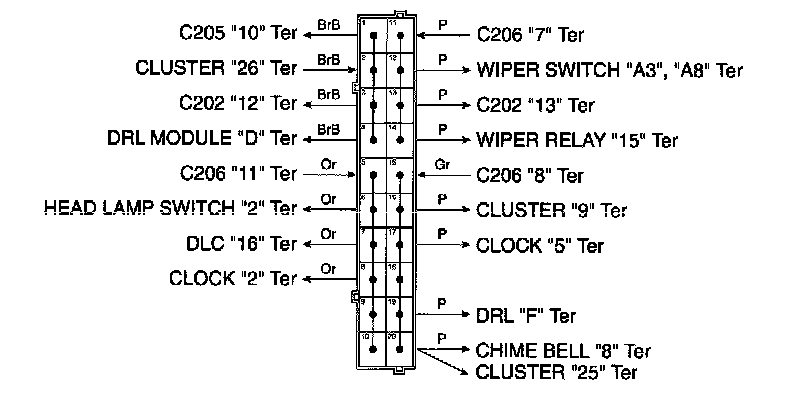

Splice Pack - S201 (Blue):



Splice Pack - S302 (Blue) - Hatch Back:
