Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc
Connector Identification Symbol & Pin Number Position:

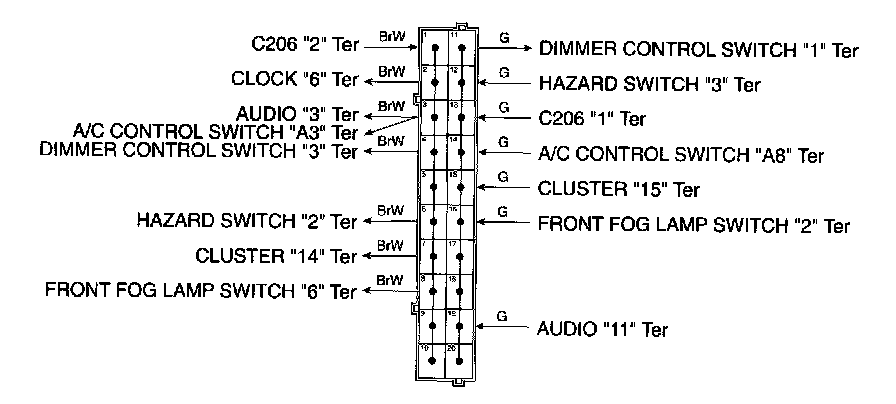

Splice Pack - S203 (Red):

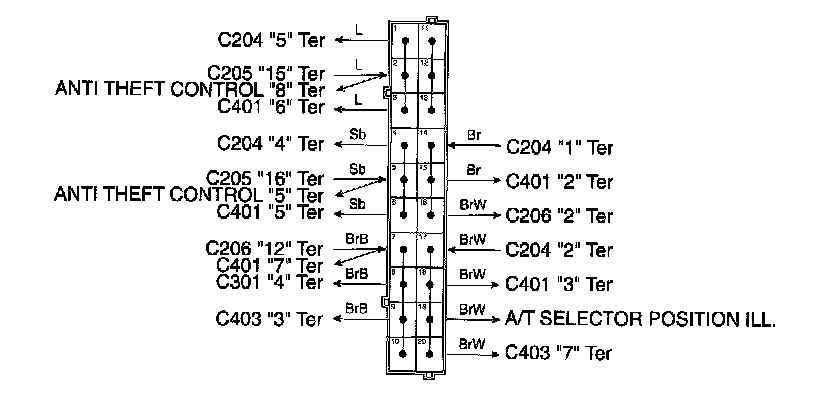

Splice Pack - S204 (Red):

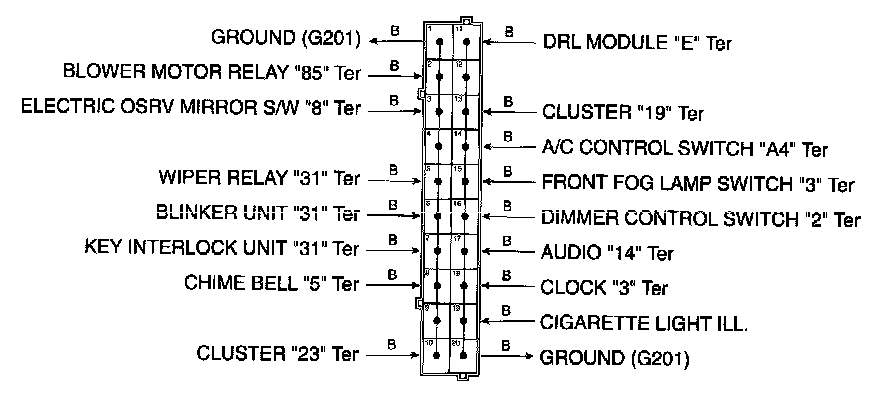

Splice Pack - S301 (Orange) - Hatch Back:
