Lanos S Hatchback L4-1.6L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Windshield Wipers and Washer System
Windshield Wipers and Washer System

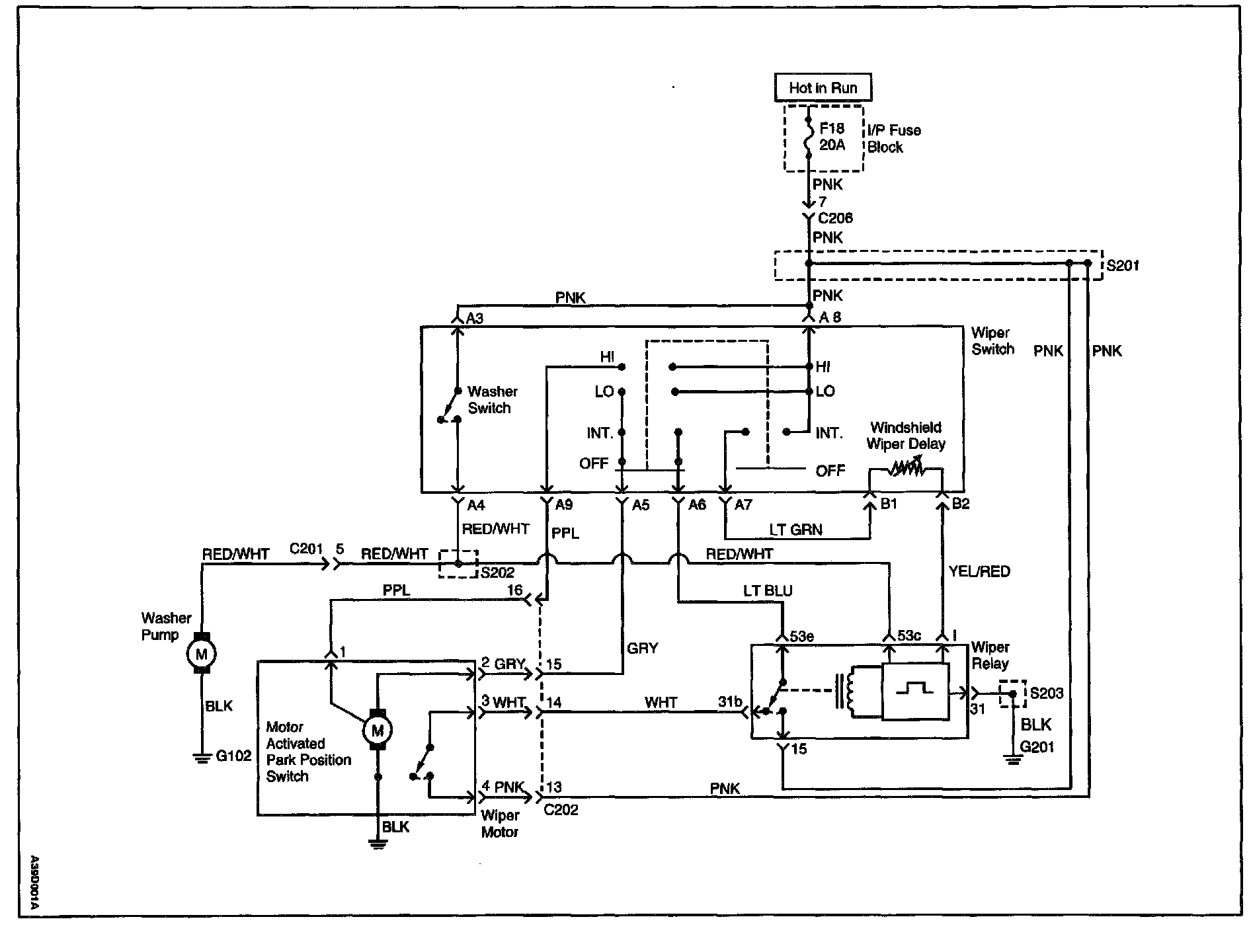

Windshield Wipers And Washer System - Circuit Diagram:
