Instrument Panel Indicator Bulb Removal and Installation

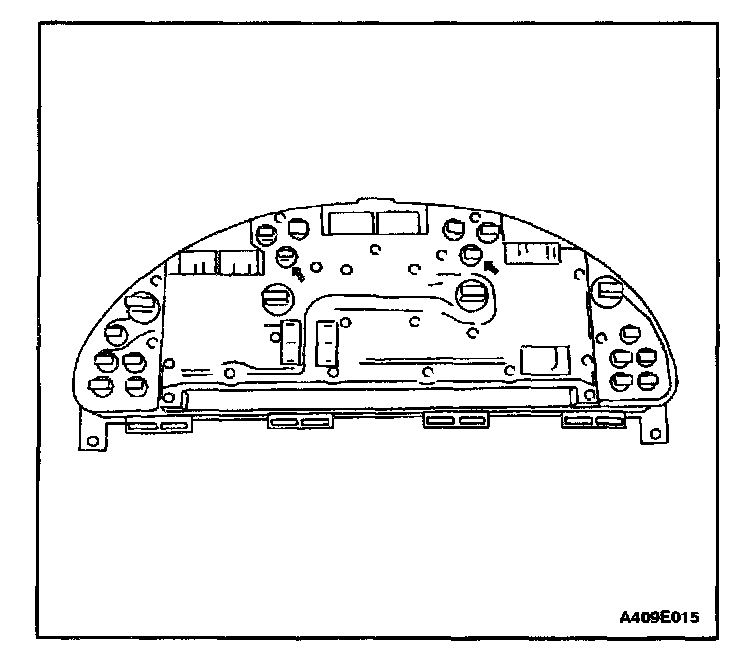

INSTRUMENT CLUSTER INDICATOR LAMPS

(Turn Signal Indicator Lamps Shown, Other Indicator Lamps Similar)

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

2. Remove the instrument cluster. Refer to "Instrument Cluster".

3. Remove the bulb from the rear of the cluster.

INSTALLATION PROCEDURE




1. Install the new bulb.

2. Install the instrument cluster. Refer to "Instrument Cluster".

3. Connect the negative battery cable.
