Instrument Panel Indicator Lamps Do Not Operate
Instrument Panel Indicator Lamps Do Not Operate
Instrument Cluster Indicator Lamps - Circuit Diagram:

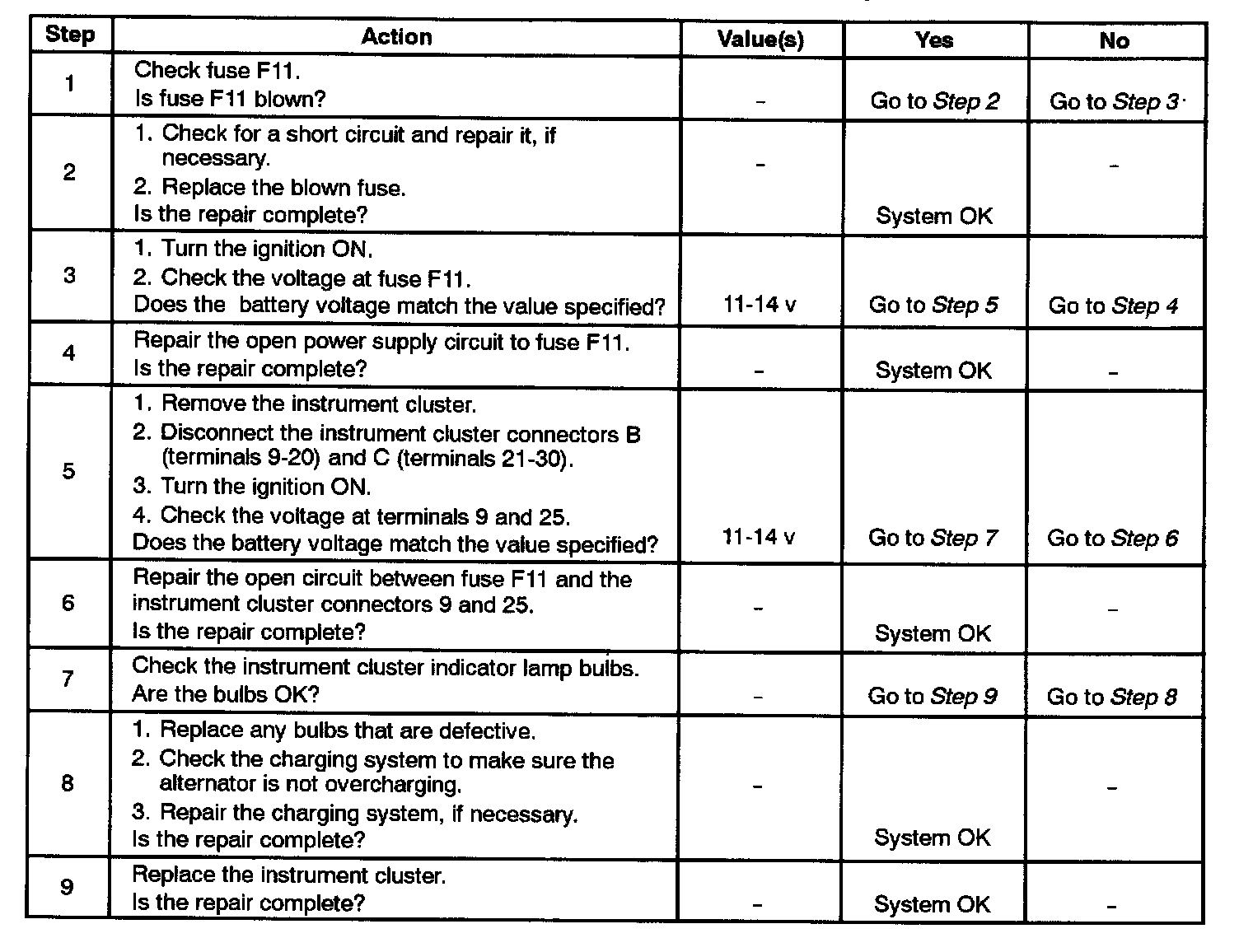

Step 1 - 9:
