Head Lamp Switch & Illumination Relay Circuit

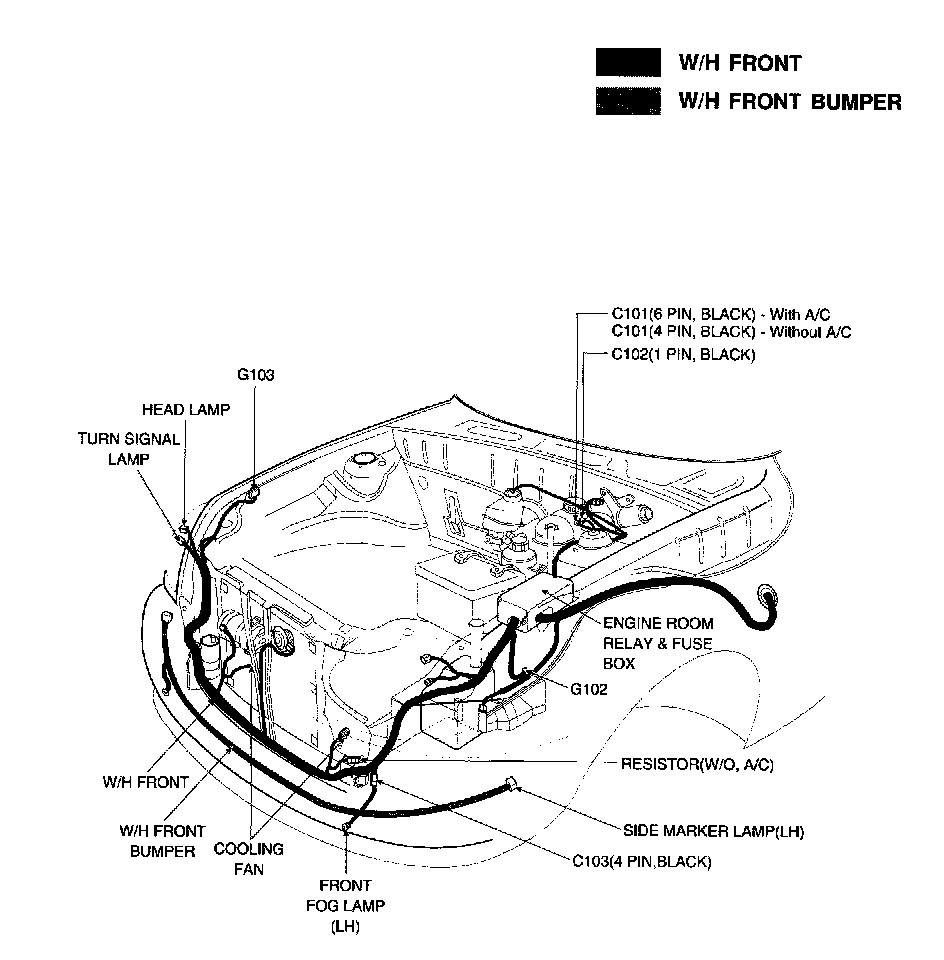

Position Of Connectors And Grounds - W/H Front, Front Bumper:
