Trunk Lamp: Service and Repair

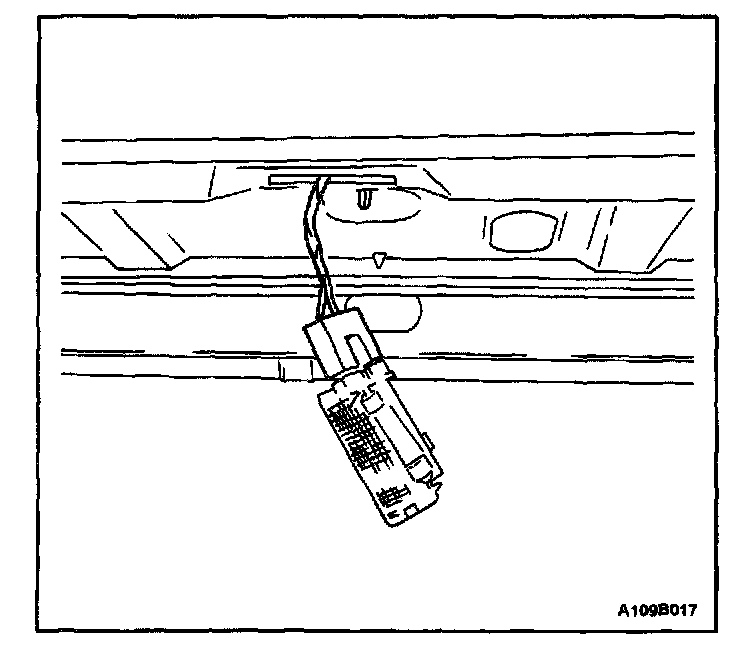

LUGGAGE COMPARTMENT LAMP (Typical)

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

2. Gently pry the luggage compartment lamp off by inserting a flathead screwdriver into the recess on the edge of the lamp.

3. Disconnect the electrical connector.

4. Remove the bulb.

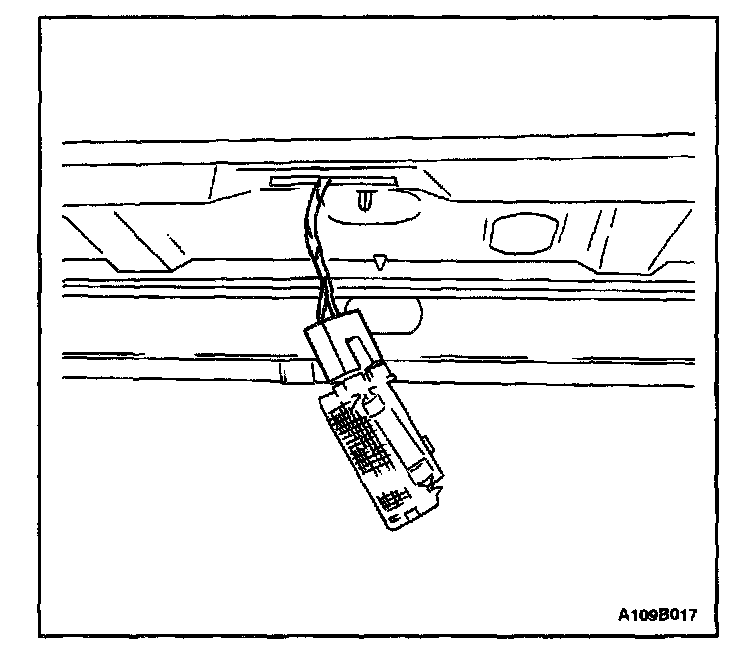

INSTALLATION PROCEDURE




1. Install a new bulb.

2. Connect the electrical connector.

3. Insert the luggage compartment lamp into the recess and press the lens into place.

4. Connect the negative battery cable.
