Power Distribution Schematics

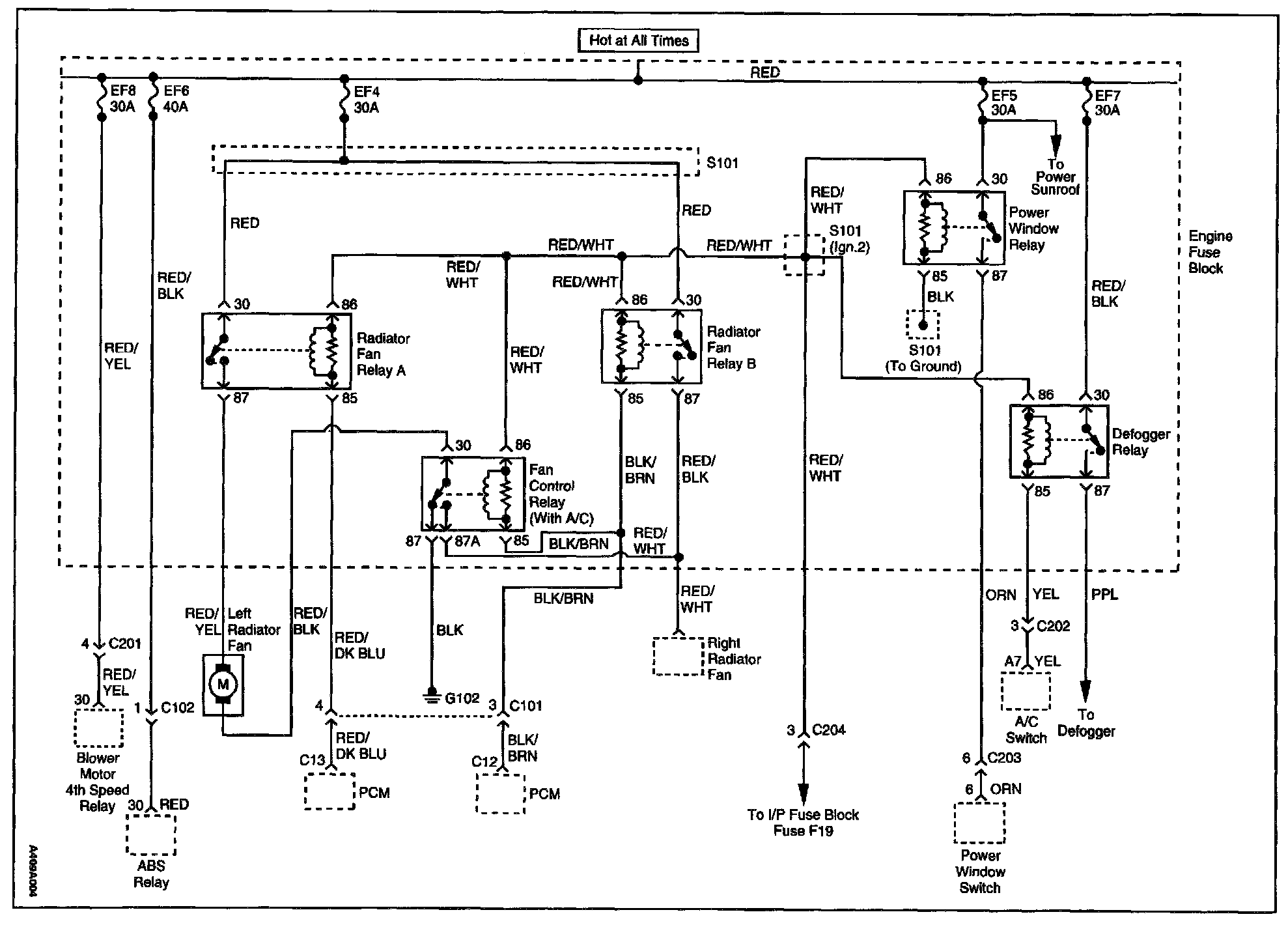

Power Distribution Schematic Part 1:

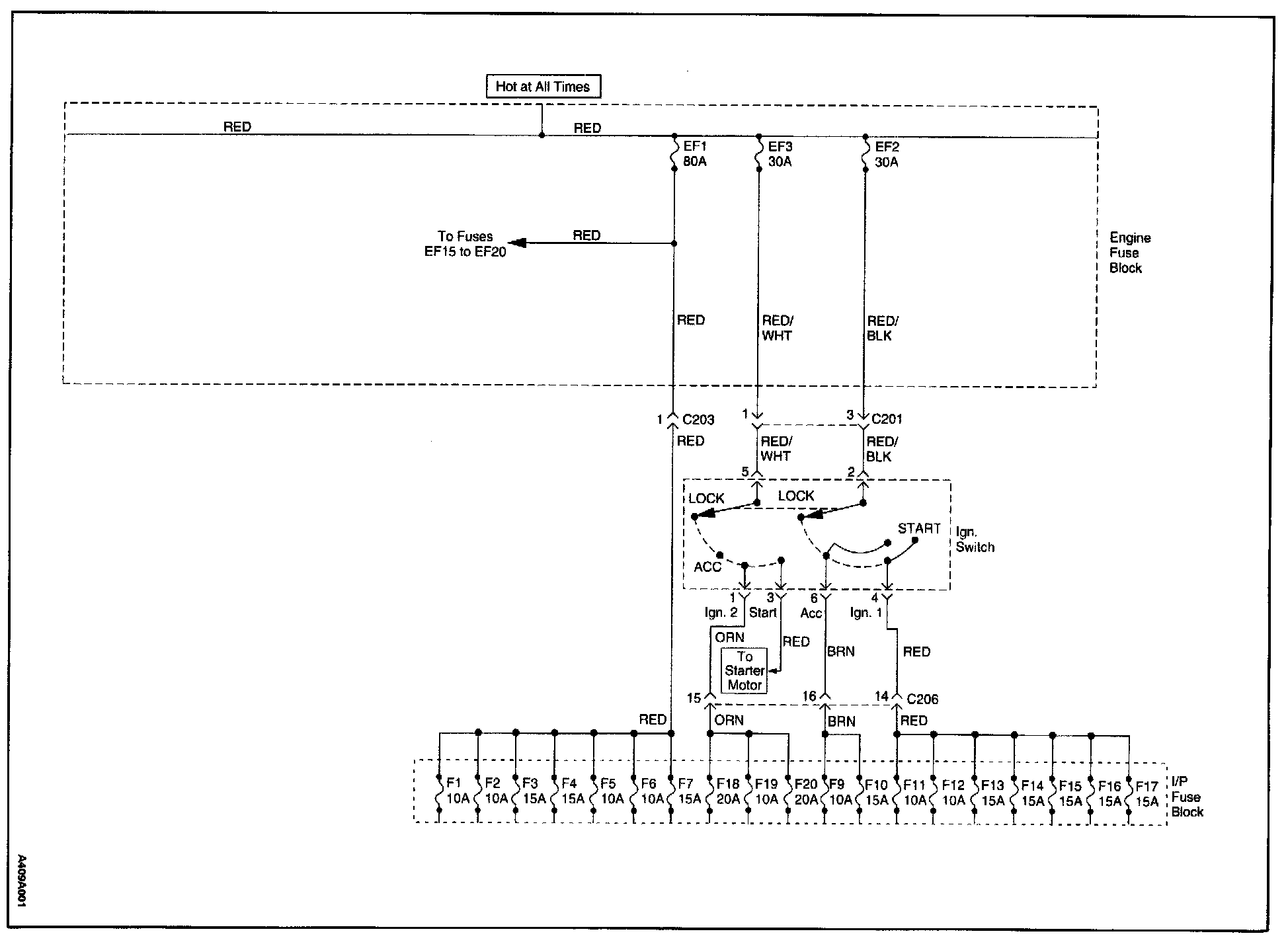

Power Distribution Schematic Part 2:

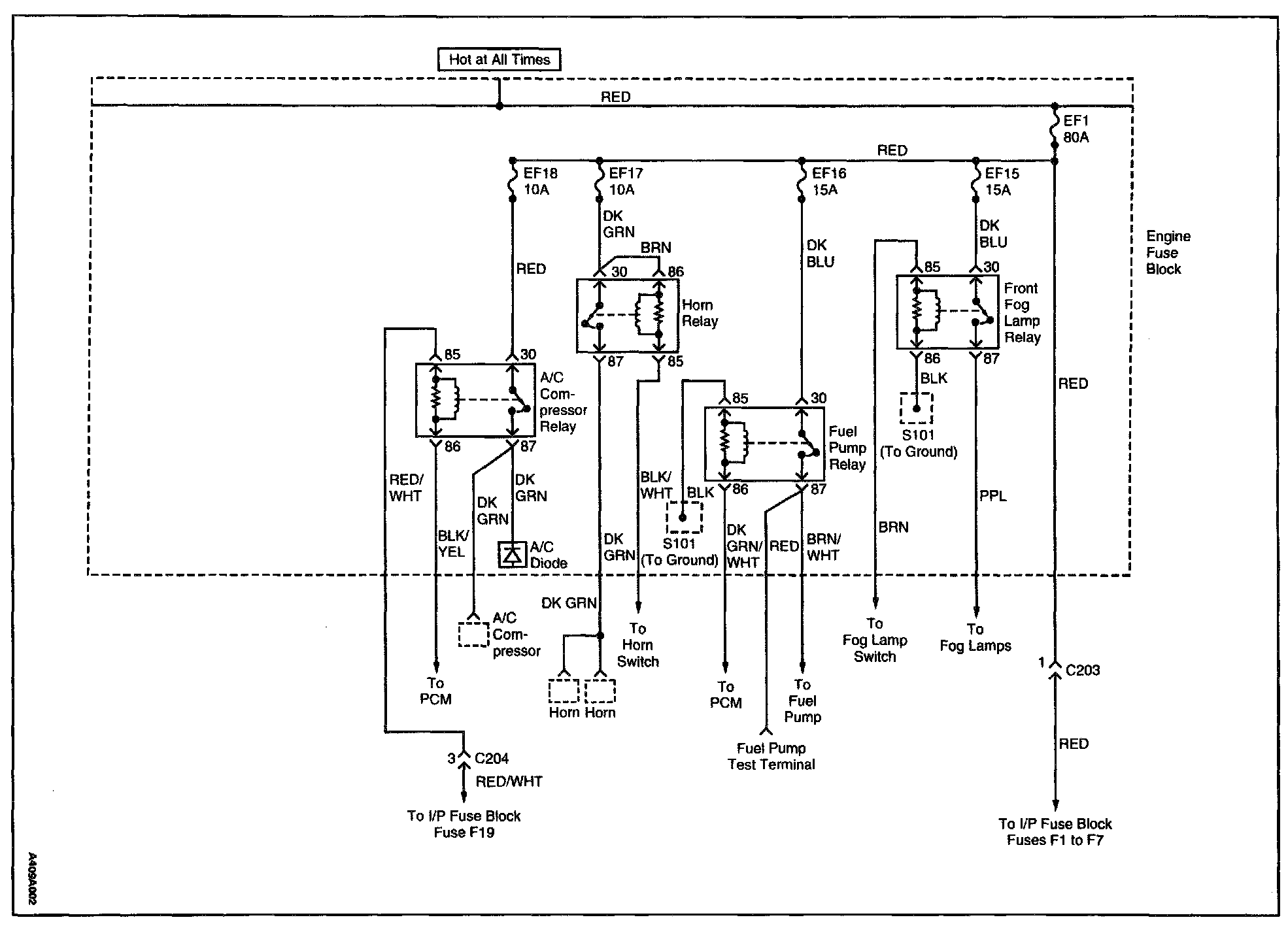

Power Distribution Schematic Part 3:
Power Distribution Schematic Part 4:
