Battery Power Supply, Ground, El System & CKP Circuit
Battery Power Supply, Ground, El System & CKP Circuit

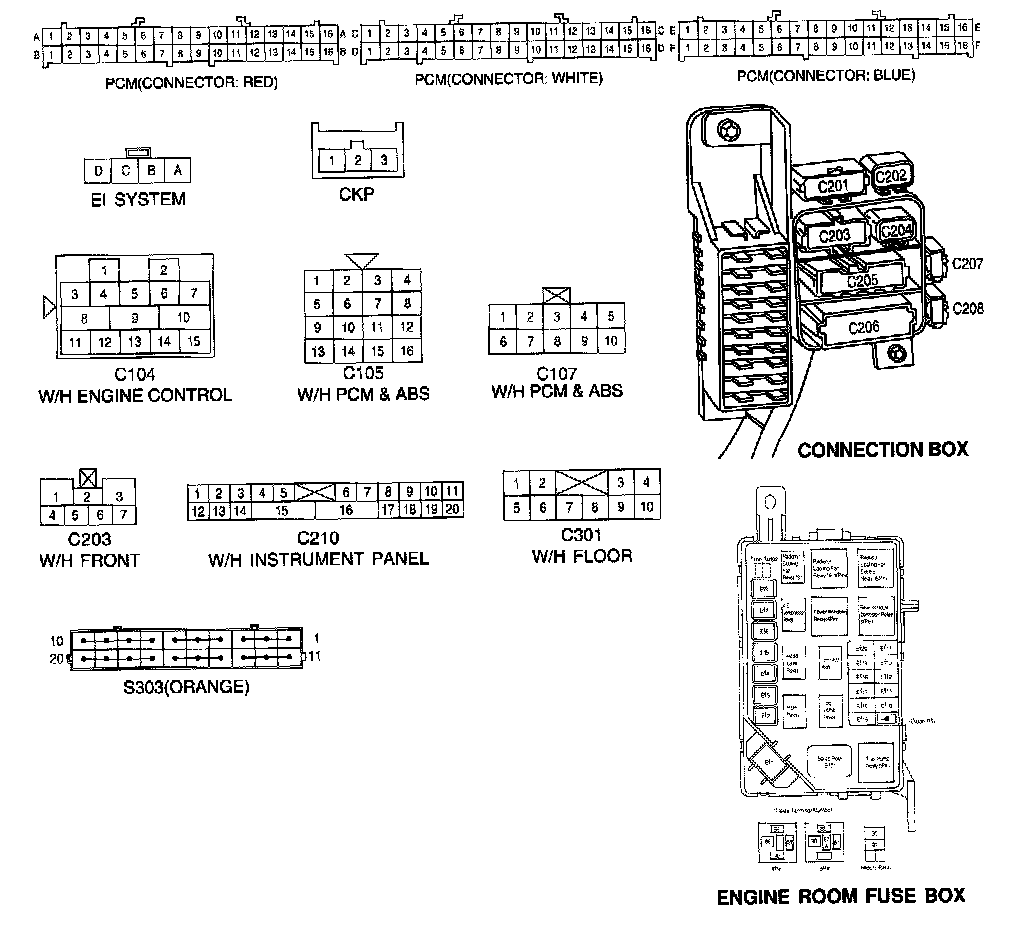

Connector Identification Symbol & Pin Number Position:

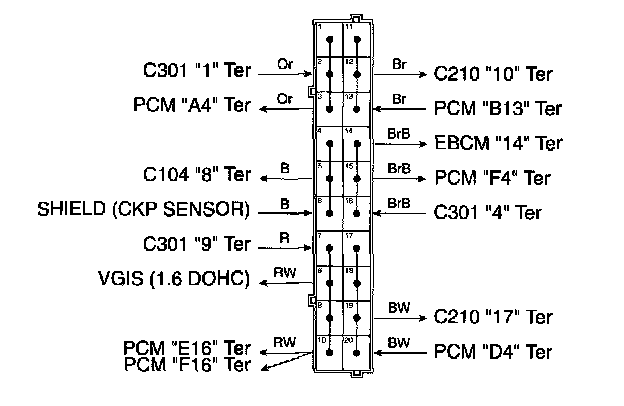

Splice Pack - S303 (Orange):
