Fuel Pump, Injector, IAC & Fuel Cut-Off Switch Circuits
Fuel Pump, Injector, IAC & Fuel Cut-Off Switch Circuits

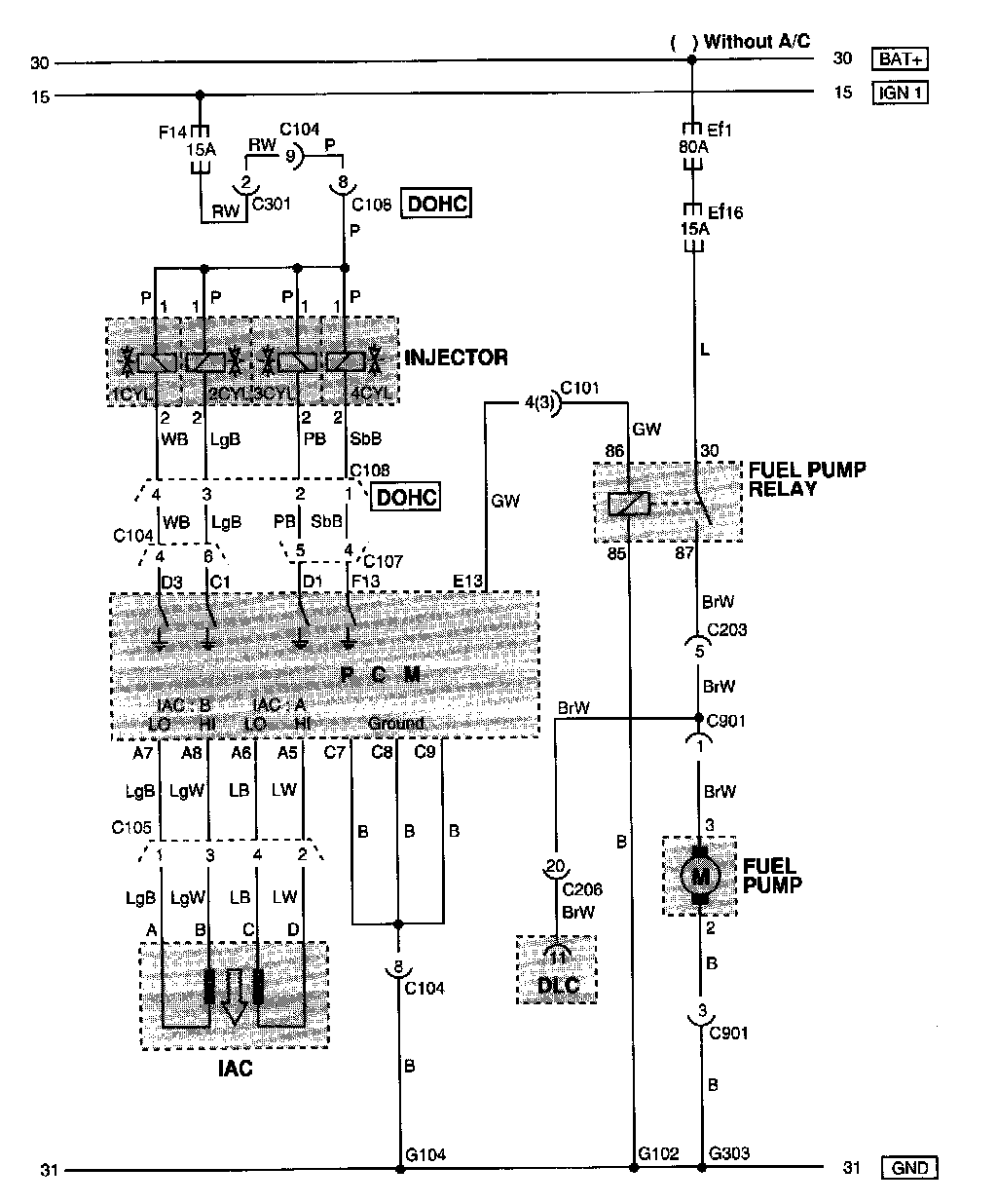

Electrical Wiring Diagram:
