PCM/ECM Diagrams

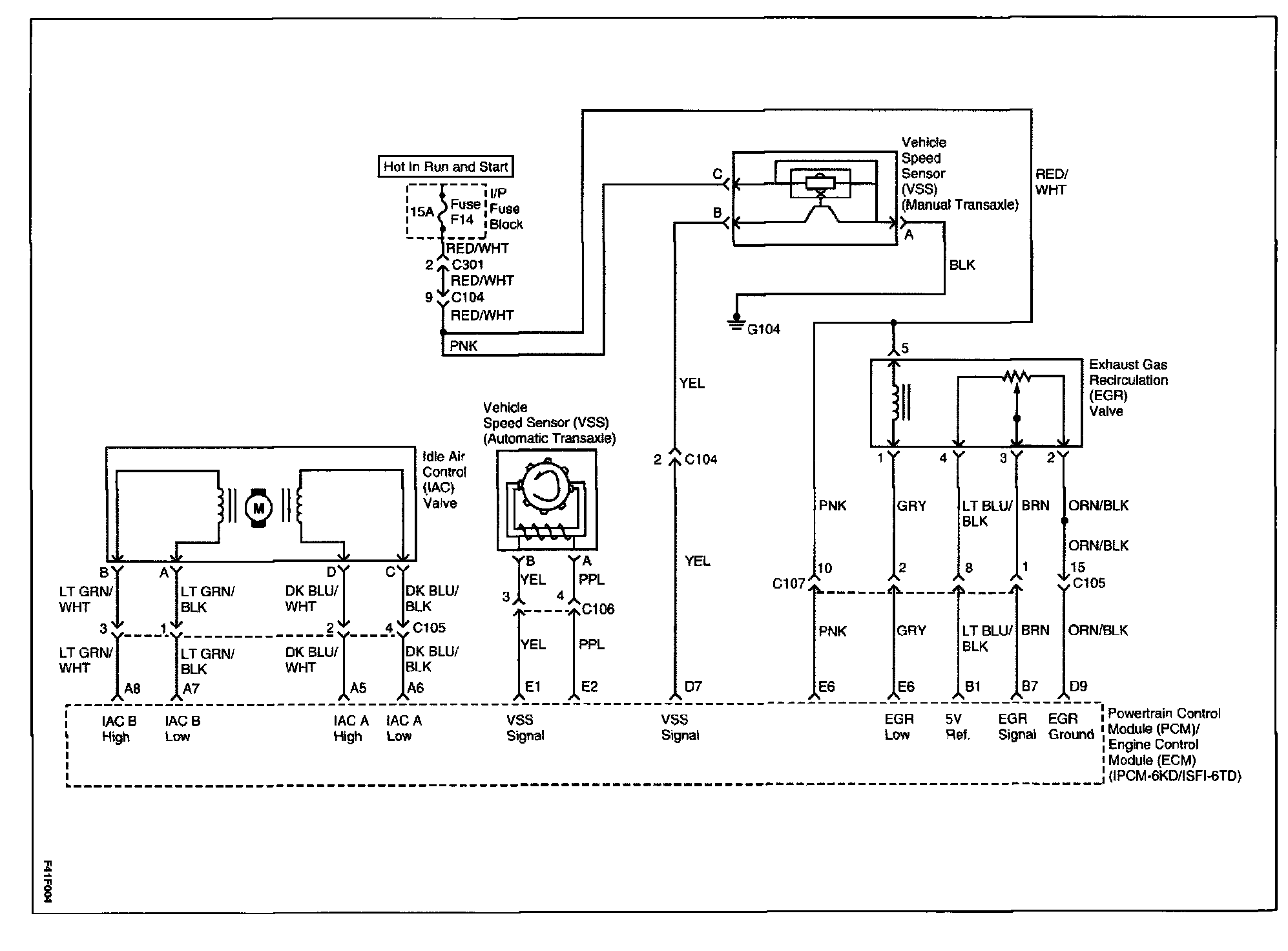

PCM/ECM Diagram Part 1:
PCM/ECM Diagram Part 2:
PCM/ECM Diagram Part 3:
PCM/ECM Diagram Part 4:
PCM/ECM Diagram Part 5:
PCM/ECM Diagram Part 6:
PCM/ECM Diagram Part 7:
