Sensor (CMP, Heated O2, O2), VGIS (DOHC), ESDS & CCCP Circuit
Sensor (CMP, Heated O2, O2), VGIS (DOHC), ESDS & CCCP Circuit

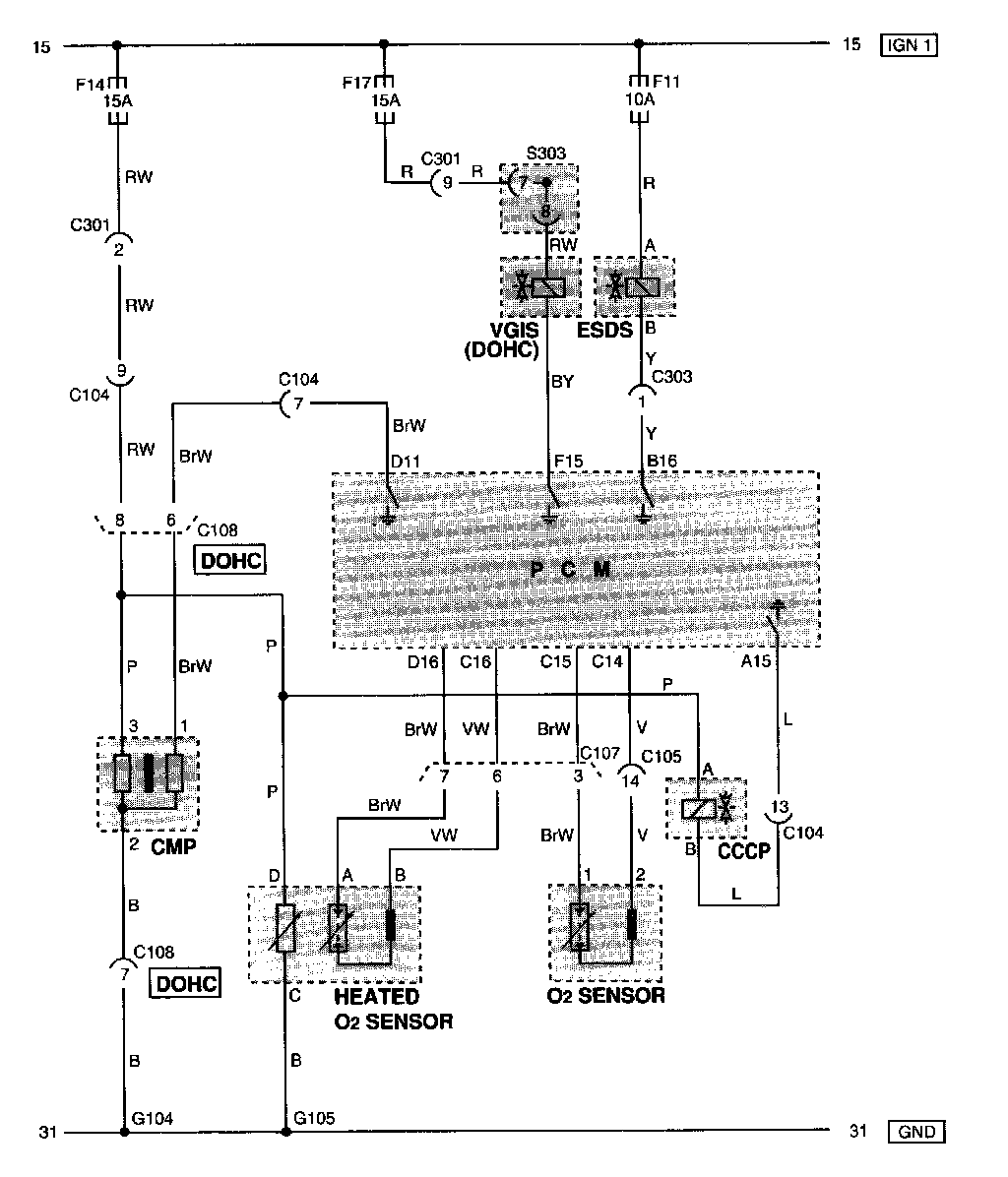

Electrical Wiring Diagram:
