Operation CHARM
: Car repair manuals for everyone.
Home
>>
Daewoo
>>
2001
>>
Lanos S Hatchback L4-1.6L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

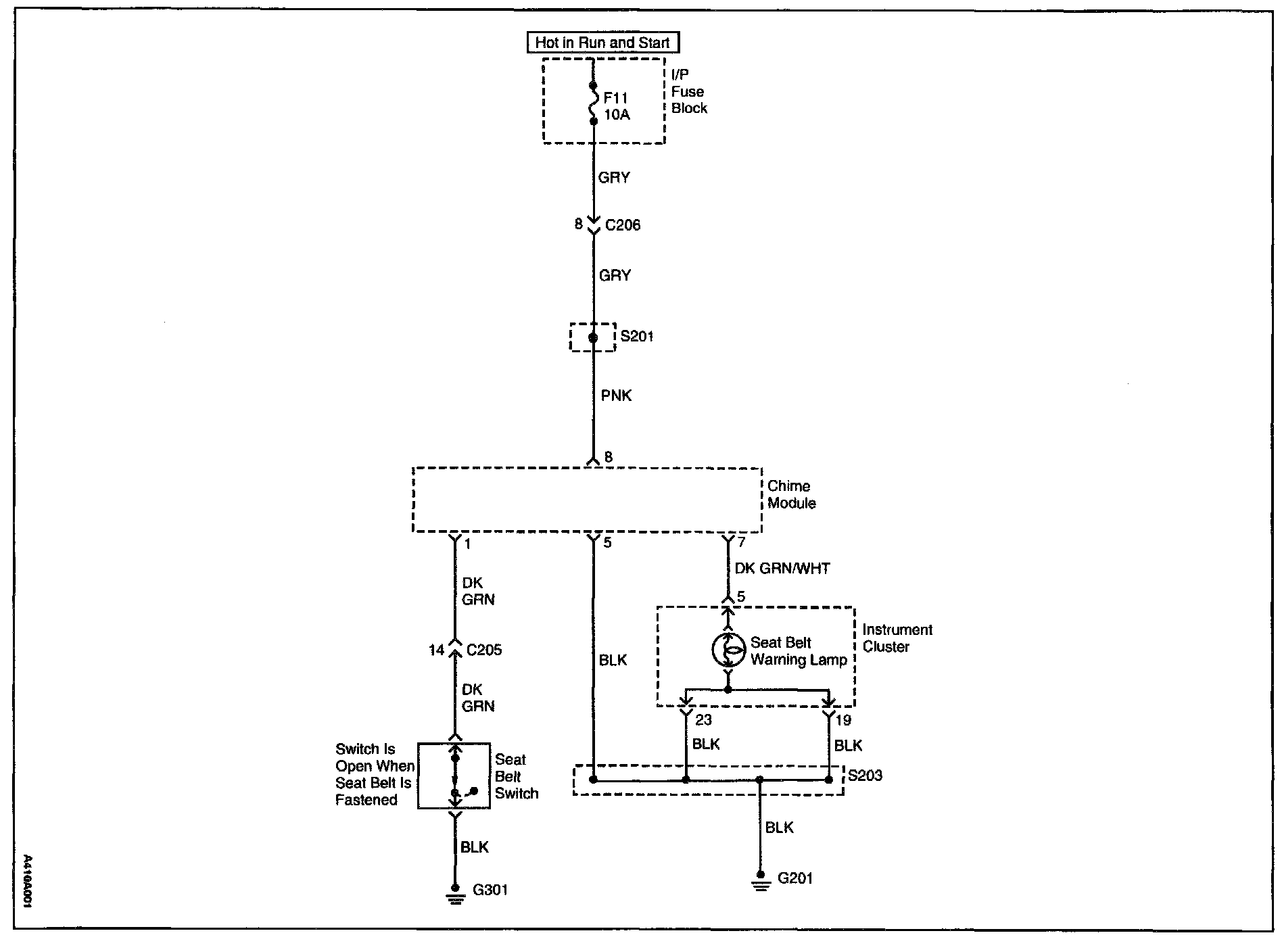

Driver Seat Belt Warning - Schematic And Routing Diagrams:
