PRND Switch (Selector Lever Position Lamp) For Asian A/T Circ

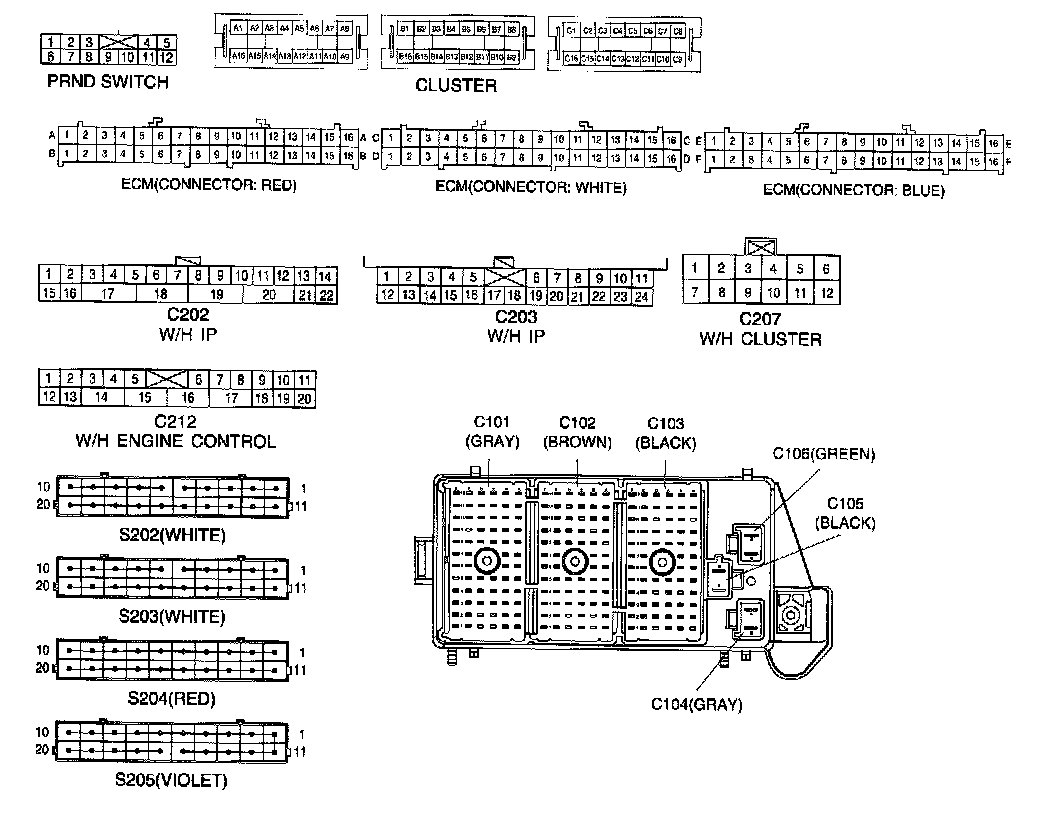

Connector Identification Symbol & PIN Number Position:

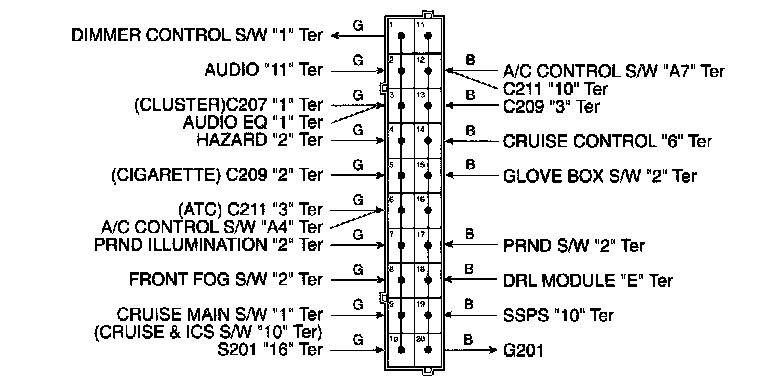

Splice Pack S202 (White):

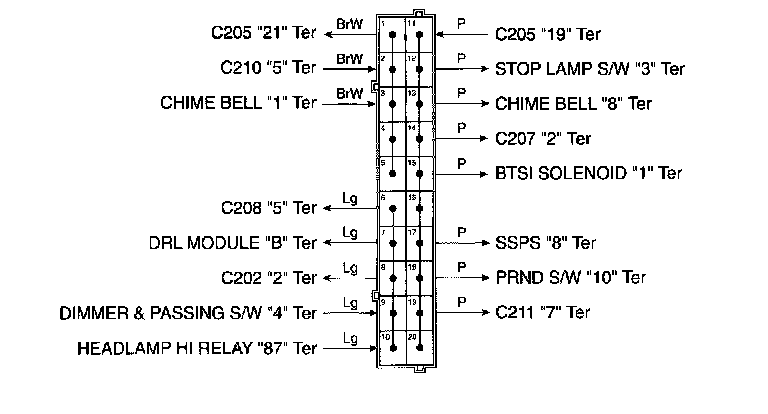

Splice Pack S203 (White):

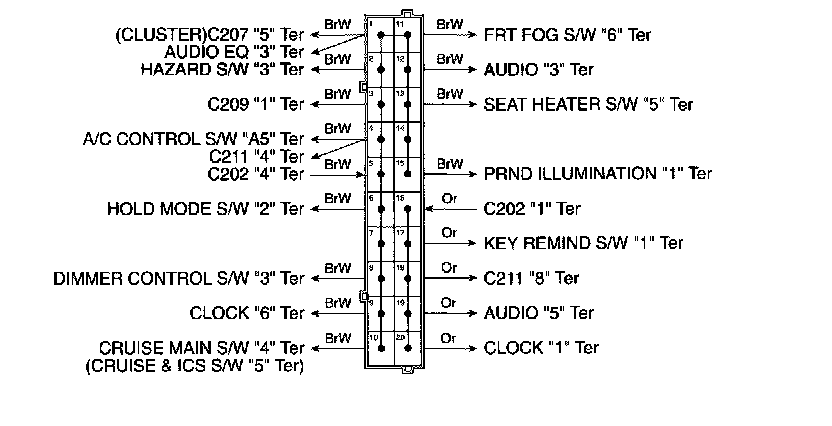

Splice Pack S204 (Red):



Splice Pack S205 (Violet):
