Warning Lamp(Trunk Open,Door Open,Seat Belt)Front Fog Lamp Circ
Warning Lamp(Trunk Open,Door Open,Seat Belt)Front Fog Lamp Circ
Connector Identification Symbol & PIN Number Position:

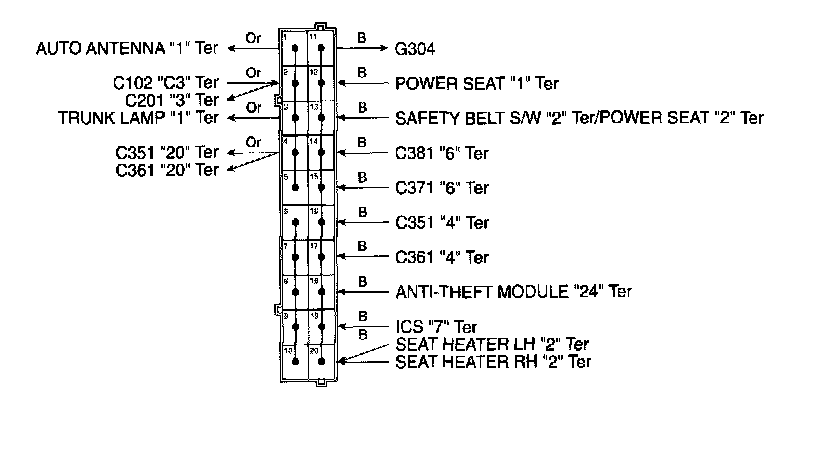

Splice Pack S203 (White):
Splice Pack S303 (Gray):
Splice Pack S305 (White):
