Key Reminder Switch
Key Reminder Switch

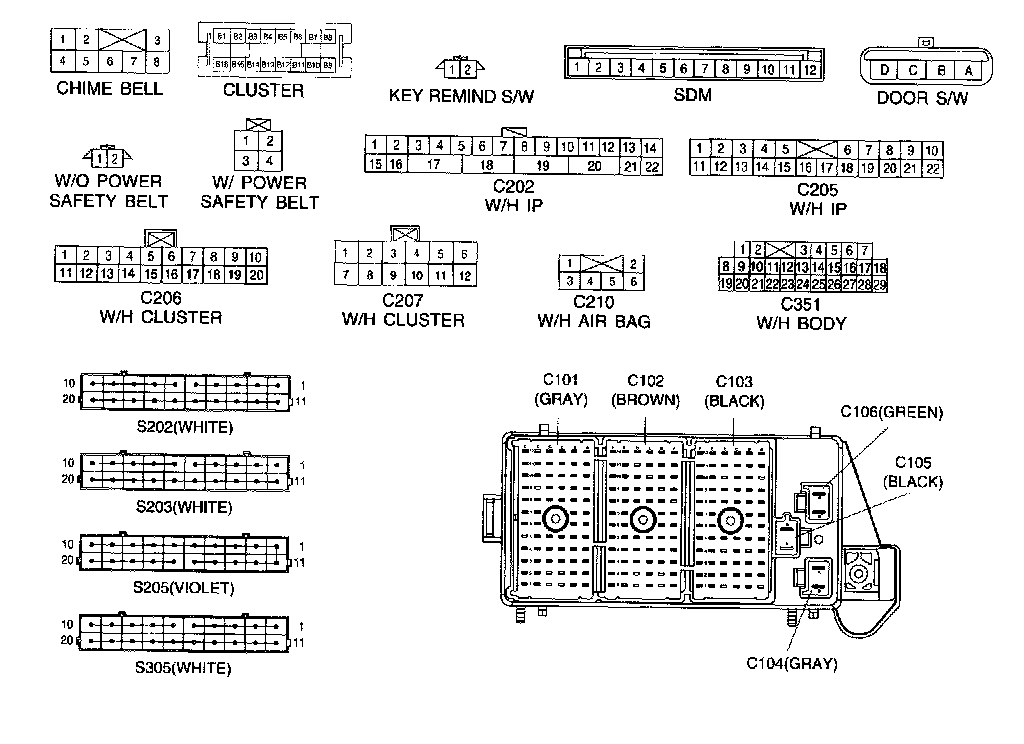

Connecter Identification Symbol & Pin Number Position:

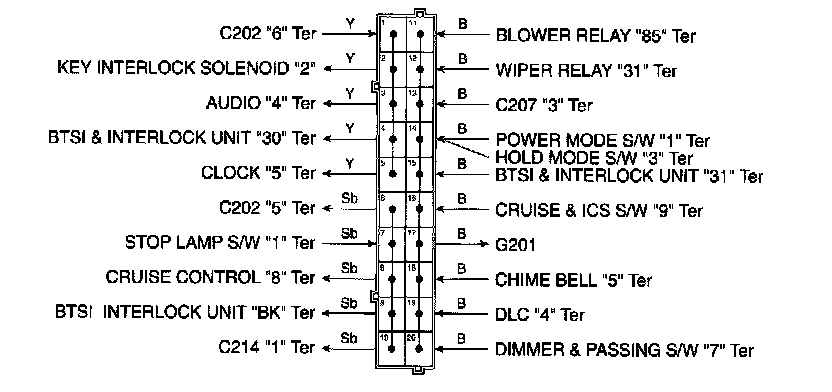

Splice Pack S202 (White):

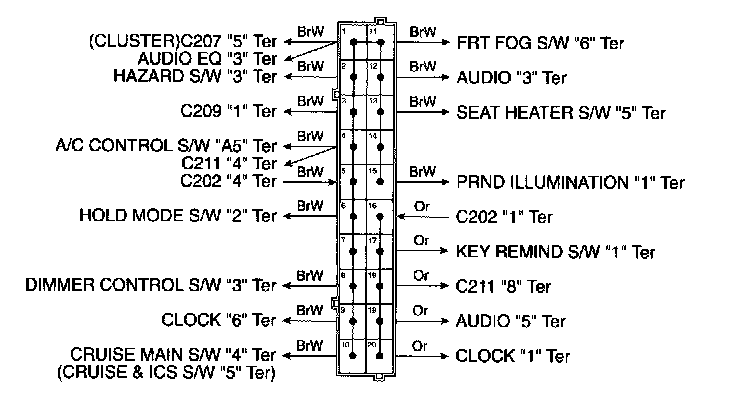

Splice Pack S203 (White):
Splice Pack S205 (Violet):
Splice Pack S305 (White):
