Operation CHARM
: Car repair manuals for everyone.
Home
>>
Daewoo
>>
2001
>>
Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Daytime Running Lamp
Daytime Running Lamp
Connector Identification Symbol & Pin Number Position:

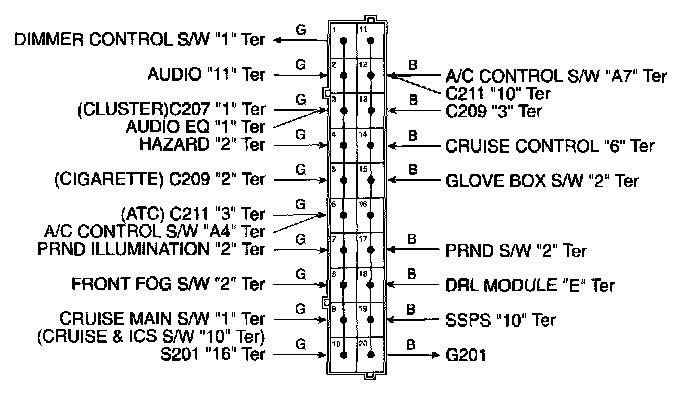

Splice Pack S202 (White):

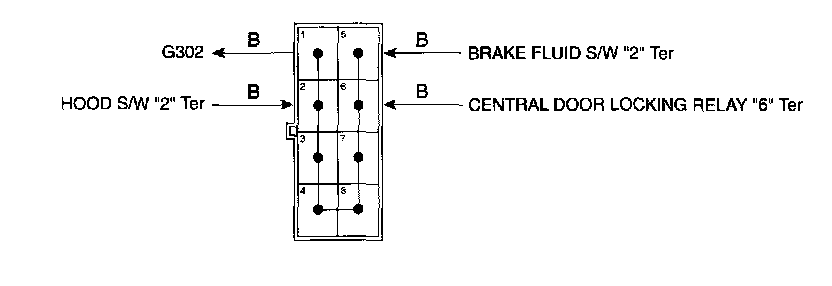

Splice Pack S203 (White):

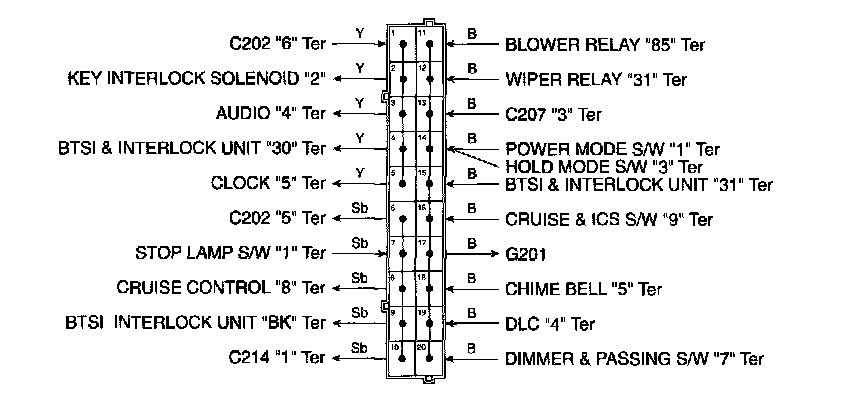

Splice Pack S204 (Red):
Splice Pack S301 (Black):
