Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
Power Window Motor
Connector Identification Symbol & Pin Number Position:

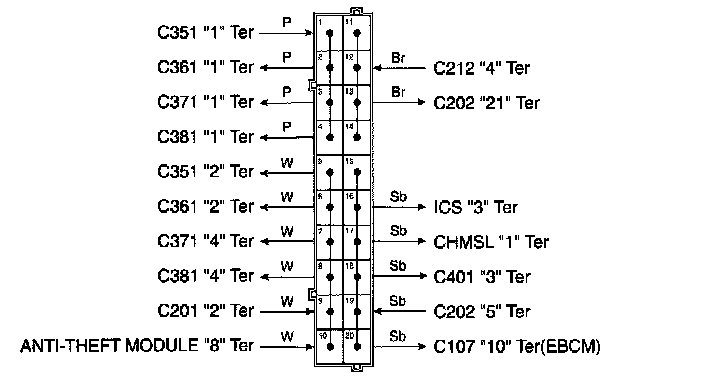

Splice Pack S304 (Sky Blue):

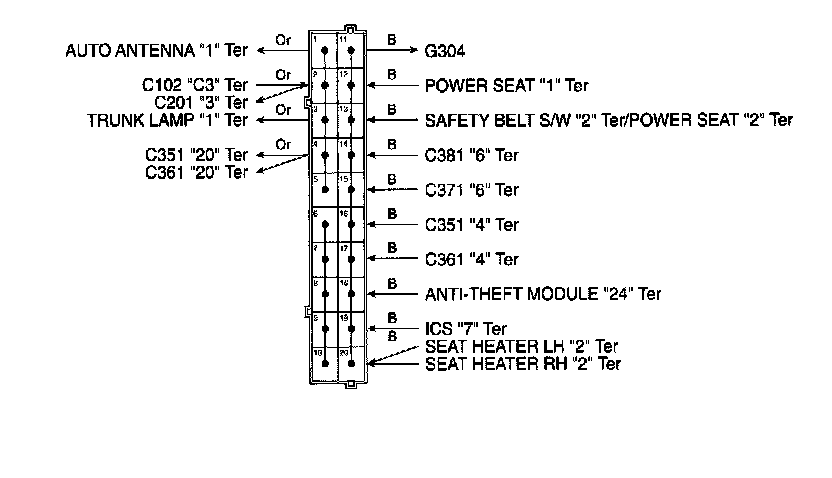

Splice Pack S305 (White):
