Home >> Daewoo >> 2001 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Automatic A/C

Automatic A/C

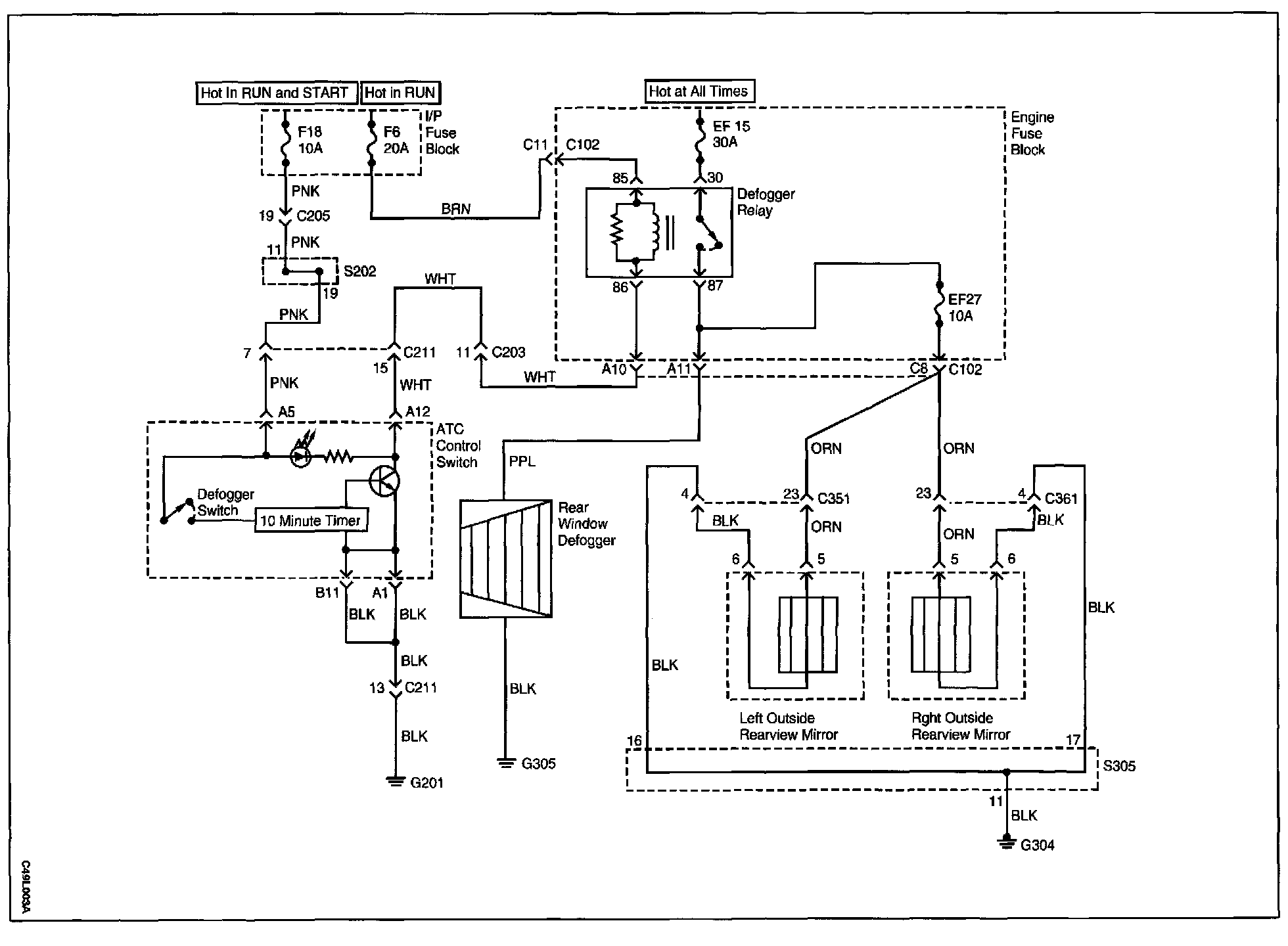

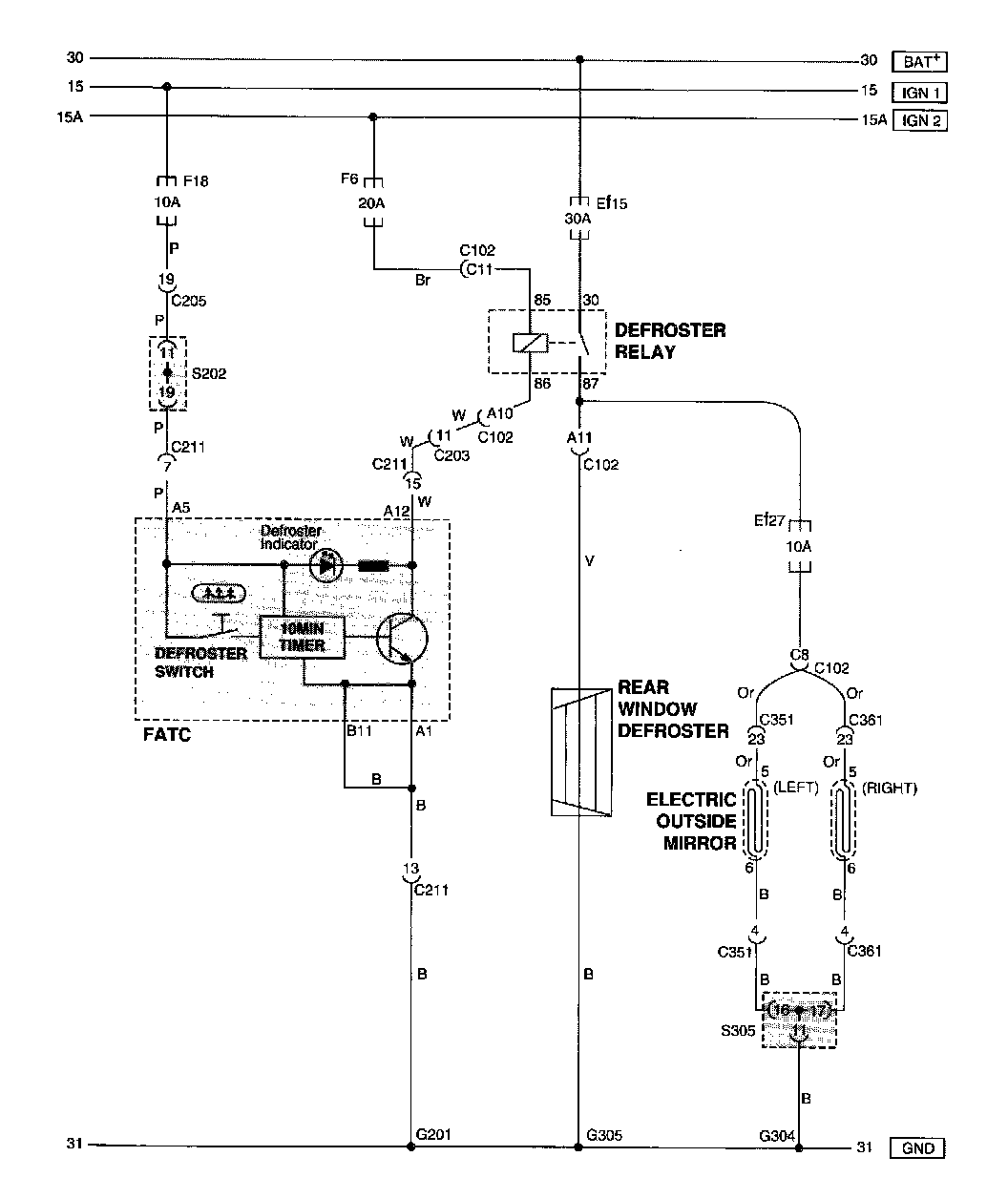

Defogger System (With Automatic Temperature Control):



Wiring Diagram:
