Home >> Daewoo >> 2001 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals

Turn Signals

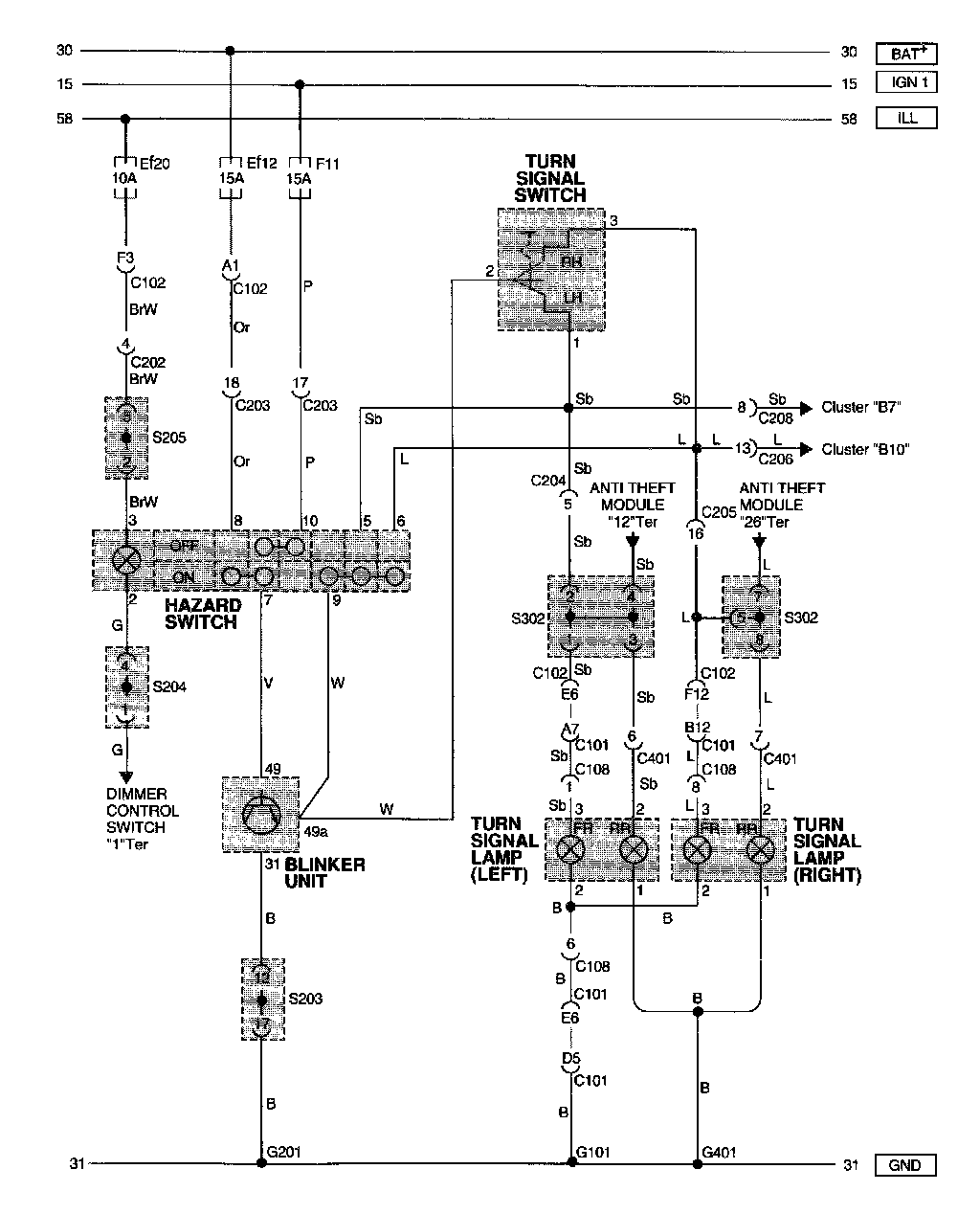

Wiring Diagram:

Turn And Hazard Lamps Circuit:
