Home >> Daewoo >> 2001 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Locations >> Splice Locations >> (Coolant Temp,Engine Check,Air Bag,ABS,TCS)&Indicat. Lamp Circ

(Coolant Temp,Engine Check,Air Bag,ABS,TCS)&Indicat. Lamp Circ

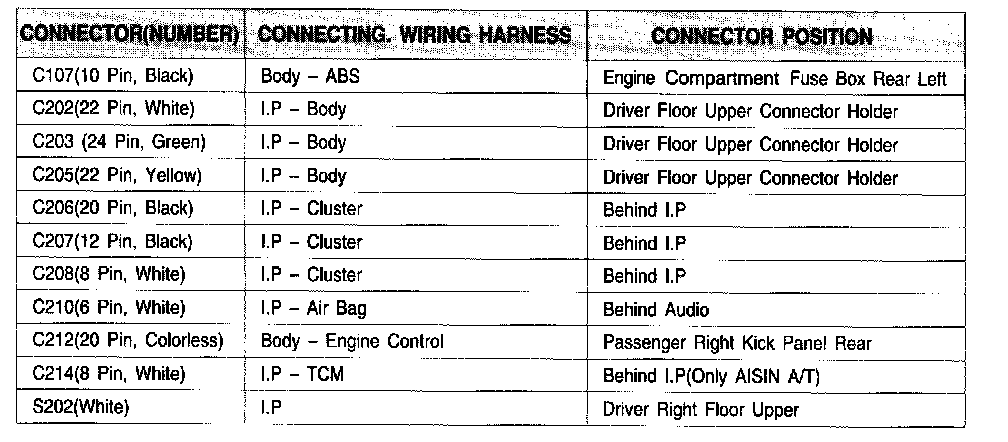

Connector Information Chart:
