Instrument Panel Indicator Bulb Removal and Installation

Instrument Cluster Indicator Lamps




Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the instrument cluster.

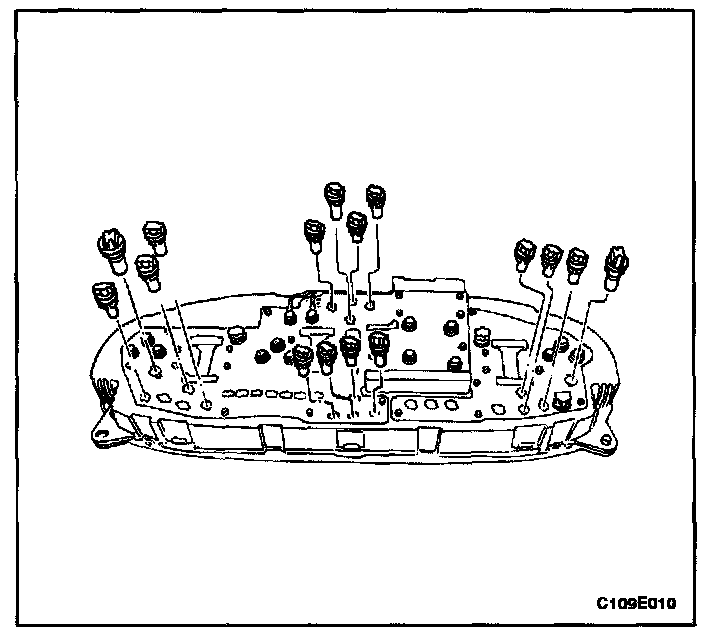

3. Remove the defective bulb from the rear of the cluster.




Installation Procedure

1. Install the new bulb.
2. Install the instrument cluster.
3. Connect the negative battery cable.
