Operation CHARM: Car repair manuals for everyone.
Home >> Daewoo >> 2001 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Instrument Panel Indicator Lamps Do Not Operate

Instrument Panel Indicator Lamps Do Not Operate

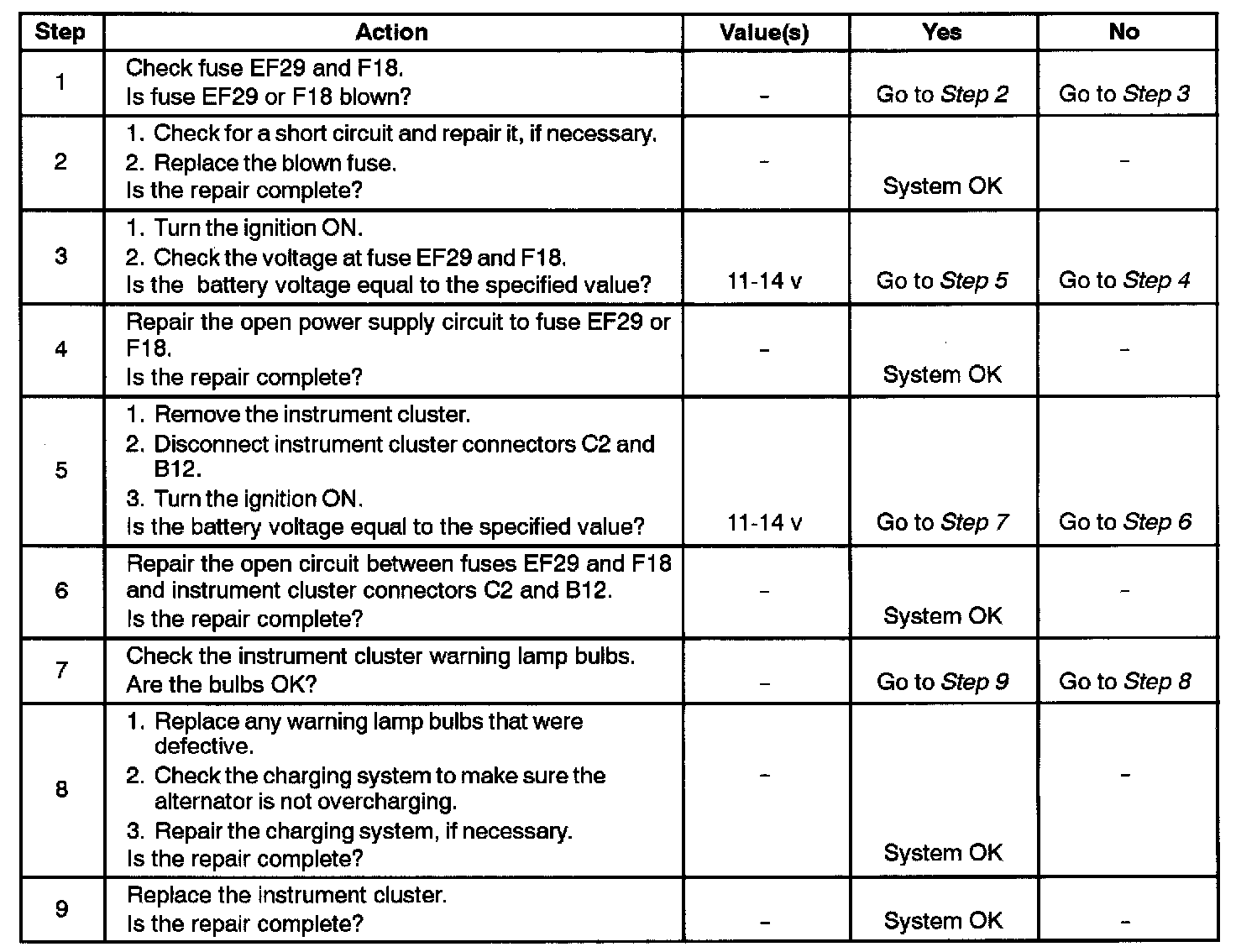

Step 1 - 9:

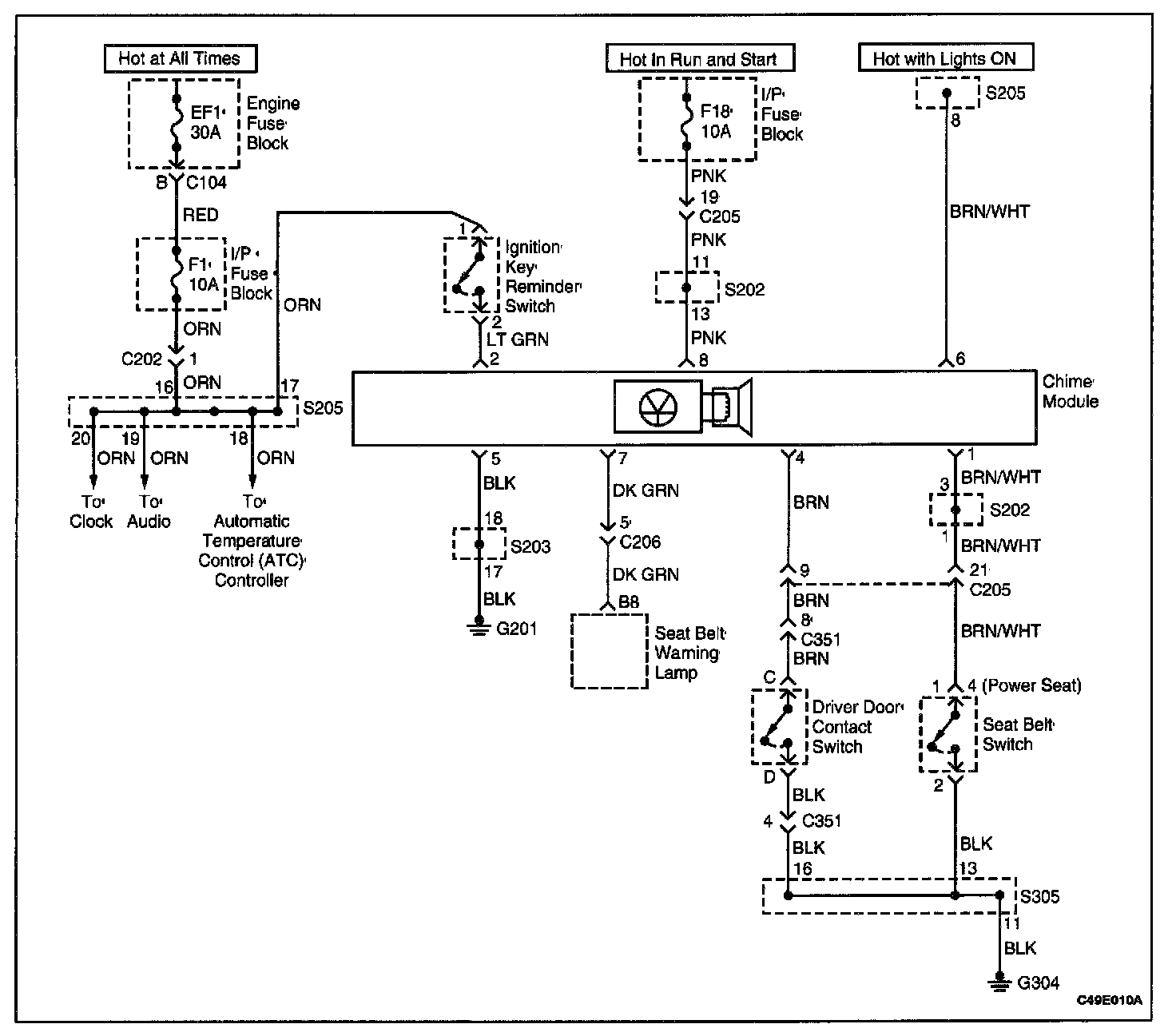

Wiring Diagram:
