Connector Views With Terminal Locations

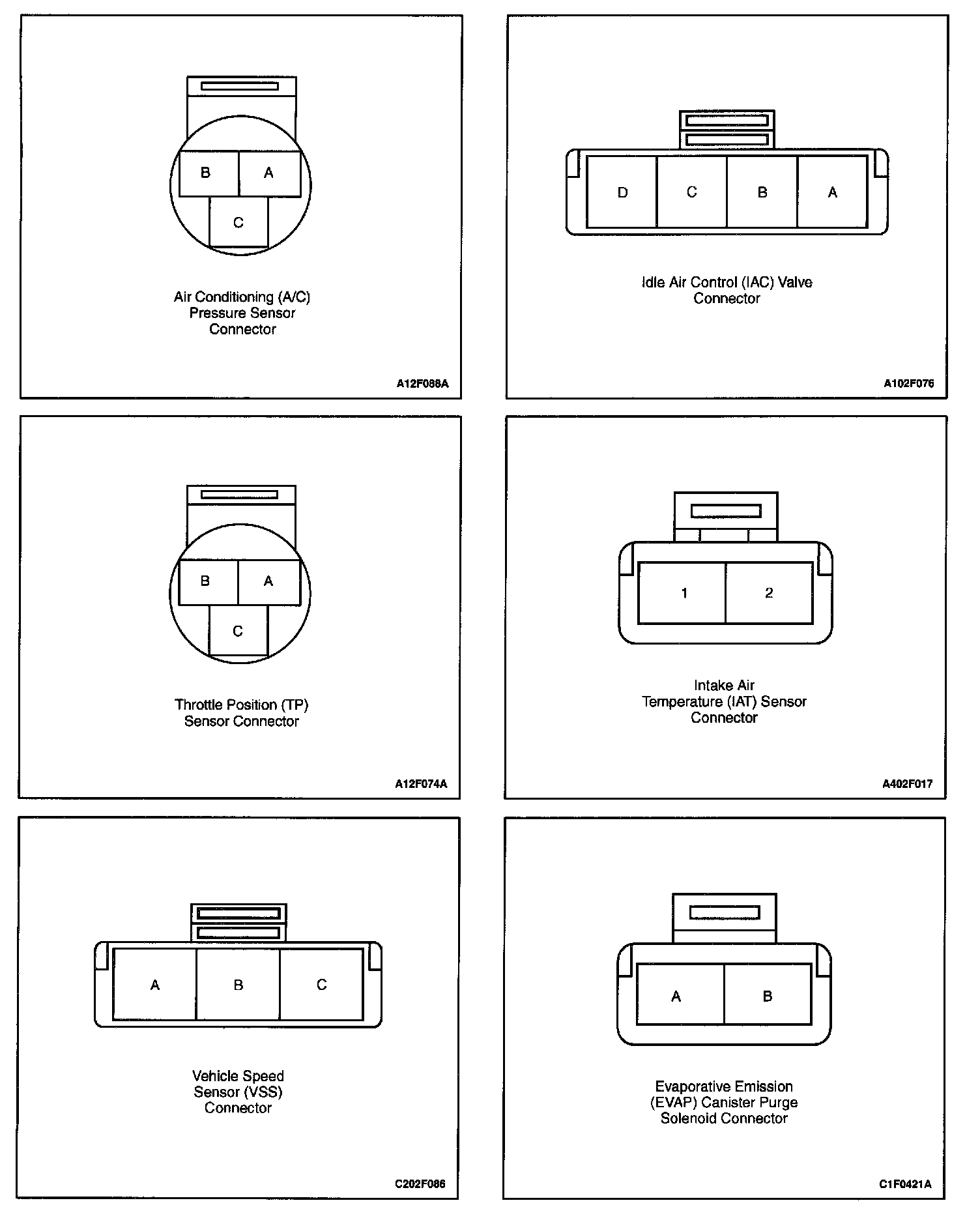

Connector End View (Part 1):

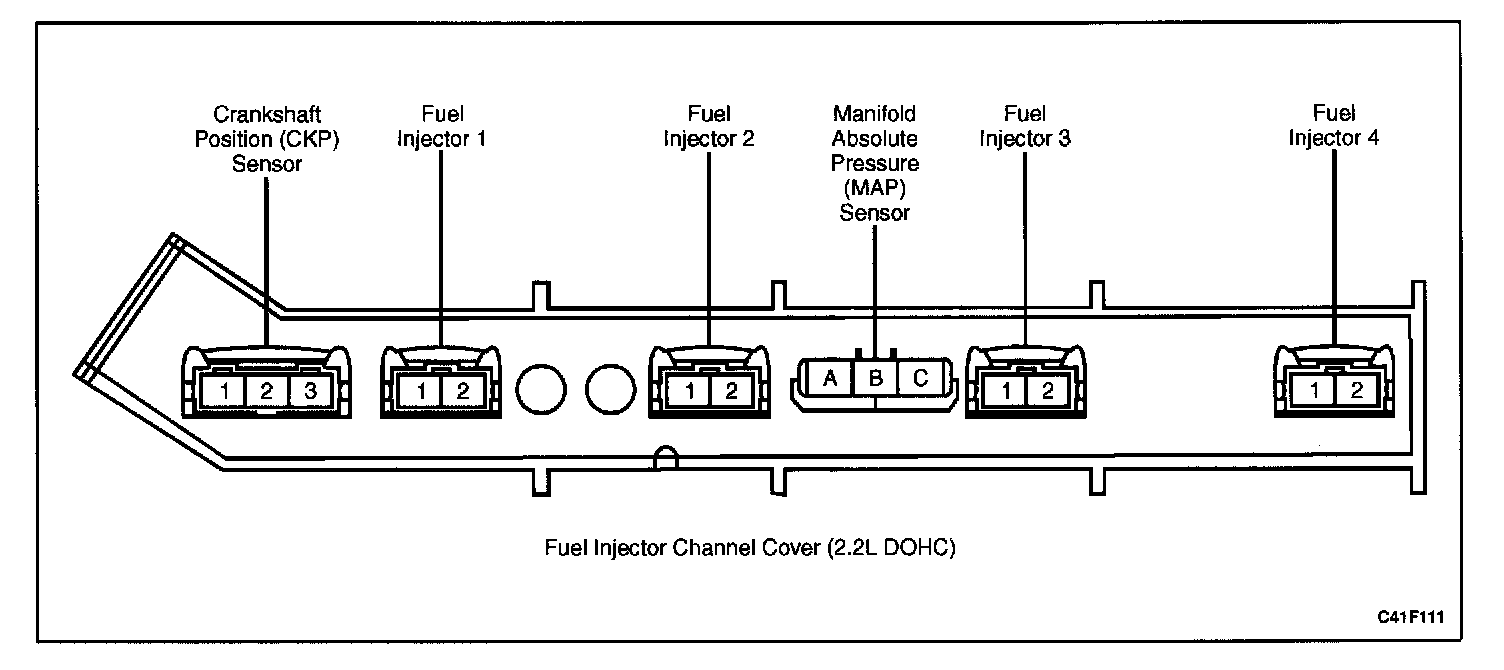

Connector End View (Part 2):

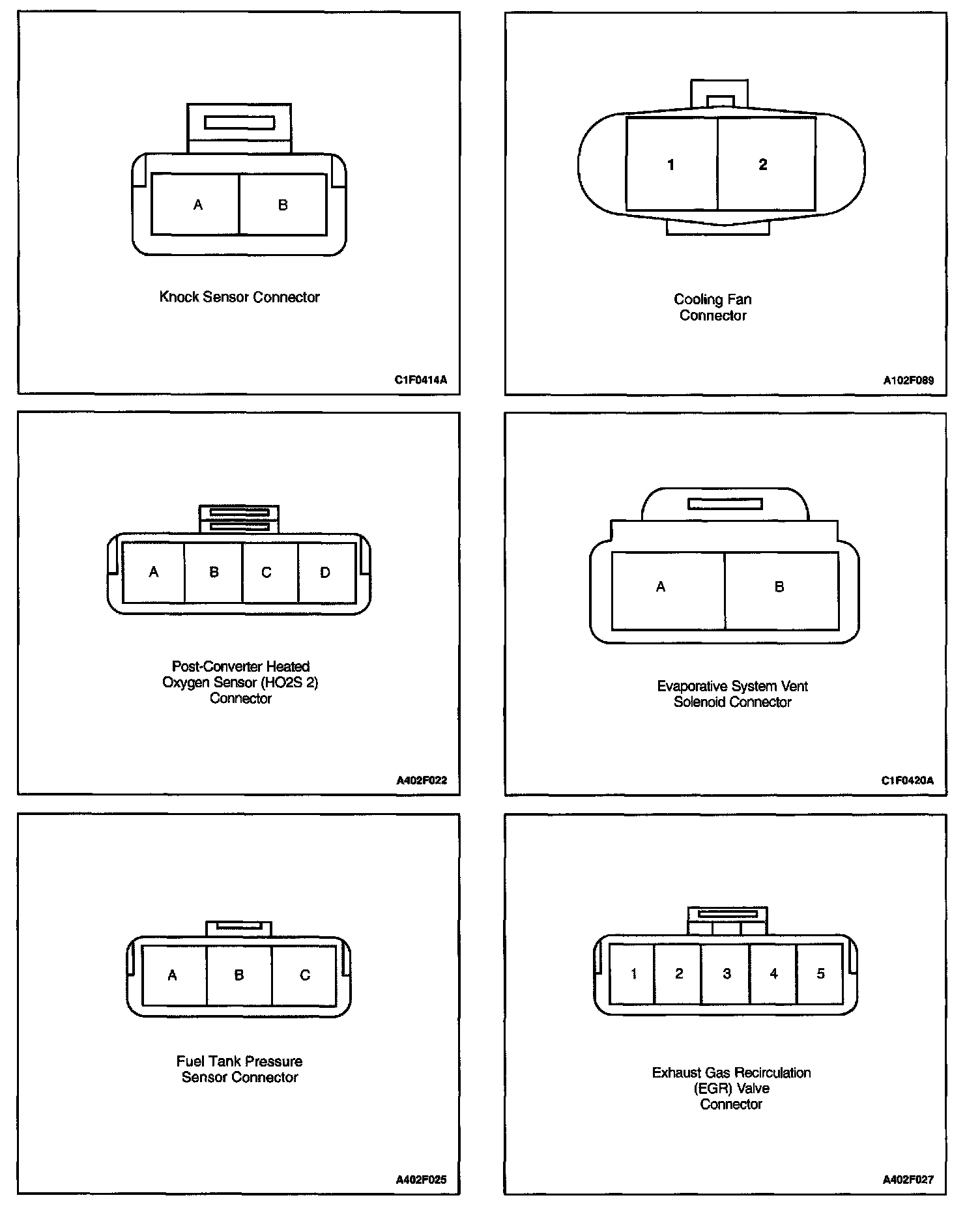

Connector End View (Part 3):

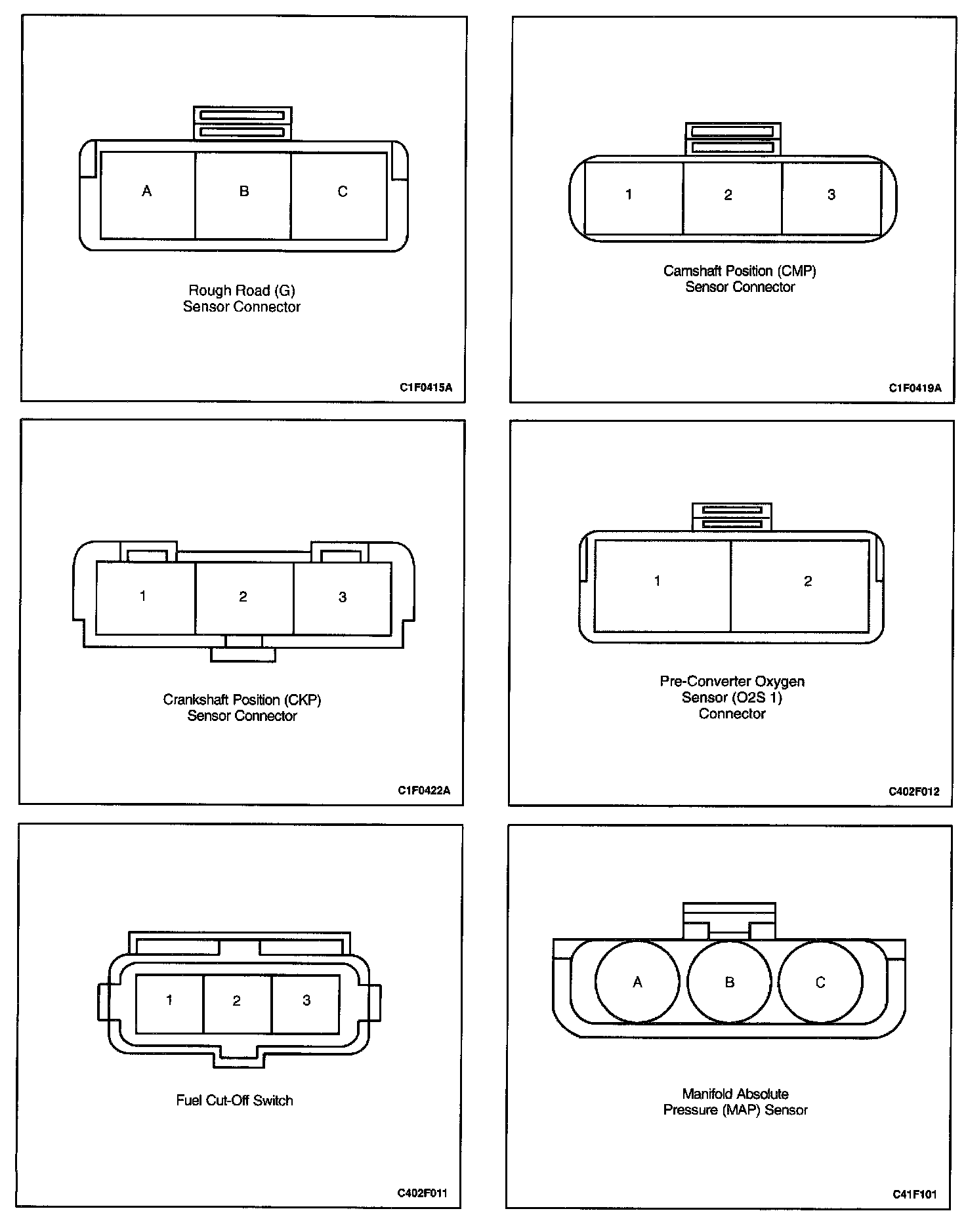

Connector End View (Part 4):
Connector End View (Part 5):
