Electrical Diagrams

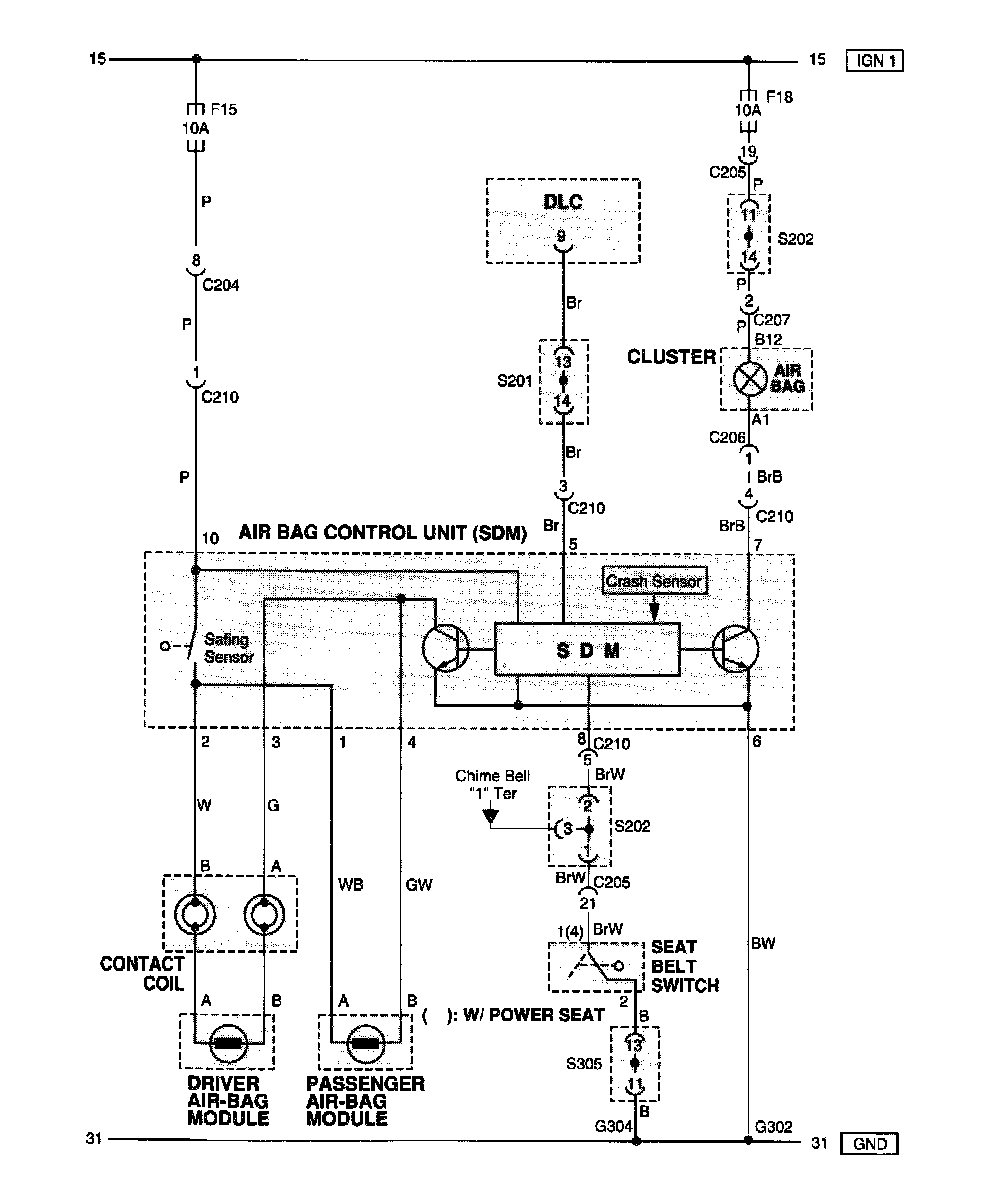

Wiring Diagram:

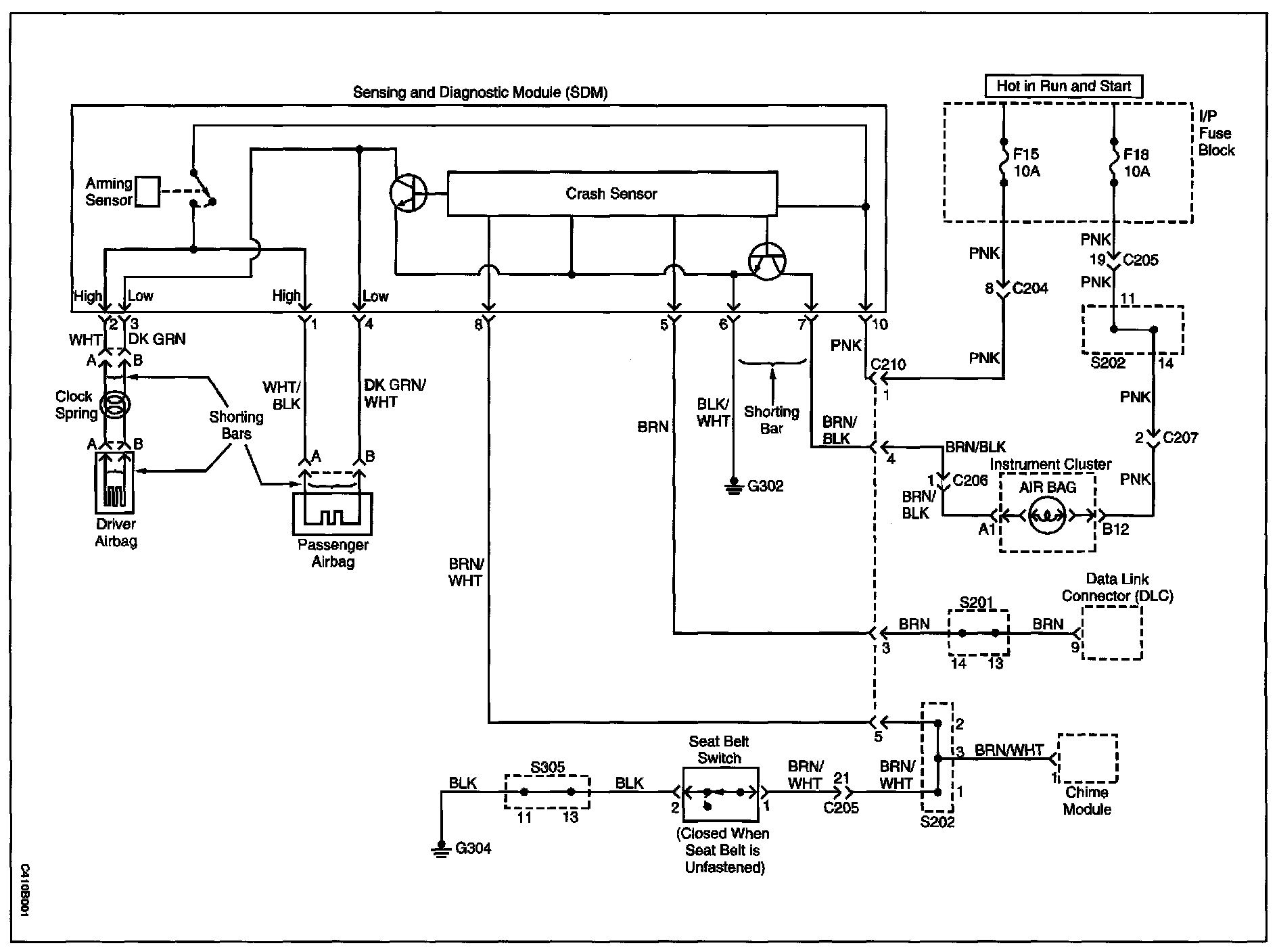

Schematic And Routing Diagrams - Supplemental Inflatable Restraint System:
