Exploded Views
OIL PUMP, SECOND COAST AND SECOND BRAKE ASSEMBLY

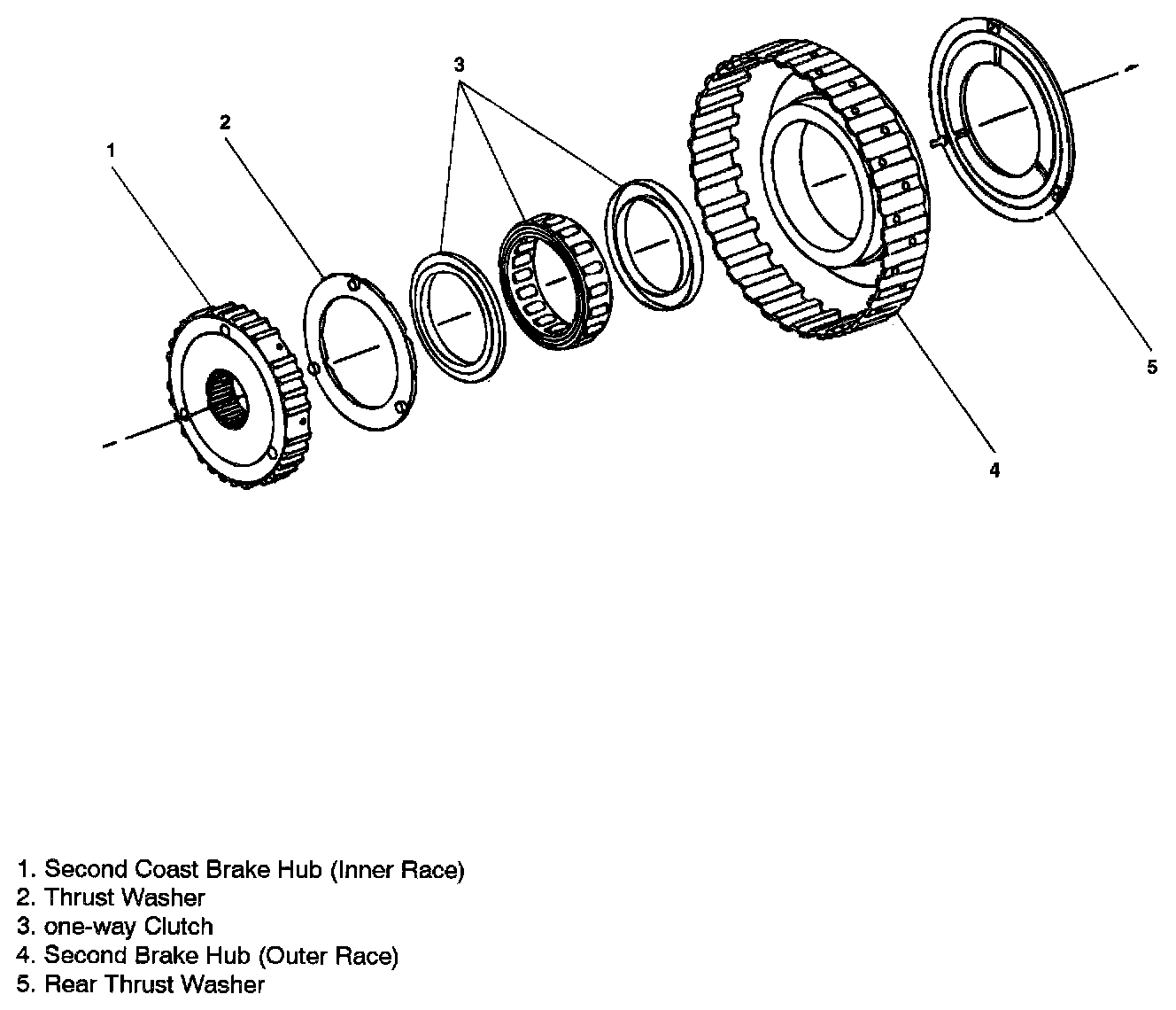

SECOND COAST, SECOND BRAKE HUB AND ONE-WAY CLUTCH
FORWARD AND DIRECT CLUTCH
PLANETARY GEAR AND PLANETARY SUN GEAR

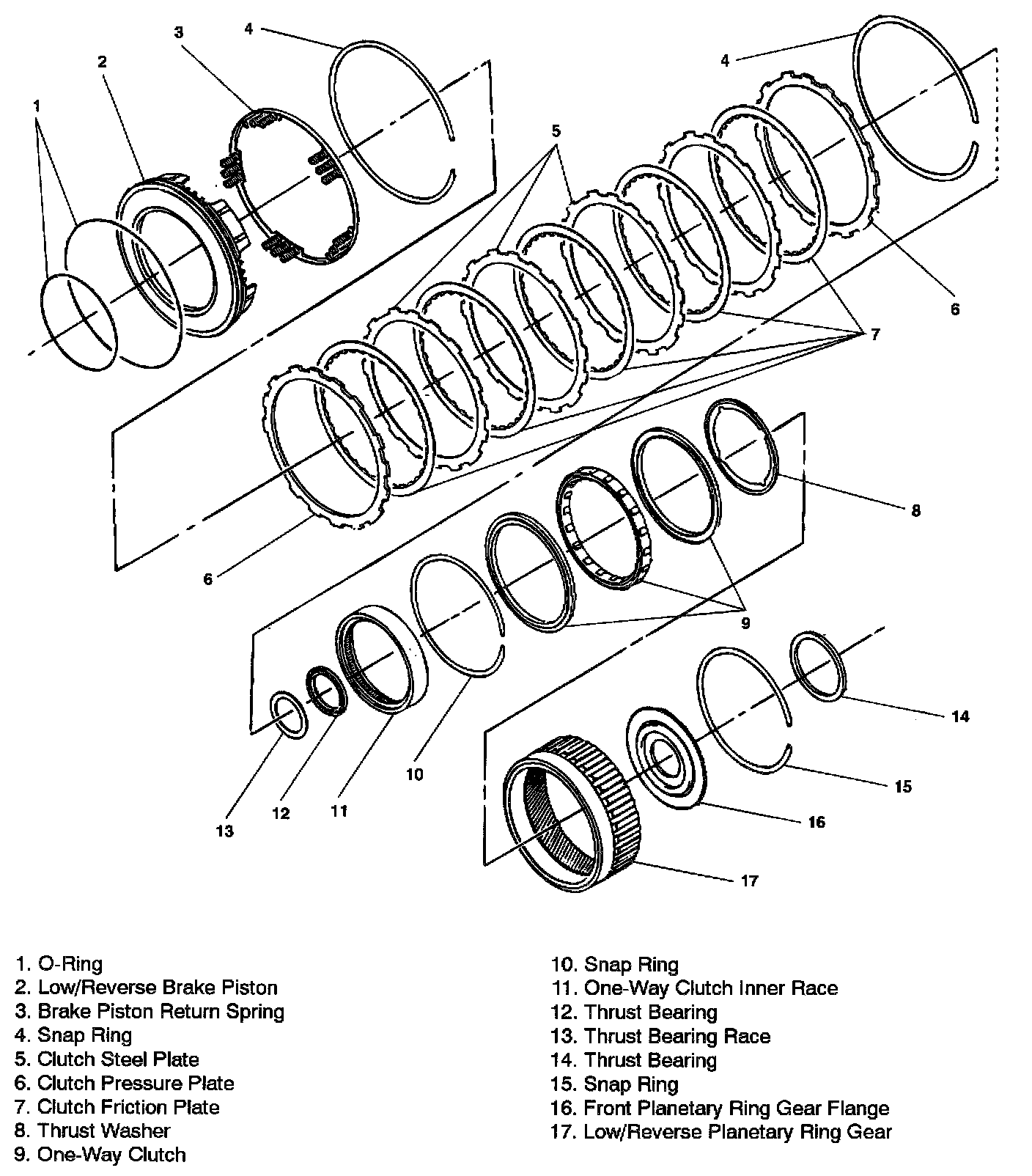

LOW/REVERSE BRAKE CLUTCH PISTON ASSEMBLY, FRONT PLANETARY RING GEAR AND ONE-WAY CLUTCH
UNDERDRIVE CLUTCH

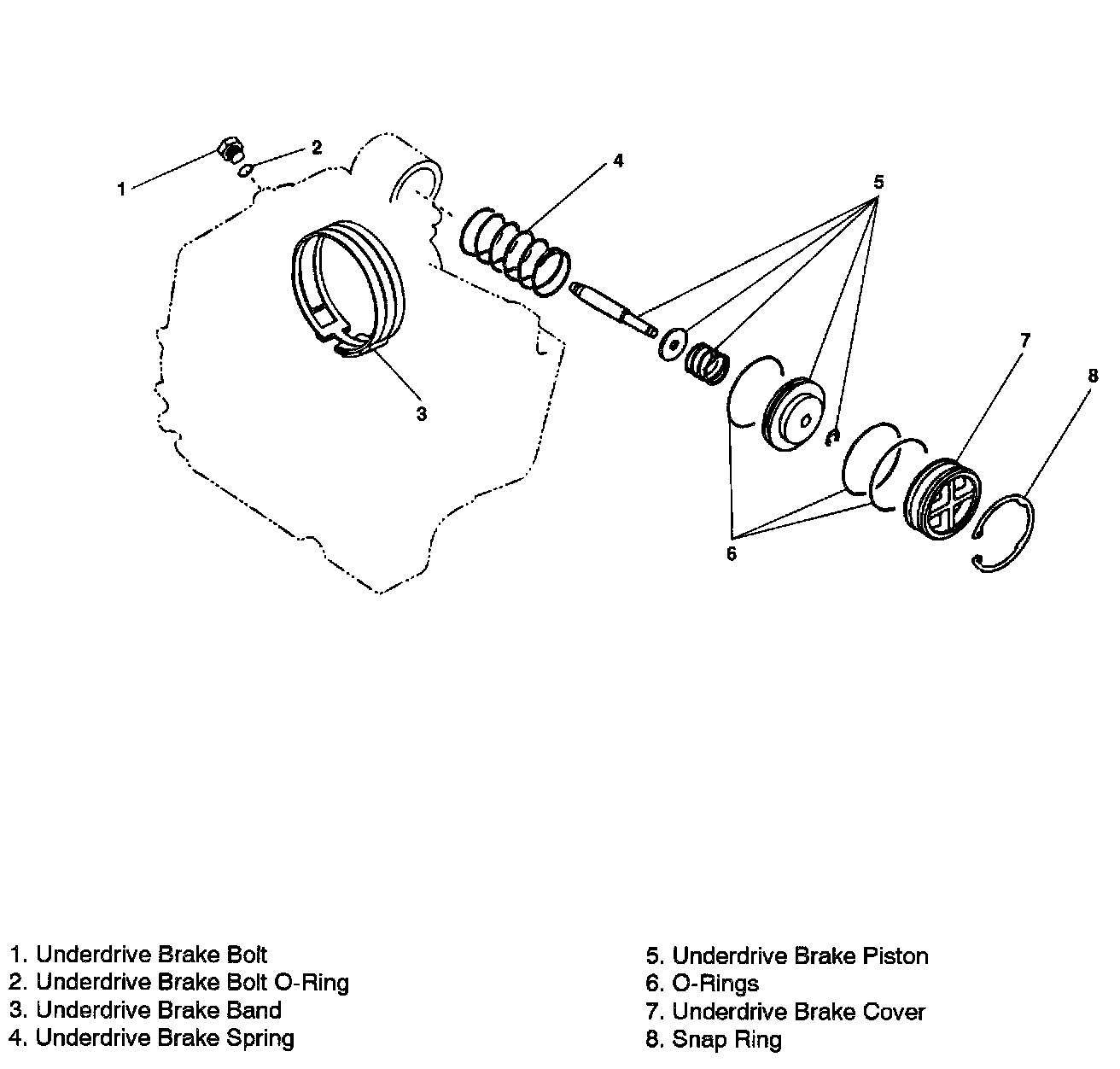

UNDERDRIVE BRAKE
COUNTER DRIVE GEAR

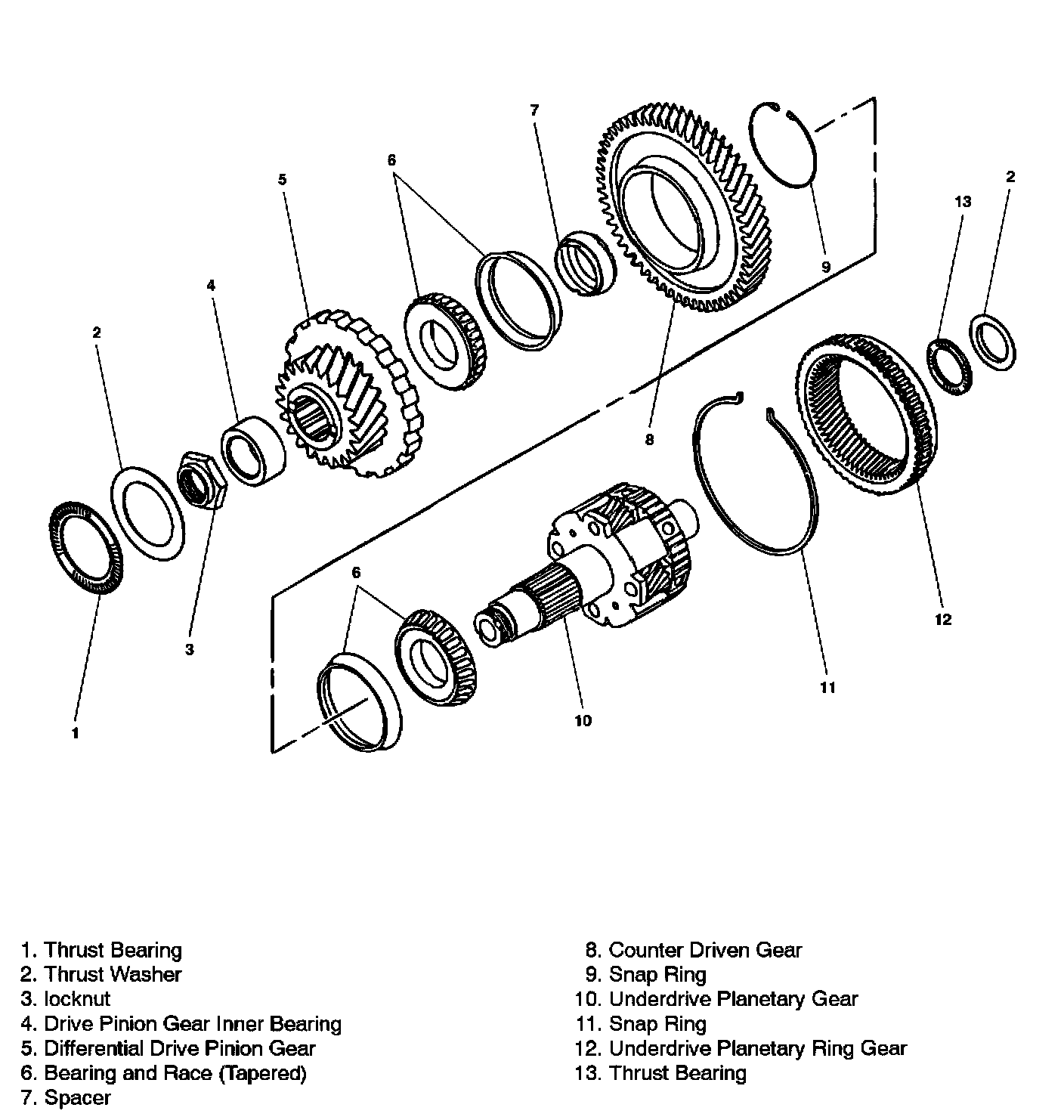

UNDERDRIVE PLANETARY GEAR AND DIFFERENTIAL DRIVE PINION GEAR
TRANSAXLE REAR CASE AND C-1 ACCUMULATOR PISTON

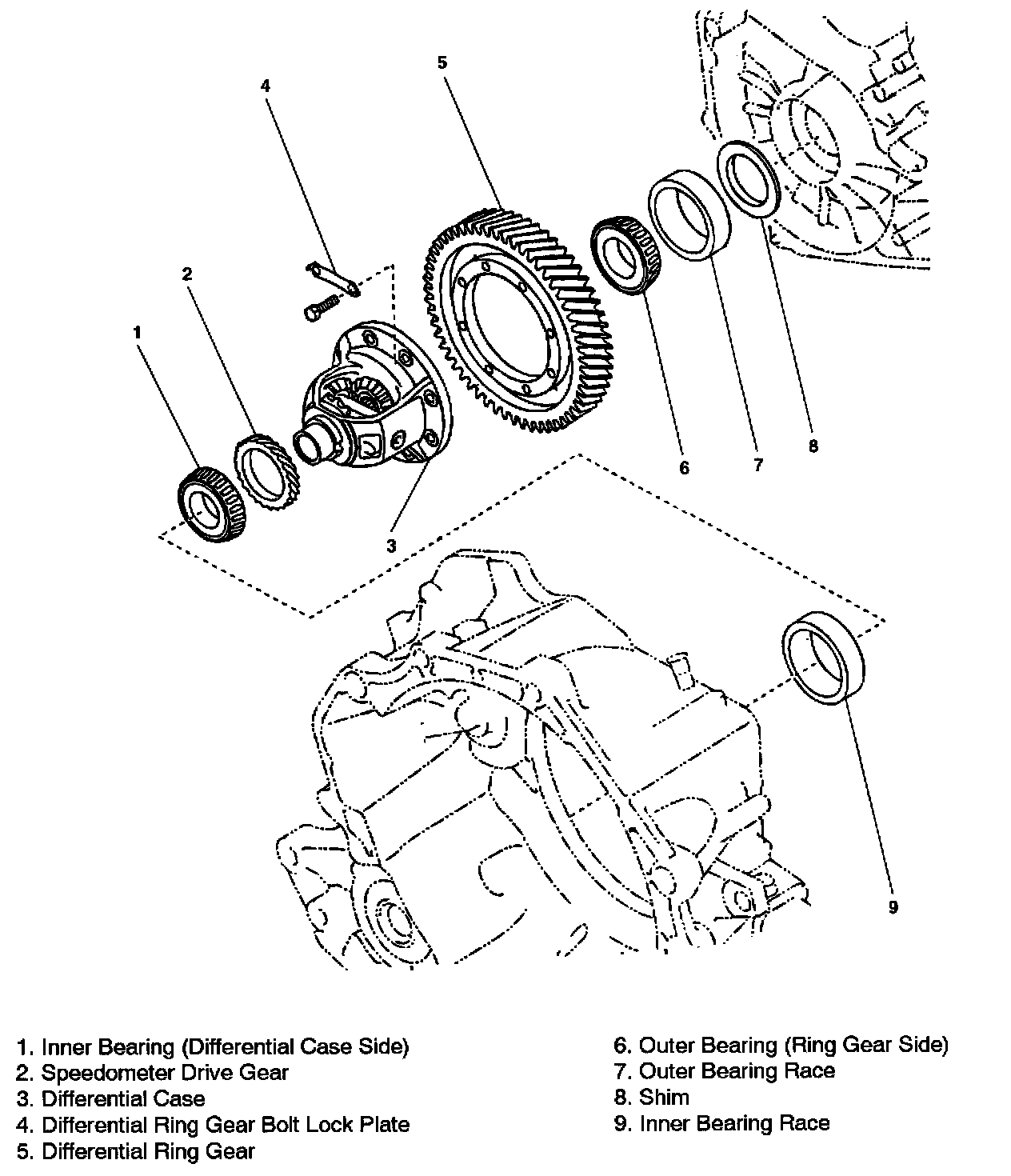

DIFFERENTIAL
VALVE BODY ASSEMBLY

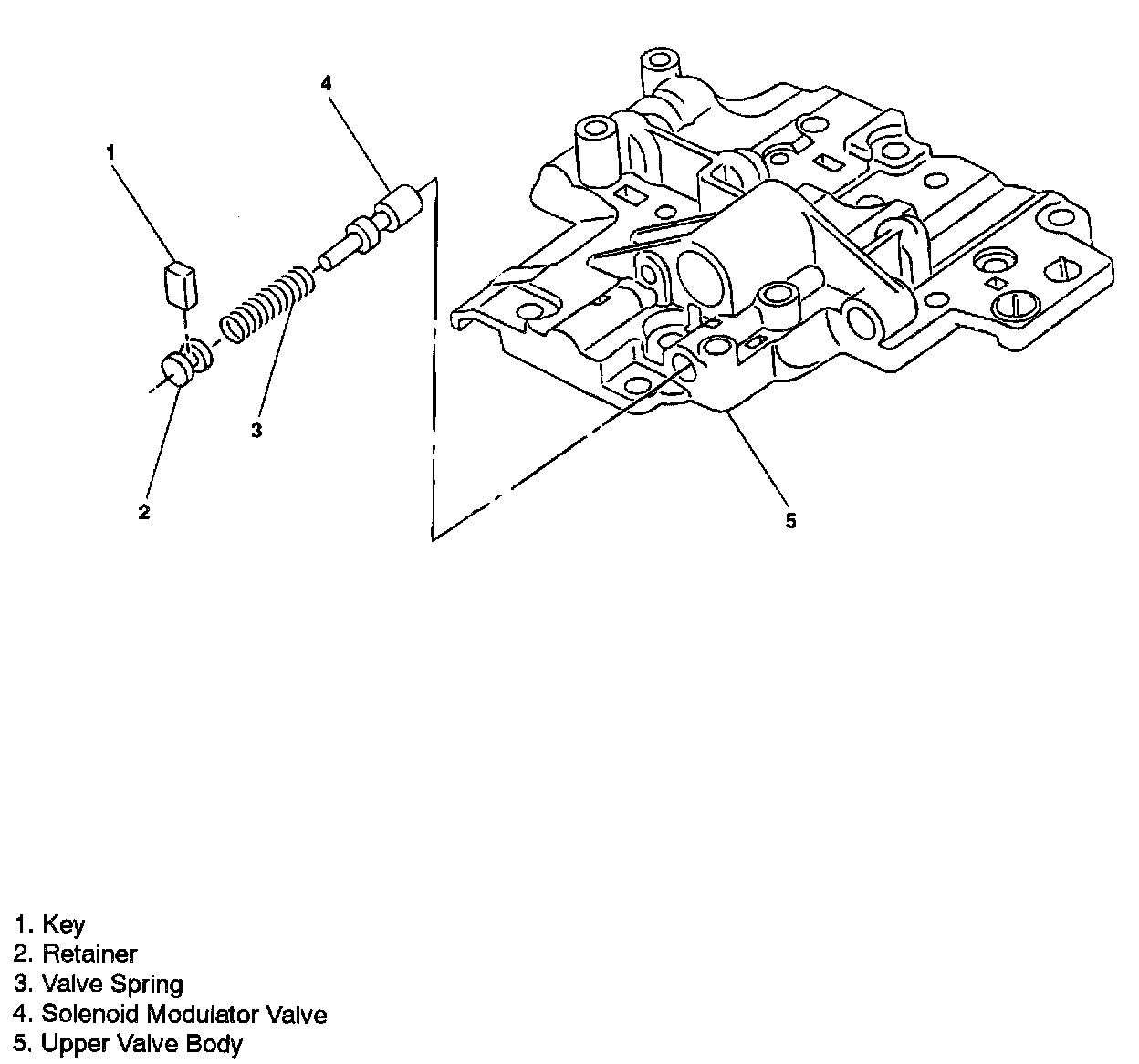

UPPER VALVE BODY

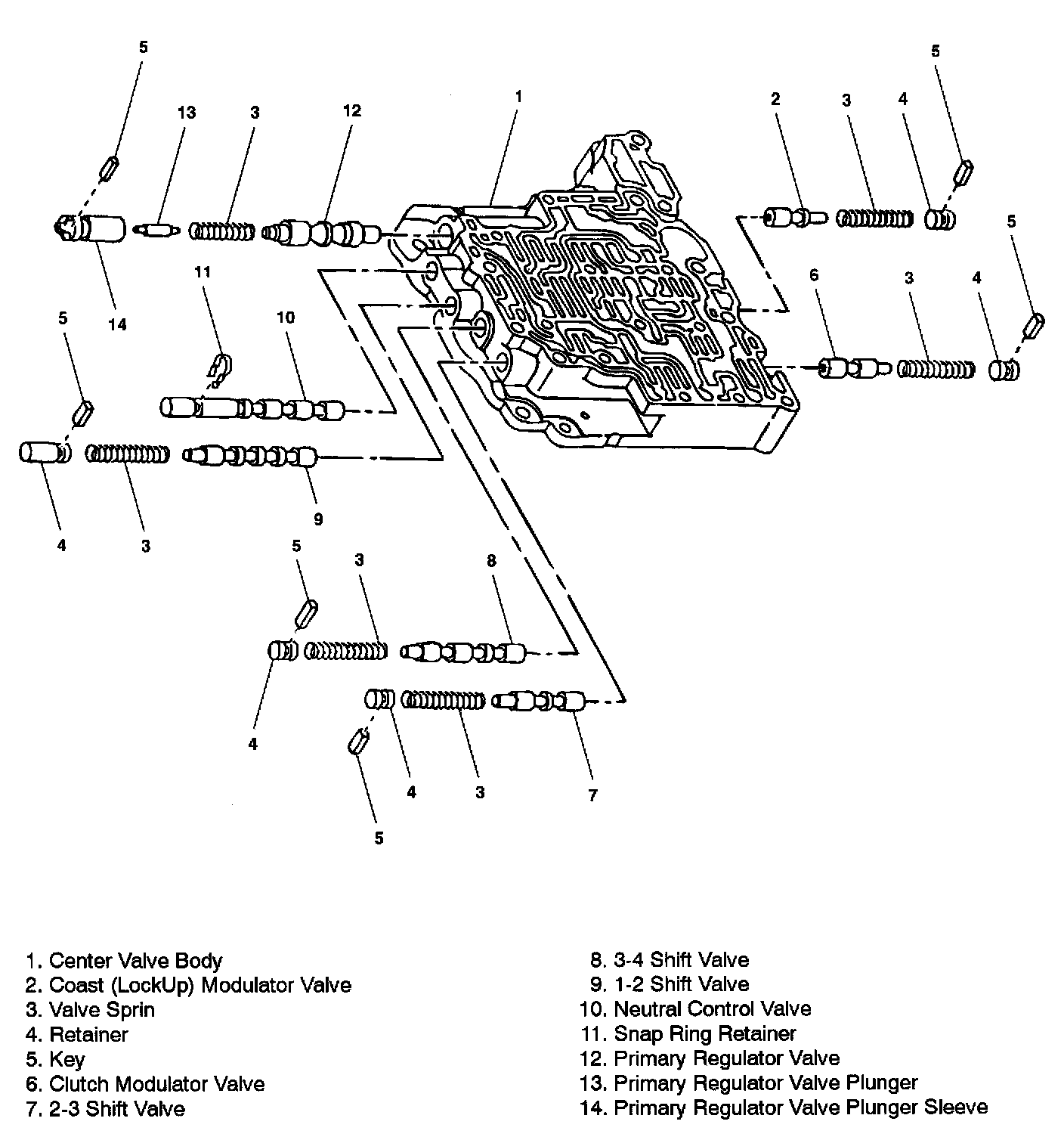

CENTER VALVE BODY
LOWER VALVE BODY
