Motor(Intake,Mode,Heater/Defroster,Blower)&Power TR Circ
Motor(Intake,Mode,Heater/Defroster,Blower)&Power TR Circ
Connector Identification Symbol & Pin Number Position:

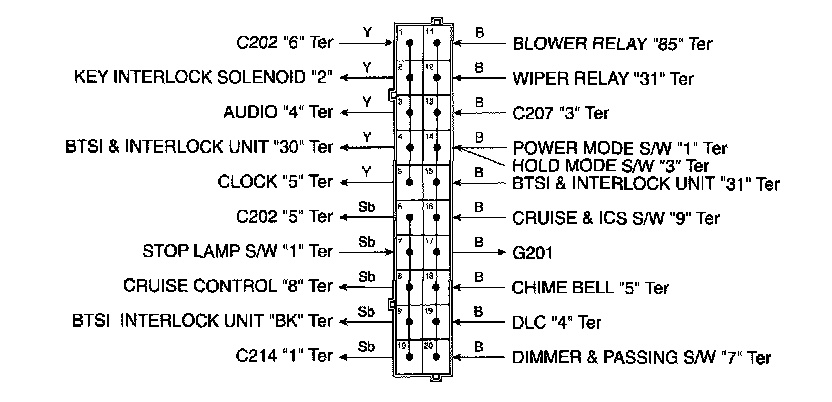

Splice Pack S203 (White):
Splice Pack S204 (Red):
