Battery Power Supply, Ground, EI & CMP Sensor Circuits
Battery Power Supply, Ground, EI & CMP Sensor Circuits

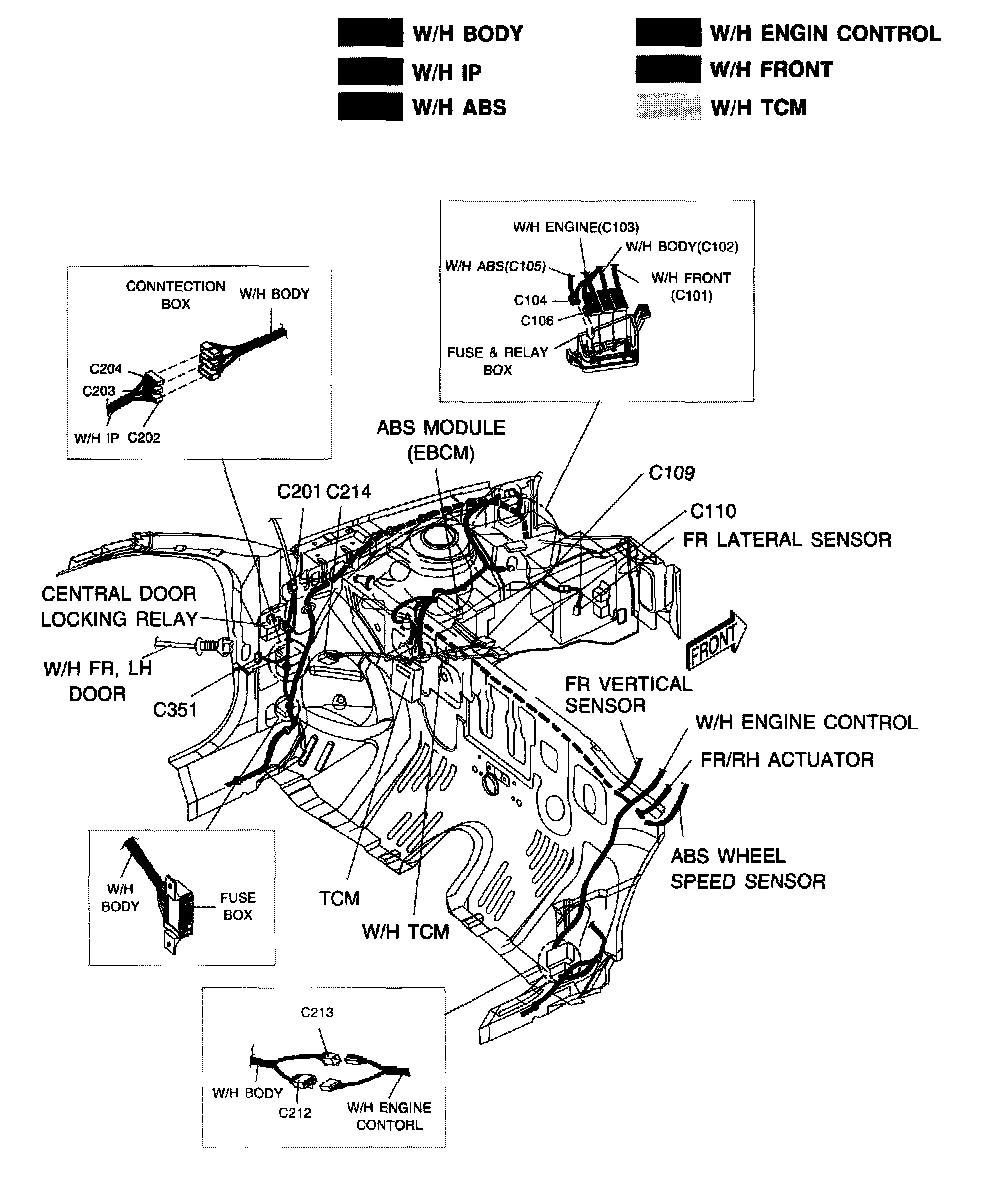

Position Of Connectors And Ground (W/H Body, ABS & TCM):

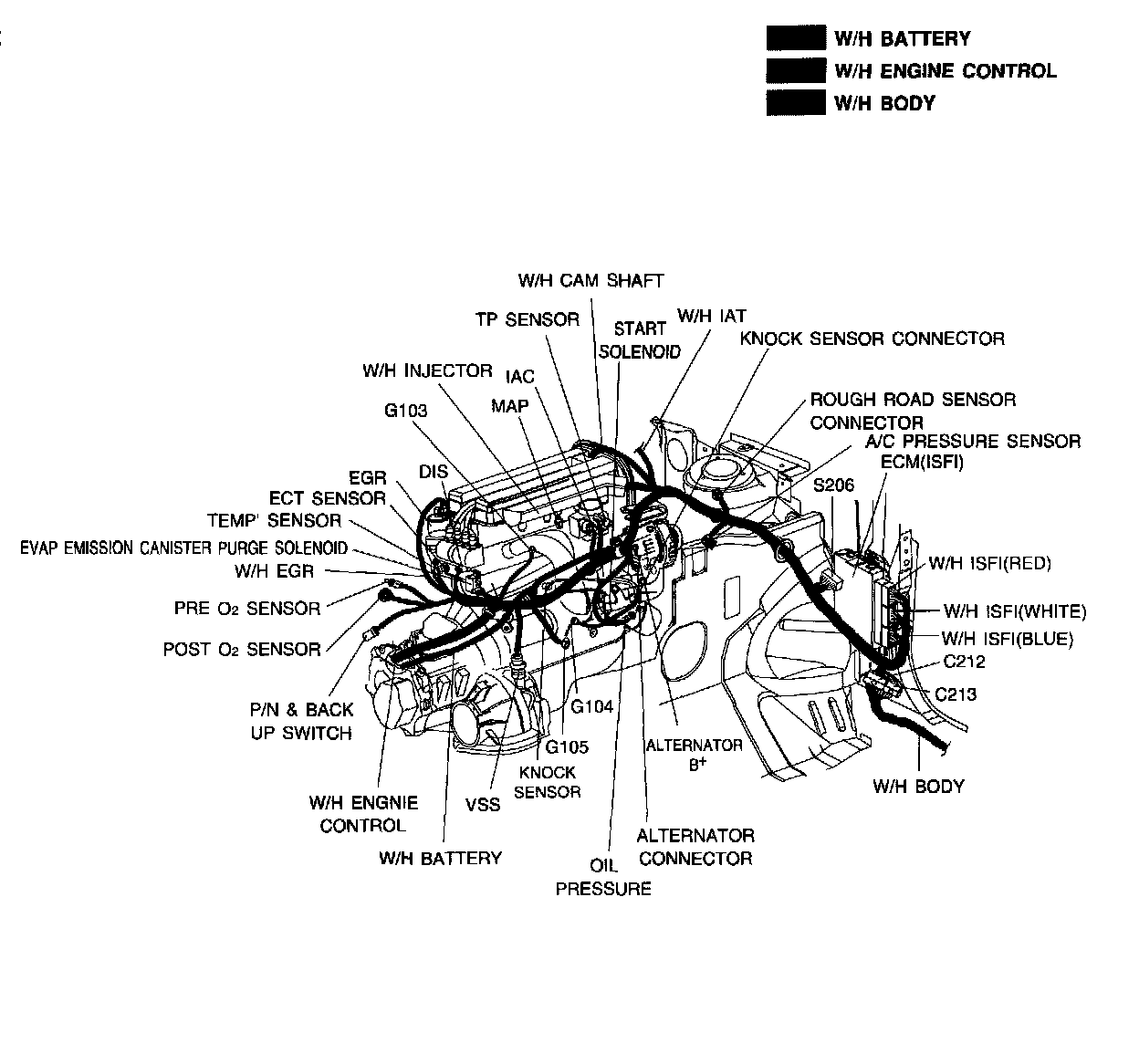

Position Of Connectors And Grounds (W/H Engine Control - 2.0 DOHC):
