Code 2 - Ambient Air Temperature Sensor Error

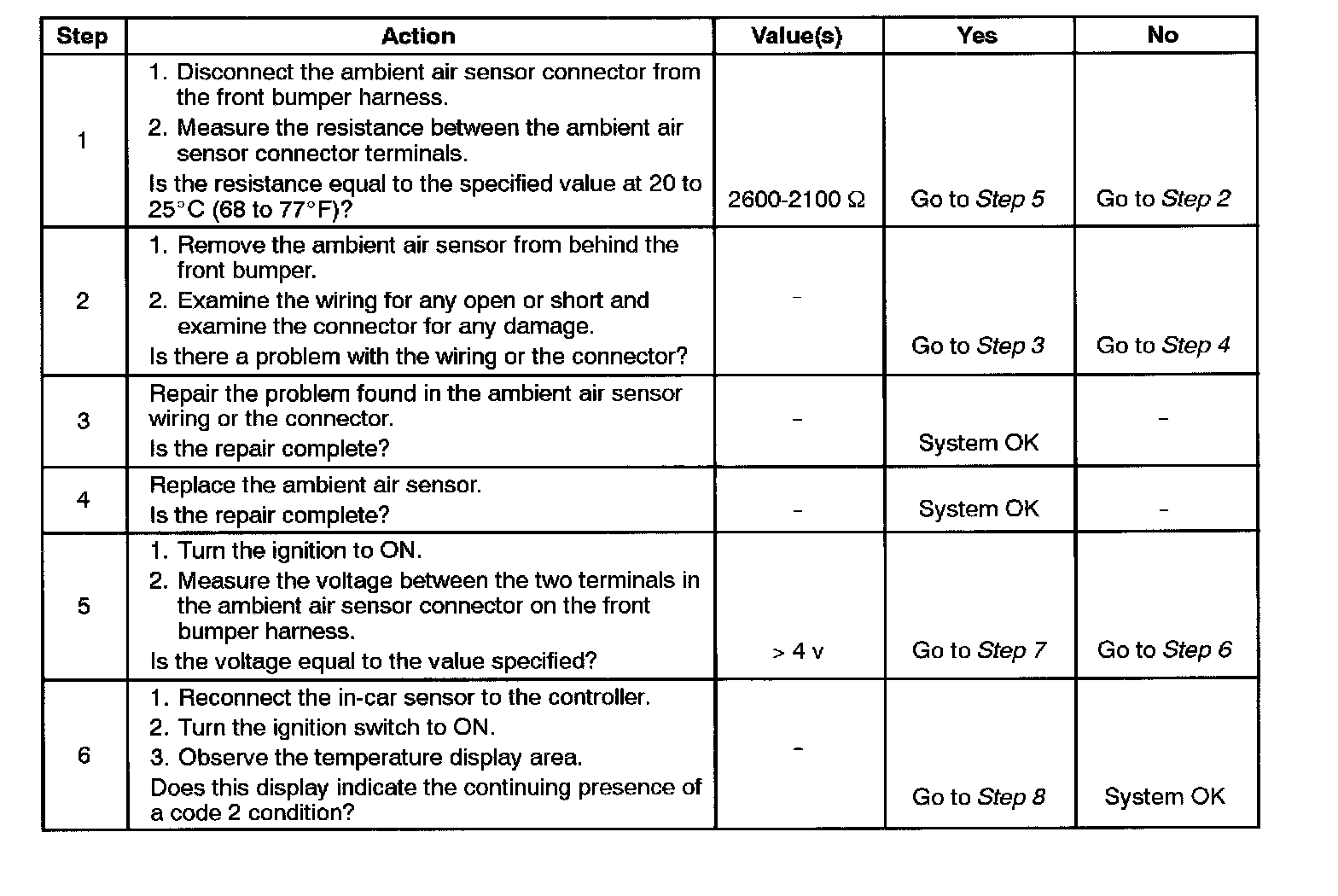

Step 1 - 6:

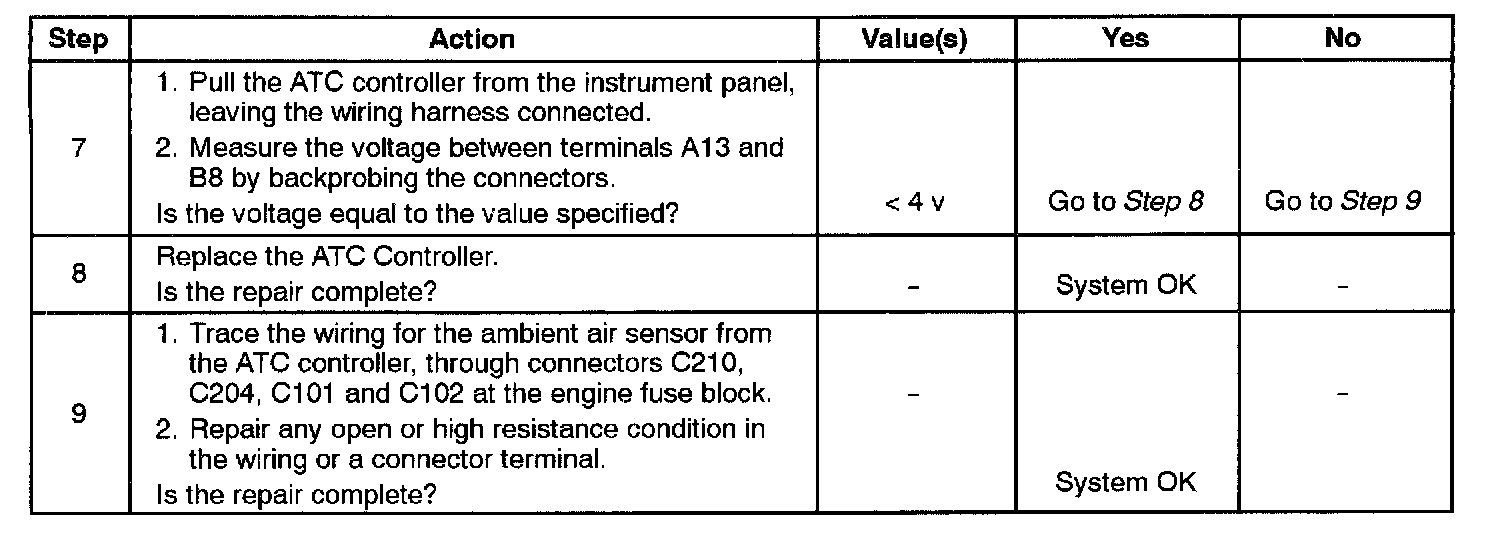

Step 7 - 9:




This code will set if the output of the ambient air temperature sensor indicates a probable short circuit or an open in the sensor or the associated wiring harness, or a malfunction of the ATC controller.
