Harness Locations

Position Of Connectors And Grounds - Left "A" Pillar Inside:

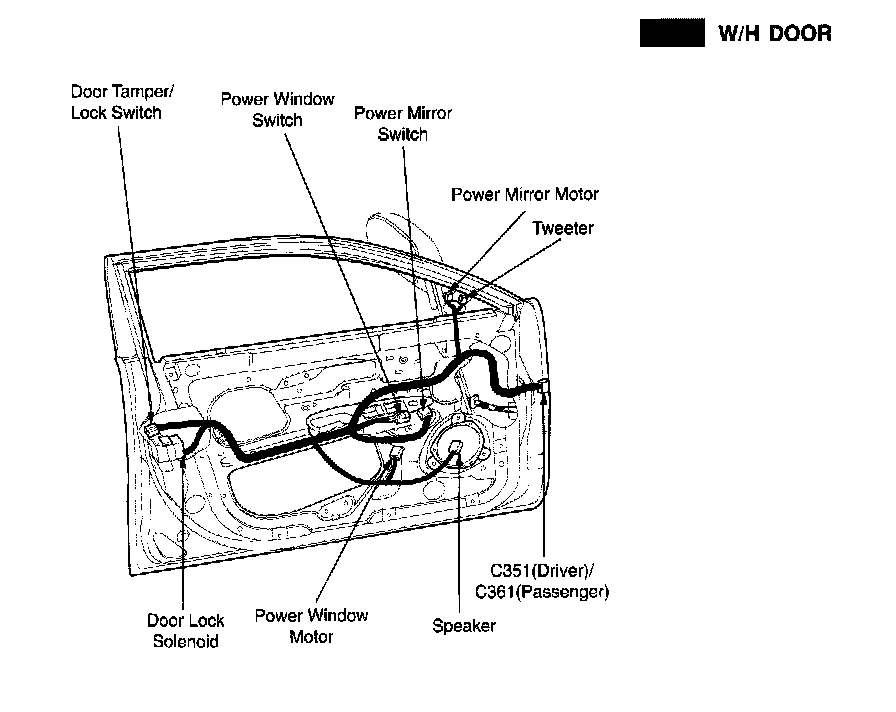

Position Of Connectors And Grounds - Front Door:
