Door Locks: Service and Repair

Inside Lock Rod

Removal Procedure




1. Remove the door seal trim. Refer to "Door Seal Trim".

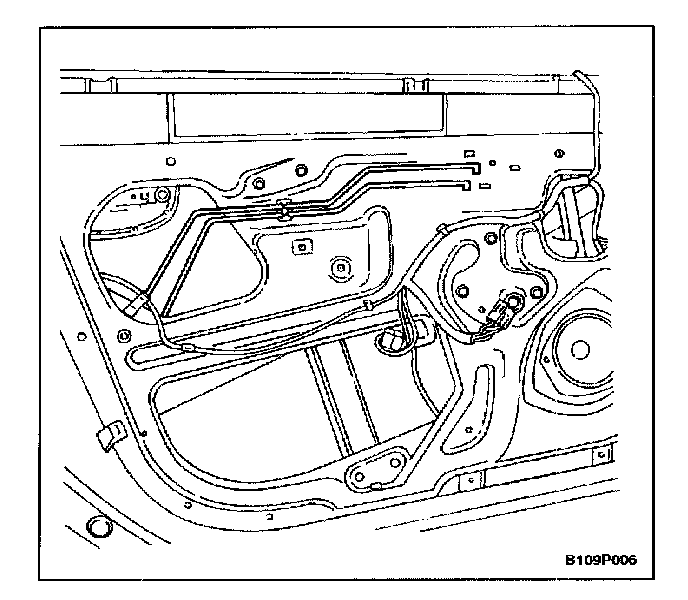

2. Disconnect the inside lock rods from the door handle and the lock.

Installation Procedure




1. Connect the inside lock rods to the door handle and the look.
2. Install the door seal trim. Refer to "Door Inside Trim".
