Power Locks
Power Locks
Connector Identification Symbol & Pin Number Position:

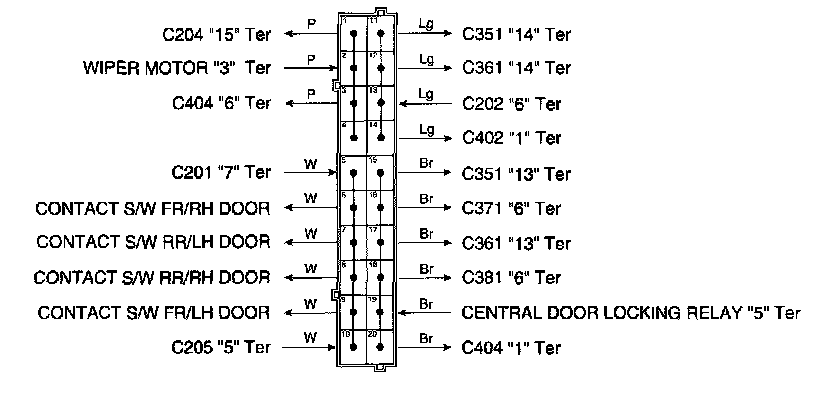

Splice Pack - S301 (Blue) - S/W:

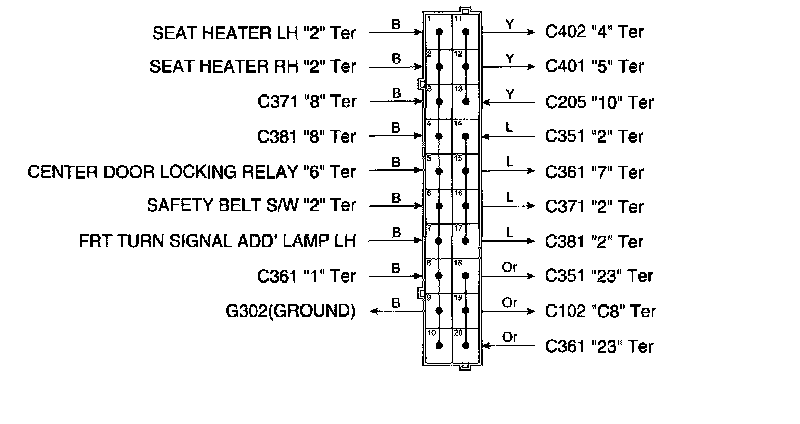

Splice Pack - S302 (Black) - S/W:
Splice Pack - S303 (Black) - S/W:
